Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EZP-V60256MTTCAP FILM 25UF 10% 600V RADIAL |
393 | - |
|
Datasheet | Radial - 4 Leads | 25 µF | ±10% | - | 600V | Polypropylene (PP), Metallized | 8.6 mOhms | -40°C ~ 105°C | Through Hole | 1.614" L x 0.866" W (41.00mm x 22.00mm) | 1.457" (37.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|

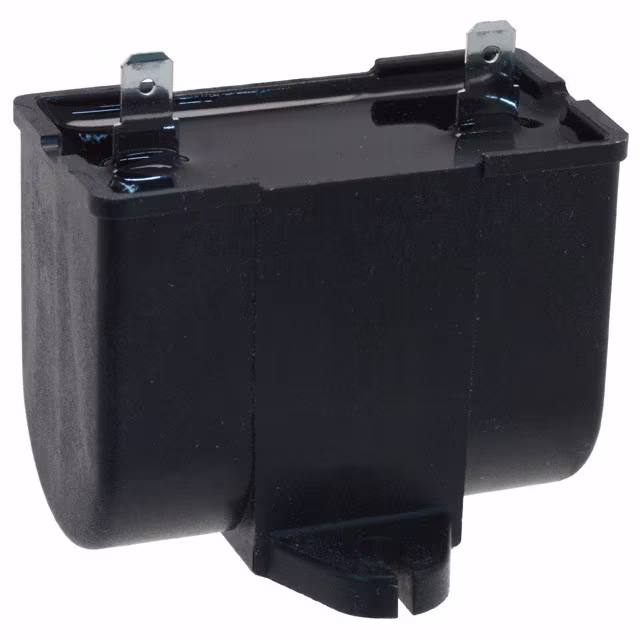

JS251126-BACAP FILM 12UF 10% 250VAC CHAS MT |
194 | - |
|
Datasheet | Rectangular Box | 12 µF | ±10% | 250V | - | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis Mount | 1.969" L x 1.051" W (50.00mm x 26.70mm) | 1.516" (38.50mm) | Quick Connect - 0.187" (4.7mm) | - | Motor Run | - | - |
|
|
EZP-V1B106MTTCAP FILM 10UF 10% 1100V RADIAL |
102 | - |
|
Datasheet | Radial - 4 Leads | 10 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 12.7 mOhms | -40°C ~ 105°C | Through Hole | 1.634" L x 0.925" W (41.50mm x 23.50mm) | 1.752" (44.50mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|
DS441405-BACAP FILM 4UF 10% 440VAC CHAS MT |
146 | - |
|
Datasheet | Rectangular Box | 4 µF | ±10% | 440V | - | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis Mount | 1.957" L x 0.945" W (49.70mm x 24.00mm) | 1.378" (35.00mm) | Quick Connect - 0.187" (4.7mm) | - | Motor Run | - | - |
|
EZP-Q38805LTDCAP FILM 8UF 5% 380VAC RADIAL |
212 | - |
|
Datasheet | Radial | 8 µF | ±5% | 380V | - | Polypropylene (PP), Metallized | 11.9 mOhms | -40°C ~ 105°C | Through Hole | 1.634" L x 1.083" W (41.50mm x 27.50mm) | 1.693" (43.00mm) | PC Pins | 1.476" (37.50mm) | General Purpose | - | Long Life, Low ESR |
|
|
EZP-V80156MTTCAP FILM 15UF 10% 800V RADIAL |
184 | - |
|
Datasheet | Radial - 4 Leads | 15 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 10.2 mOhms | -40°C ~ 105°C | Through Hole | 1.614" L x 0.866" W (41.00mm x 22.00mm) | 1.457" (37.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|
EZP-Q33256MTBCAP FILM 25UF 5% 330VAC RADIAL |
135 | - |
|
Datasheet | Radial - 4 Leads | 25 µF | ±5% | 330V | - | Polypropylene (PP), Metallized | 7 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.575" W (57.50mm x 40.00mm) | 2.047" (52.00mm) | PC Pins | 2.067" (52.50mm) | General Purpose | - | Long Life, Low ESR |
|
|
EZP-V60406MTTCAP FILM 40UF 10% 600V RADIAL |
180 | - |
|
Datasheet | Radial - 4 Leads | 40 µF | ±10% | - | 600V | Polypropylene (PP), Metallized | 6.5 mOhms | -40°C ~ 105°C | Through Hole | 1.634" L x 1.083" W (41.50mm x 27.50mm) | 1.693" (43.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|
EZP-E50606MTACAP FILM 60UF 10% 500VDC RADIAL |
201 | - |
|
Datasheet | Radial - 4 Leads | 60 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 3.9 mOhms | -40°C ~ 85°C | Through Hole | 1.634" L x 1.181" W (41.50mm x 30.00mm) | 2.028" (51.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Low ESR |
|
|
EZP-V80306MTTCAP FILM 30UF 10% 800V RADIAL |
103 | - |
|
Datasheet | Radial - 4 Leads | 30 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 7.1 mOhms | -40°C ~ 105°C | Through Hole | 1.614" L x 1.181" W (41.00mm x 30.00mm) | 2.028" (51.50mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
