Film Capacitors
Browse available Film Capacitors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BLC080J112B4ACAP FILM 8UF 5% 1.1KVDC RADIAL |
234 | - |
|
Datasheet | Radial - 4 Leads | 8 µF | ±5% | 230V | 1100V (1.1kV) | Polypropylene (PP), Metallized | 6.5 mOhms | -45°C ~ 85°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.575" (40.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | - |
|
B32676G4206K000CAP FILM 20UF 10% 450VDC RADIAL |
523 | - |
|
Datasheet | Radial | 20 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | AEC-Q200 | Long Life |
|
B32916A3475M000CAP FILM 4.7UF 20% 760VDC RADIAL |
685 | - |
|
Datasheet | Radial | 4.7 µF | ±20% | 330V | 760V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.555" (39.50mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X1 | - |
|
B32926A4475K000CAP FILM 4.7UF 10% 650VDC RADIAL |
150 | - |
|
Datasheet | Radial | 4.7 µF | ±10% | 350V | 650V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 1.654" L x 1.102" W (42.00mm x 28.00mm) | 1.457" (37.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X2 | 85C/85% Humidity |
|
B33331I6206J08020UF 450V S2 AL 35X75 VDE UL 2+2 |
702 | - |
|
Datasheet | Radial, Can | 20 µF | ±5% | 450V | - | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Chassis Mount | 1.378" Dia (35.00mm) | 3.031" (77.00mm) | Quick Connect - 0.250" (6.3mm) | - | Motor Run | - | - |
|
MKP1848C63090JP5CAP FILM 30UF 5% 900VDC RADIAL |
270 | - |
|
Datasheet | Radial - 4 Leads | 30 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 4 mOhms | 105°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 2.244" (57.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Low ESR; Low ESL; Long Life |
|
C4AQPBW5200M3MJCAP FILM 20UF 5% 1.2KVDC RADIAL |
104 | - |
|
Datasheet | Radial - 4 Leads | 20 µF | ±5% | - | 1200V (1.2kV) | Polypropylene (PP), Metallized | 6.3 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.783" (45.30mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
B33331V7306J080CAP FILM 30UF 5% 460VAC RADIAL |
146 | - |
|
Datasheet | Radial, Can | 30 µF | ±5% | 460V | - | Polypropylene (PP), Metallized | 10 mOhms | -40°C ~ 85°C | Chassis Mount | 1.969" Dia (50.00mm) | 3.425" (87.00mm) | Quick Connect - 0.250" (6.3mm) | - | General Purpose | - | - |
|
C878BF35150SA0JCAP FILM 15UF 5% 470VAC RADIAL |
22 | - |
|
Datasheet | Radial, Can | 15 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.575" Dia (40.00mm) | 3.150" (80.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
ALH406K251C084CAP FILM 40UF 250VAC RAD 4 LEAD |
314 | - |
|
Datasheet | Radial - 4 Leads | 40 µF | ±10% | 250V | - | Polypropylene (PP) | 5.2 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 2.008" (51.00mm) | PC Pins | 2.067" (52.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|
B32656S7474J565CAP FILM 0.47UF 5% 1.25KVDC SCRW |
256 | - |
|
Datasheet | Rectangular Box | 0.47 µF | ±5% | 500V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 8 mOhms | -55°C ~ 100°C | Chassis Mount | - | - | Screw Terminals | 0.866" (22.00mm) | Snubber | - | Low ESL |
|
BFC238350154CAP FILM 0.15UF 5% 1.6KVDC RAD |
1,415 | - |
|
Datasheet | Radial | 0.15 µF | ±5% | 550V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.709" W (31.00mm x 18.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
C4ASPBW3470A3GJCAP FILM 0.47UF 5% 1.2KVDC RAD |
132 | - |
|
Datasheet | Radial - 4 Leads | 0.47 µF | ±5% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 3.7 mOhms | -40°C ~ 85°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.457" (37.00mm) | PC Pins | 1.083" (27.50mm) | Snubber | - | - |
|
B32656S7105K561CAP FILM 1UF 10% 1.25KVDC SCREW |
739 | - |
|
Datasheet | Rectangular Box | 1 µF | ±10% | 500V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 100°C | Chassis Mount | 1.654" L x 1.102" W (42.00mm x 28.00mm) | 1.457" (37.00mm) | Screw Terminals | 1.102" (28.00mm) | Snubber | AEC-Q200 | Low ESL |
|

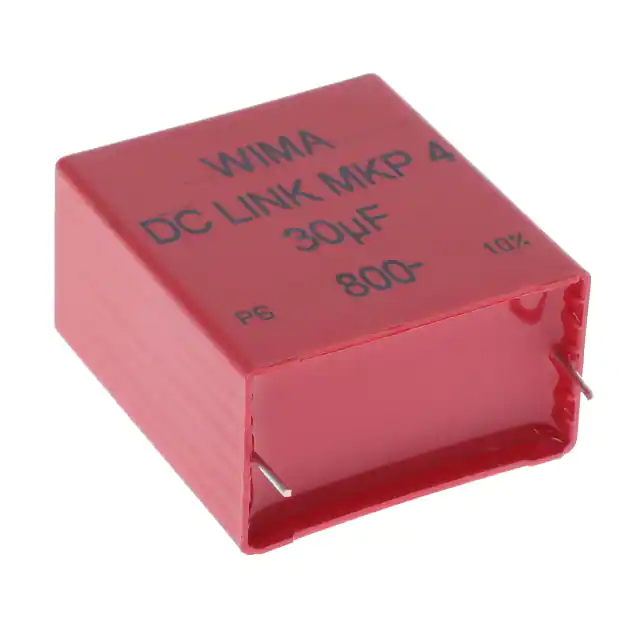

DCP4L053007HD2KSSDCAP FILM 30UF 10% 800VDC RAD |
1,202 | - |
|
Datasheet | Radial | 30 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 4.1 mOhms | -55°C ~ 105°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 1.791" (45.50mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
B32716H6506K000MKP DC FILTERING - 600VDC, 50UF |
257 | - |
|
Datasheet | Radial - 4 Leads | 50 µF | ±10% | - | 600V | Polypropylene (PP), Metallized | 2.4 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.299" W (42.00mm x 33.00mm) | 1.890" (48.00mm) | PC Pins | 1.476" (37.50mm) | Automotive | AEC-Q200 | Long Life |
|
B32776G8206K000CAP FILM 20UF 800VDC RAD 4 LEAD |
147 | - |
|
Datasheet | Radial - 4 Leads | 20 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 7.5 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.102" W (42.00mm x 28.00mm) | 1.457" (37.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
 Series.jpg "B32928C3256K000")
|
B32928C3256K000CAP FILM 25UF 10% 630VDC RADIAL |
709 | - |
|
Datasheet | Radial | 25 µF | ±10% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | EMI, RFI Suppression | X2 | - |
|
|
R586W433050T0KCAP FILM 600VAC(X1) 3.3 UF 10% |
108 | - |
|
Datasheet | Radial | 3.3 µF | ±10% | 600V | 1200V (1.2kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.783" (45.30mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
|
|
ALH206K251B104CAP FILM 20UF 250VAC RAD 4 LEAD |
137 | - |
|
Datasheet | Radial - 4 Leads | 20 µF | ±10% | 250V | - | Polypropylene (PP) | 4.8 mOhms | -40°C ~ 105°C | Through Hole | 1.673" L x 1.181" W (42.50mm x 30.00mm) | 1.803" (45.80mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
Film Capacitors FAQ
What Film Capacitors components can I source from EGOO?
You can browse available Film Capacitors product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Film Capacitors parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
