Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
405K100CS4G-FACAP FILM 4UF 10% 100VDC 6SMD |
193 | - |
|
Datasheet | 6-SMD, Gull Wing | 4 µF | ±10% | - | 100V | Polymer, Metallized | 7 mOhms | -55°C ~ 125°C | Surface Mount | 0.500" L x 0.449" W (12.70mm x 11.40mm) | 0.250" (6.35mm) | Gull Wing | 0.394" (10.00mm) | DC Link, DC Filtering; High Frequency, Switching | - | Low ESR, Low ESL |
|

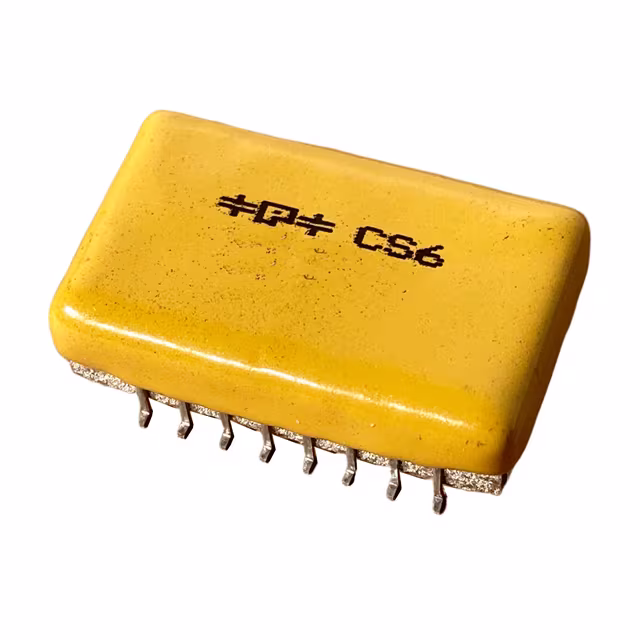

105K500CS6G-FACAP FILM 1UF 10% 500VDC 16SMD |
200 | - |
|
Datasheet | 16-SMD, Gull Wing | 1 µF | ±10% | - | 500V | Polymer, Metallized | 8 mOhms | -55°C ~ 125°C | Surface Mount | 1.134" L x 0.701" W (28.80mm x 17.80mm) | 0.319" (8.10mm) | Gull Wing | 0.591" (15.00mm) | DC Link, DC Filtering; High Frequency, Switching | - | Low ESR, Low ESL |
|

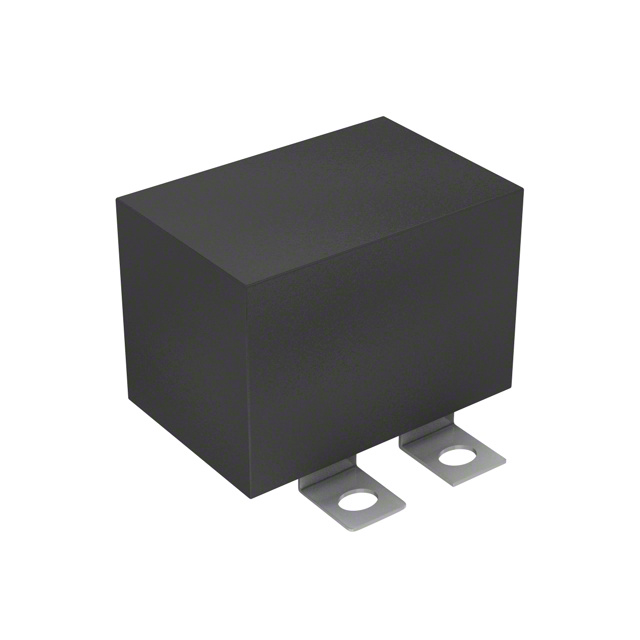

SCD205K162A3Z25-FCAP FILM 2UF 10% 1.6KVDC SCREW |
18 | - |
|
Datasheet | Rectangular Box | 2 µF | ±10% | 630V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 85°C | Chassis Mount | 2.626" L x 1.752" W (66.70mm x 44.50mm) | 1.827" (46.40mm) | Screw Terminals | 1.000" (25.40mm) | Snubber | - | - |
|
106K050CS4-FACAP FILM 10UF 10% 50VDC 10DIP |
15 | - |
|
Datasheet | 10-DIP | 10 µF | ±10% | - | 50V | Polymer, Metallized | 3 mOhms | -55°C ~ 125°C | Through Hole | 0.618" L x 0.500" W (15.70mm x 12.70mm) | 0.319" (8.10mm) | PC Pins | 0.394" (10.00mm) | DC Link, DC Filtering; High Frequency, Switching | - | Low ESR, Low ESL |
|
SCRN233R-FCAP FILM 1UF 10% 1KVPK RADIAL |
19 | - |
|
Datasheet | Radial, Can | 1 µF | ±10% | 1000Vpk (1KVPK) | - | Paper, Metallized | - | -40°C ~ 80°C | Chassis Mount, Requires Holder/Bracket | 2.160" L x 1.310" W (54.86mm x 33.27mm), Lip | 2.190" (55.63mm) | Threaded, Male | 0.810" (20.57mm) | Commutation; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
SCRN246R-FCAP FILM 0.25UF 10% 2KVPK RADIAL |
15 | - |
|
Datasheet | Radial, Can | 0.25 µF | ±10% | 2000Vpk (2KVPK) | - | Paper, Metallized | - | -40°C ~ 80°C | Chassis Mount, Requires Holder/Bracket | 2.160" L x 1.310" W (54.86mm x 33.27mm), Lip | 2.190" (55.63mm) | Threaded, Male | 0.810" (20.57mm) | Commutation; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
944U221K801ACICAP FILM 220UF 10% 800VDC RADIAL |
21 | - |
|
Datasheet | Radial, Can | 220 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 1 mOhms | -40°C ~ 85°C | Chassis Mount | 3.327" Dia (84.50mm) | 2.559" (65.00mm) | Threaded, Female | 1.772" (45.00mm) | DC Link, DC Filtering | - | - |
|
947D311K901ACGSNCAP FILM 310UF 10% 900VDC RADIAL |
3 | - |
|
Datasheet | Radial, Can | 310 µF | ±10% | 230V | 900V | Polypropylene (PP), Metallized | 1.4 mOhms | -45°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 2.992" (76.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|
947C601K801CCISCAP FILM 600UF 10% 800VDC RADIAL |
12 | - |
|
Datasheet | Radial, Can | 600 µF | ±10% | 230V | 800V | Polypropylene (PP), Metallized | 3.1 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.543" Dia (90.00mm) | 5.787" (147.00mm) | Threaded, Female | 1.772" (45.00mm) | DC Link, DC Filtering | - | Long Life, Low ESR |
|

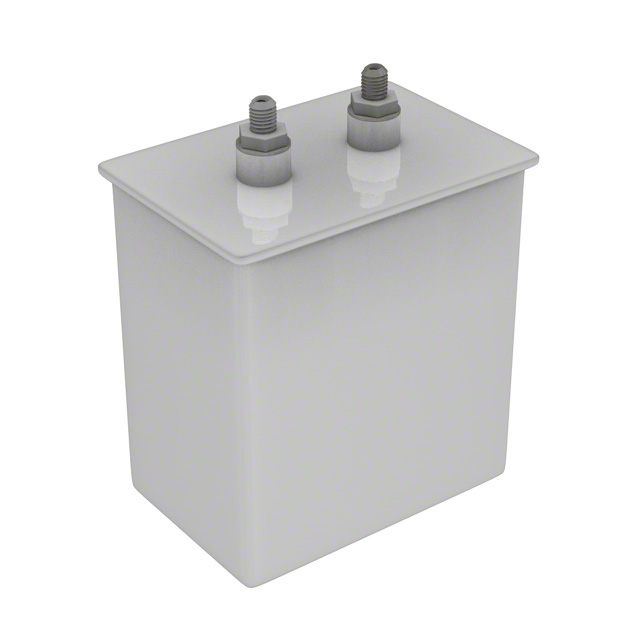

SCRN256R-FCAP FILM 10UF 10% 2KVPK RADIAL |
24 | - |
|
Datasheet | Radial, Can | 10 µF | ±10% | 2000Vpk (2KVPK) | - | Paper, Metallized | - | -40°C ~ 80°C | Chassis Mount, Requires Holder/Bracket | 4.560" L x 3.750" W (115.82mm x 95.25mm), Lip | 5.810" (147.57mm) | Threaded, Male | 2.000" (50.80mm) | Commutation; High Frequency, Switching; High Pulse, DV/DT | - | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
