Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
715P10396KA3CAP FILM 10000PF 10% 600VDC RAD |
75 | - |
|
Datasheet | Radial | 10000 pF | ±10% | 200V | 600V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.358" Dia x 0.902" L (9.10mm x 22.90mm) | 0.654" (16.60mm) | PC Pins | 0.689" (17.50mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
715P22256JD3CAP FILM 2200PF 5% 600VDC RADIAL |
88 | - |
|
Datasheet | Radial | 2200 pF | ±5% | 200V | 600V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.331" Dia x 0.701" L (8.40mm x 17.80mm) | 0.622" (15.80mm) | PC Pins | 0.375" (9.52mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
150104J400ECCAP FILM 0.1UF 5% 400VDC AXIAL |
78 | - |
|
Datasheet | Axial | 0.1 µF | ±5% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.315" Dia x 0.807" L (8.00mm x 20.50mm) | - | PC Pins | - | General Purpose | - | - |
|

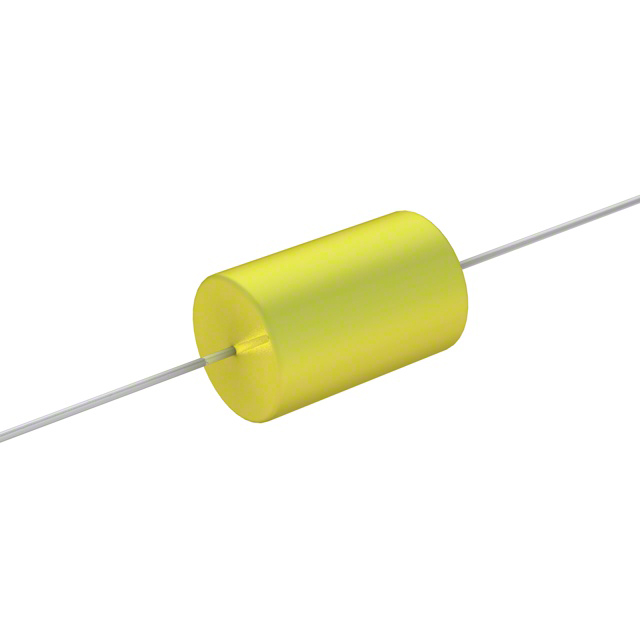

WMC08P1K-FCAP FILM 0.1UF 10% 80VDC AXIAL |
56 | - |
|
Datasheet | Axial | 0.1 µF | ±10% | 50V | 80V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.343" Dia x 0.531" L (8.70mm x 13.50mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
940C30S1K-FCAP FILM 10000PF 10% 3KVDC AXIAL |
89 | - |
|
Datasheet | Axial | 10000 pF | ±10% | 500V | 3000V (3kV) | Polypropylene (PP), Metallized | 60 mOhms | -55°C ~ 105°C | Through Hole | 0.453" Dia x 1.339" L (11.50mm x 34.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
405PHC250KCAP FILM 4UF 10% 250VDC AXIAL |
83 | - |
|
Datasheet | Axial | 4 µF | ±10% | 160V | 250V | Polypropylene (PP), Metallized | 3.8 mOhms | -40°C ~ 85°C | Through Hole | 0.669" Dia x 1.339" L (17.00mm x 34.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching | - | Low ESR, Low ESL |
|
|
940C10P22K-FCAP FILM 0.22UF 10% 1KVDC AXIAL |
35 | - |
|
Datasheet | Axial | 0.22 µF | ±10% | 500V | 1000V (1kV) | Polypropylene (PP), Metallized | 7 mOhms | -55°C ~ 105°C | Through Hole | 0.689" Dia x 1.339" L (17.50mm x 34.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
|
940C10P33K-FCAP FILM 0.33UF 10% 1KVDC AXIAL |
28 | - |
|
Datasheet | Axial | 0.33 µF | ±10% | 500V | 1000V (1kV) | Polypropylene (PP), Metallized | 6 mOhms | -55°C ~ 105°C | Through Hole | 0.807" Dia x 1.339" L (20.50mm x 34.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
106MWR250KCAP FILM 10UF 10% 250VDC AXIAL |
56 | - |
|
Datasheet | Axial | 10 µF | ±10% | 160V | 250V | Polyester, Metallized | 177 mOhms | -40°C ~ 105°C | Through Hole | 0.965" Dia x 1.831" L (24.50mm x 46.50mm) | - | PC Pins | - | General Purpose | - | Low ESR |
|
104PPA302KCAP FILM 0.1UF 10% 3KVDC AXIAL |
50 | - |
|
Datasheet | Axial | 0.1 µF | ±10% | 750V | 3000V (3kV) | Polypropylene (PP), Metallized | 9.4 mOhms | -55°C ~ 85°C | Through Hole | 0.984" Dia x 1.811" L (25.00mm x 46.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; Snubber | - | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
