Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
156PHB600K4RCAP FILM 15UF 10% 600VDC RADIAL |
87 | - |
|
Datasheet | Radial | 15 µF | ±10% | 350V | 600V | Polypropylene (PP), Metallized | 3 mOhms | -40°C ~ 100°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | High Frequency, Switching | - | - |
|

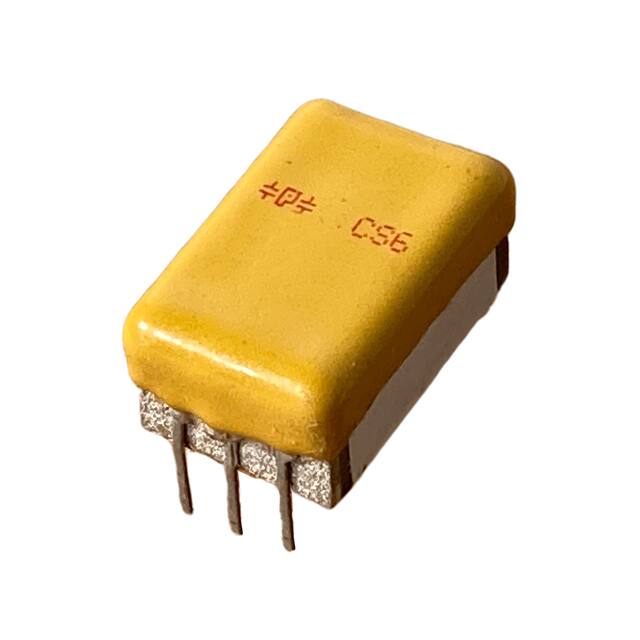

474K400CS6CAP FILM 0.47UF 10% 400VDC 6DIP |
6,321 | - |
|
Datasheet | 6-DIP | 0.47 µF | ±10% | - | 400V | Polymer, Metallized | 11 mOhms | -55°C ~ 125°C | Through Hole | 0.701" L x 0.460" W (17.80mm x 11.70mm) | 0.319" (8.10mm) | PC Pins | 0.591" (15.00mm) | DC Link, DC Filtering; High Frequency, Switching | - | Low ESR, Low ESL |
.JPG "SFD44T45K391B-F")
|
SFD44T45K391B-FCAP FILM 45UF 10% 440VAC RADIAL |
7,293 | - |
|
Datasheet | Radial, Can | 45 µF | ±10% | 440V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount, Requires Holder/Bracket | 3.660" L x 1.970" W (92.96mm x 50.04mm), Lip | 4.030" (102.36mm) | Quick Connect, Disconnect | 0.810" (20.57mm) | Motor Run | - | - |
|
947C231K102CAMSCAP FILM 230UF 10% 1KVDC RADIAL |
8,932 | - |
|
Datasheet | Radial, Can | 230 µF | ±10% | 230V | 1000V (1kV) | Polypropylene (PP), Metallized | 2.6 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.543" Dia (90.00mm) | 3.898" (99.00mm) | Threaded, Male | 1.772" (45.00mm) | DC Link, DC Filtering | - | Long Life, Low ESR |
|
|
503HC2102K2SM6CAP FILM 0.05UF 10% 1KVAC CHASS |
4 | - |
|
Datasheet | Nonstandard | 0.05 µF | ±10% | 1000V (1kV) | - | Polypropylene (PP) | 1.5 mOhms | -40°C ~ 85°C | Chassis Mount | 2.677" L x 1.189" W (68.00mm x 30.20mm) | 1.201" (30.50mm) | Threaded, Female | - | Conduction Cooled; High Pulse, DV/DT | - | - |
|
|
334HC2800K2SM6CAP FILM 0.33UF 10% 800VAC CHASS |
8 | - |
|
Datasheet | Nonstandard | 0.33 µF | ±10% | 800V | - | Polypropylene (PP) | 0.8 mOhms | -40°C ~ 85°C | Chassis Mount | 2.677" L x 1.189" W (68.00mm x 30.20mm) | 1.201" (30.50mm) | Threaded, Female | - | Conduction Cooled; High Pulse, DV/DT | - | - |
|
|
947C311K102CBMSCAP FILM 310UF 10% 1KVDC RADIAL |
5,311 | - |
|
Datasheet | Radial, Can | 310 µF | ±10% | 230V | 1000V (1kV) | Polypropylene (PP), Metallized | 3.2 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.543" Dia (90.00mm) | 4.803" (122.00mm) | Threaded, Male | 1.772" (45.00mm) | DC Link, DC Filtering | - | Long Life, Low ESR |
|
940C20S47K-FCAP FILM 0.047UF 10% 2KVDC AXIAL |
8,187 | - |
|
Datasheet | Axial | 0.047 µF | ±10% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | 12 mOhms | -55°C ~ 105°C | Through Hole | 0.591" Dia x 1.339" L (15.00mm x 34.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
158X474CAP FILM 0.47UF 20% 275VAC RAD |
5,204 | - |
|
Datasheet | Radial | 0.47 µF | ±20% | 275V | - | Polyester, Metallized | - | -40°C ~ 100°C | Through Hole | 1.181" L x 0.433" W (30.00mm x 11.00mm) | 0.886" (22.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
106PHC600KCAP FILM 10UF 10% 600VDC AXIAL |
6,283 | - |
|
Datasheet | Axial | 10 µF | ±10% | 330V | 600V | Polypropylene (PP), Metallized | 5.4 mOhms | -40°C ~ 85°C | Through Hole | 1.378" Dia x 2.165" L (35.00mm x 55.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching | - | Low ESR, Low ESL |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
