Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
685PHC600KCAP FILM 6.8UF 10% 600VDC AXIAL |
2,643 | - |
|
Datasheet | Axial | 6.8 µF | ±10% | 330V | 600V | Polypropylene (PP), Metallized | 6.5 mOhms | -40°C ~ 85°C | Through Hole | 1.181" Dia x 2.165" L (30.00mm x 55.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching | - | Low ESR, Low ESL |
|
BLH406K701C064DC LINK, THB, 85/85, AEC-Q200 |
4 | - |
|
Datasheet | Radial - 4 Leads | 40 µF | ±10% | - | 700V | Polypropylene (PP), Metallized | 5 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|
|
206PHC400KCAP FILM 20UF 10% 400VDC AXIAL |
4,389 | - |
|
Datasheet | Axial | 20 µF | ±10% | 250V | 400V | Polypropylene (PP), Metallized | 4.3 mOhms | -40°C ~ 85°C | Through Hole | 1.378" Dia x 2.323" L (35.00mm x 59.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching | - | Low ESR, Low ESL |
|
|
32FD3706A-FCAP FILM 6UF 10% 370VAC RADIAL |
4,091 | - |
|
Datasheet | Radial, Can | 6 µF | ±10% | 370V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount, Requires Holder/Bracket | 2.156" L x 1.313" W (54.76mm x 33.35mm), Lip | 2.440" (61.98mm) | Quick Connect, Disconnect | 0.813" (20.64mm) | Motor Run; Power Factor Correction (PFC) | - | - |
|
SFA37T6K219B-FCAP FILM 6UF 10% 370VAC RADIAL |
5,491 | - |
|
Datasheet | Radial, Can | 6 µF | ±10% | 370V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount, Requires Holder/Bracket | 2.160" L x 1.310" W (54.86mm x 33.27mm), Lip | 2.310" (58.67mm) | Quick Connect, Disconnect | 0.810" (20.57mm) | Motor Run | - | - |
|
|
SFA37T4K219B-FCAP FILM 4UF 10% 370VAC RADIAL |
8,799 | - |
|
Datasheet | Radial, Can | 4 µF | ±10% | 370V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount, Requires Holder/Bracket | 2.160" L x 1.310" W (54.86mm x 33.27mm), Lip | 2.310" (58.67mm) | Quick Connect, Disconnect | 0.810" (20.57mm) | Motor Run | - | - |
|
940C16W1K-FCAP FILM 1UF 10% 1.6KVDC AXIAL |
3,857 | - |
|
Datasheet | Axial | 1 µF | ±10% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 105°C | Through Hole | 1.535" Dia x 1.811" L (39.00mm x 46.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
|
37FD3725A-FCAP FILM 25UF 10% 370VAC RADIAL |
1 | - |
|
Datasheet | Radial, Can | 25 µF | ±10% | 370V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount, Requires Holder/Bracket | 2.906" L x 1.906" W (73.81mm x 48.41mm), Lip | 3.160" (80.26mm) | Quick Connect, Disconnect | 0.813" (20.64mm) | Motor Run; Power Factor Correction (PFC) | - | - |
|
935C2W10K-FCAP FILM 10UF 10% 200VDC AXIAL |
5,646 | - |
|
Datasheet | Axial | 10 µF | ±10% | 140V | 200V | Polypropylene (PP), Metallized | 9 mOhms | -55°C ~ 105°C | Through Hole | 0.906" Dia x 2.248" L (23.00mm x 57.10mm) | - | PC Pins | - | High Frequency, Switching | - | - |
|

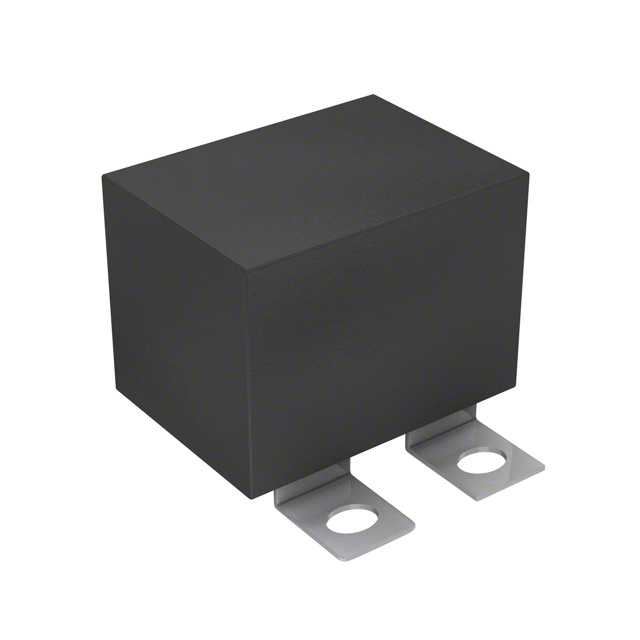

SCD205K102D3Z25-FCAP FILM 2UF 10% 1KVDC SCREW |
4,260 | - |
|
Datasheet | Rectangular Box | 2 µF | ±10% | 500V | 1000V (1kV) | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 85°C | Chassis Mount | 2.051" L x 1.500" W (52.10mm x 38.10mm) | 1.500" (38.10mm) | Screw Terminals | 1.000" (25.40mm) | Snubber | - | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
