Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
106K050CS4G-FACAP FILM 10UF 10% 50VDC 10SMD |
9,614 | - |
|
Datasheet | 10-SMD, Gull Wing | 10 µF | ±10% | - | 50V | Polymer, Metallized | 3 mOhms | -55°C ~ 125°C | Surface Mount | 0.618" L x 0.500" W (15.70mm x 12.70mm) | 0.320" (8.12mm) | Gull Wing | 0.394" (10.00mm) | DC Link, DC Filtering; High Frequency, Switching | - | Low ESR, Low ESL |
.JPG "SFC66T12K391B-F")
|

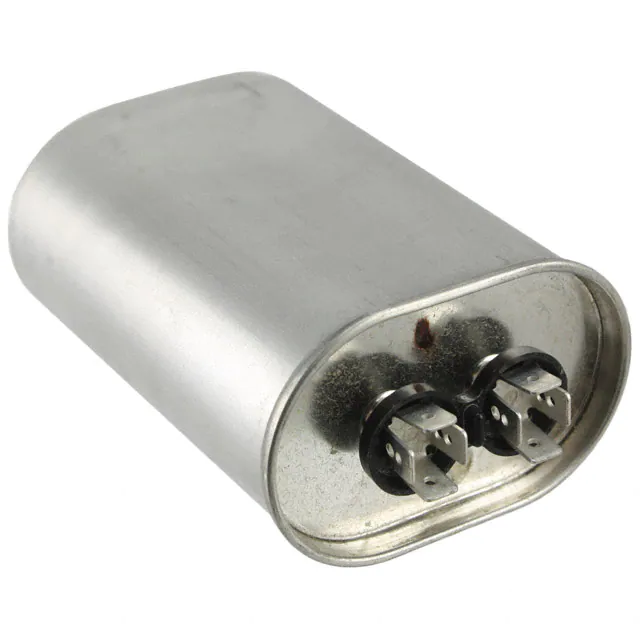

SFC66T12K391B-FCAP FILM 12UF 10% 660VAC RADIAL |
7,632 | - |
|
Datasheet | Radial, Can | 12 µF | ±10% | 660V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount, Requires Holder/Bracket | 2.910" L x 1.910" W (73.91mm x 48.51mm), Lip | 4.030" (102.36mm) | Quick Connect, Disconnect | 0.810" (20.57mm) | Motor Run | - | - |
|
T10W1NR-FCAP FILM 1UF 10% 1KVDC RADIAL |
5,873 | - |
|
Datasheet | Radial, Can | 1 µF | ±10% | - | 1000V (1kV) | Paper, Metallized | - | -55°C ~ 105°C | Chassis Mount, Requires Holder/Bracket | 2.160" L x 1.310" W (54.86mm x 33.27mm), Lip | 2.190" (55.63mm) | Threaded, Male | 0.810" (20.57mm) | EMI, RFI Suppression | - | High Temperature |
|
944U330K142AAICAP FILM 33UF 10% 1.4KVDC RADIAL |
3,607 | - |
|
Datasheet | Radial, Can | 33 µF | ±10% | - | 1400V (1.4kV) | Polypropylene (PP), Metallized | 0.8 mOhms | -40°C ~ 85°C | Chassis Mount | 3.327" Dia (84.50mm) | 1.614" (41.00mm) | Threaded, Female | 1.772" (45.00mm) | DC Link, DC Filtering | - | - |
|
UNL6W80K-FCAP FILM 80UF 10% 600VDC RADIAL |
3,245 | - |
|
Datasheet | Radial, Can | 80 µF | ±10% | - | 600V | Polypropylene (PP), Metallized | 6.5 mOhms | -55°C ~ 105°C | Through Hole | 1.969" Dia (50.00mm) | 2.500" (63.50mm) | PC Pins | - | - | - | Low ESR |
|
245HC1400K2SM6CAP FILM 2.4UF 10% 400VAC CHASS |
6,479 | - |
|
Datasheet | Nonstandard | 2.4 µF | ±10% | 400V | - | Polypropylene (PP) | 0.6 mOhms | -40°C ~ 85°C | Chassis Mount | 2.677" L x 1.189" W (68.00mm x 30.20mm) | 1.201" (30.50mm) | Threaded, Female | - | Conduction Cooled; High Pulse, DV/DT | - | - |
|
664LC4102K5LM8CAP FILM 0.66UF 1KVAC CHAS MT |
9,778 | - |
|
Datasheet | Nonstandard | 0.66 µF | ±10% | 1000V (1kV) | - | Polypropylene (PP) | 0.8 mOhms | -40°C ~ 85°C | Chassis Mount | 3.071" L x 3.071" W (78.00mm x 78.00mm) | 1.358" (34.50mm) | Threaded, Female | - | Conduction Cooled; High Pulse, DV/DT | - | - |
|
MMP0100F33CAP FILM 1151.3UF 480VAC RADIAL |
3,112 | - |
|
Datasheet | Radial, Can - 3 Lead | 1151.3 µF | 0%, +15% | 480V | - | Polypropylene (PP), Metallized | - | -40°C ~ 46°C | Chassis Mount | 13.500" L x 3.750" W (342.90mm x 95.25mm) | 24.120" (612.65mm) | Threaded, Male | 4.000" (101.60mm) | 3 Phase, Power Factor Correction (PFC) | - | Long Life |
|
|
MMP0100I33CAP FILM 736.8UF 600VAC RADIAL |
1 | - |
|
Datasheet | Radial, Can - 3 Lead | 736.8 µF | 0%, +15% | 600V | - | Polypropylene (PP), Metallized | - | -40°C ~ 46°C | Chassis Mount | 13.500" L x 3.750" W (342.90mm x 95.25mm) | 24.120" (612.65mm) | Threaded, Male | 4.000" (101.60mm) | 3 Phase, Power Factor Correction (PFC) | - | Long Life |
|
DME2S33K-FCAP FILM 0.033UF 10% 250VDC RAD |
6,334 | - |
|
Datasheet | Radial | 0.033 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.406" L x 0.177" W (10.30mm x 4.50mm) | 0.354" (9.00mm) | PC Pins | 0.295" (7.50mm) | General Purpose | - | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
