Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCRN234R-FCAP FILM 2UF 10% 1KVPK RADIAL |
81 | - |
|
Datasheet | Radial, Can | 2 µF | ±10% | 1000Vpk (1KVPK) | - | Paper, Metallized | - | -40°C ~ 80°C | Chassis Mount, Requires Holder/Bracket | 2.160" L x 1.310" W (54.86mm x 33.27mm), Lip | 3.190" (81.03mm) | Threaded, Male | 0.810" (20.57mm) | Commutation; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
106K050CS4GCAP FILM 10UF 10% 50VDC 10SMD |
49 | - |
|
Datasheet | 10-SMD, Gull Wing | 10 µF | ±10% | - | 50V | Polymer, Metallized | 3 mOhms | -55°C ~ 125°C | Surface Mount | 0.618" L x 0.500" W (15.70mm x 12.70mm) | 0.319" (8.10mm) | Gull Wing | 0.394" (10.00mm) | DC Link, DC Filtering; High Frequency, Switching | - | Low ESR, Low ESL |
.JPG "SFD66T20K391B-F")
|
SFD66T20K391B-FCAP FILM 20UF 10% 660VAC RADIAL |
83 | - |
|
Datasheet | Radial, Can | 20 µF | ±10% | 660V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount, Requires Holder/Bracket | 3.660" L x 1.970" W (92.96mm x 50.04mm), Lip | 4.030" (102.36mm) | Quick Connect, Disconnect | 0.810" (20.57mm) | Motor Run | - | - |
.jpg "944U161K801ABM")
|
944U161K801ABMCAP FILM 160UF 10% 800VDC RADIAL |
23 | - |
|
Datasheet | Radial, Can | 160 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 0.8 mOhms | -40°C ~ 85°C | Chassis Mount | 3.327" Dia (84.50mm) | 2.047" (52.00mm) | Threaded, Male | 1.772" (45.00mm) | DC Link, DC Filtering | - | - |
|

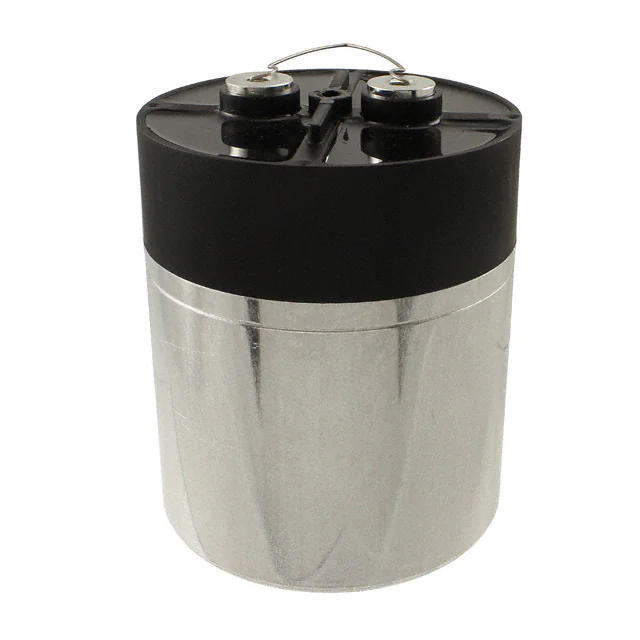

947D271K112AEGSNCAP FILM 270UF 10% 1.1KVDC RAD |
170 | - |
|
Datasheet | Radial, Can | 270 µF | ±10% | 230V | 1100V (1.1kV) | Polypropylene (PP), Metallized | 2.1 mOhms | -45°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 3.976" (101.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|

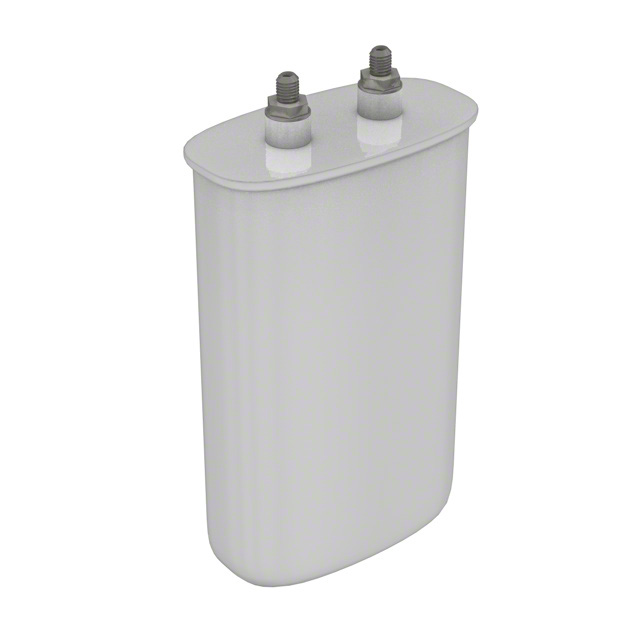

SCRN253R-FCAP FILM 5UF 10% 2KVPK RADIAL |
58 | - |
|
Datasheet | Radial, Can | 5 µF | ±10% | 2000Vpk (2KVPK) | - | Paper, Metallized | - | -40°C ~ 80°C | Chassis Mount, Requires Holder/Bracket | 3.660" L x 1.970" W (92.96mm x 50.04mm), Lip | 5.810" (147.57mm) | Threaded, Male | 1.380" (35.05mm) | Commutation; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
944U101K122ACMCAP FILM 100UF 10% 1.2KVDC RAD |
1,371 | - |
|
Datasheet | Radial, Can | 100 µF | ±10% | - | 1200V (1.2kV) | Polypropylene (PP), Metallized | 1.3 mOhms | -40°C ~ 85°C | Chassis Mount | 3.327" Dia (84.50mm) | 2.559" (65.00mm) | Threaded, Male | 1.772" (45.00mm) | DC Link, DC Filtering | - | - |
|
Z26S5892MT5A4CAP FILM 92UF -1% +5% 580VAC RAD |
40 | - |
|
Datasheet | Radial, Can | 92 µF | -1%, +5% | 580V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount | 2.500" Dia (63.50mm) | 7.500" (190.50mm) | Threaded, Male | - | General Purpose | - | Long Life |
|
|
944U700K142ACMCAP FILM 70UF 10% 1.4KVDC RADIAL |
126 | - |
|
Datasheet | Radial, Can | 70 µF | ±10% | - | 1400V (1.4kV) | Polypropylene (PP), Metallized | 1.4 mOhms | -40°C ~ 85°C | Chassis Mount | 3.327" Dia (84.50mm) | 2.559" (65.00mm) | Threaded, Male | 1.772" (45.00mm) | DC Link, DC Filtering | - | - |
|
947D331K102BDMSNCAP FILM 330UF 10% 1KVDC RADIAL |
131 | - |
|
Datasheet | Radial, Can | 330 µF | ±10% | 230V | 1000V (1kV) | Polypropylene (PP), Metallized | 1.3 mOhms | -45°C ~ 85°C | Chassis, Stud Mount | 3.543" Dia (90.00mm) | 3.465" (88.00mm) | Threaded, Female | 1.772" (45.00mm) | DC Link, DC Filtering | - | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
