Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

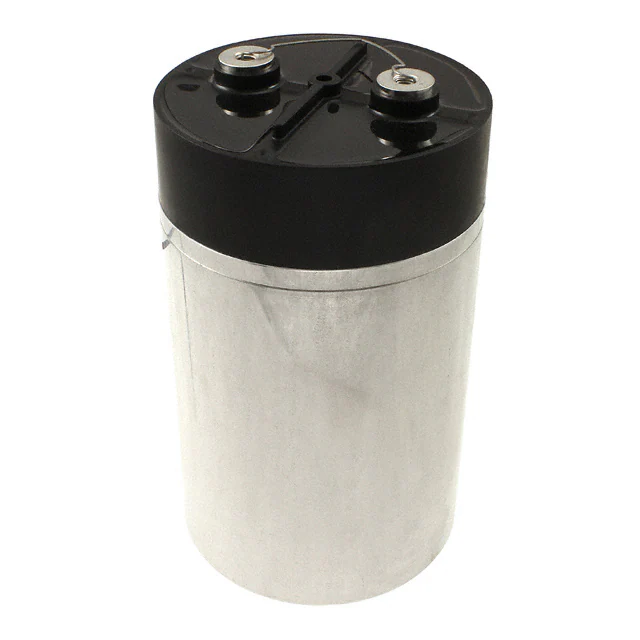

947D501K112BJMSNCAP FILM 500UF 10% 1.1KVDC RAD |
38 | - |
|
Datasheet | Radial, Can | 500 µF | ±10% | 230V | 1100V (1.1kV) | Polypropylene (PP), Metallized | 2.4 mOhms | -45°C ~ 85°C | Chassis, Stud Mount | 3.543" Dia (90.00mm) | 5.945" (151.00mm) | Threaded, Female | 1.772" (45.00mm) | DC Link, DC Filtering | - | - |
|

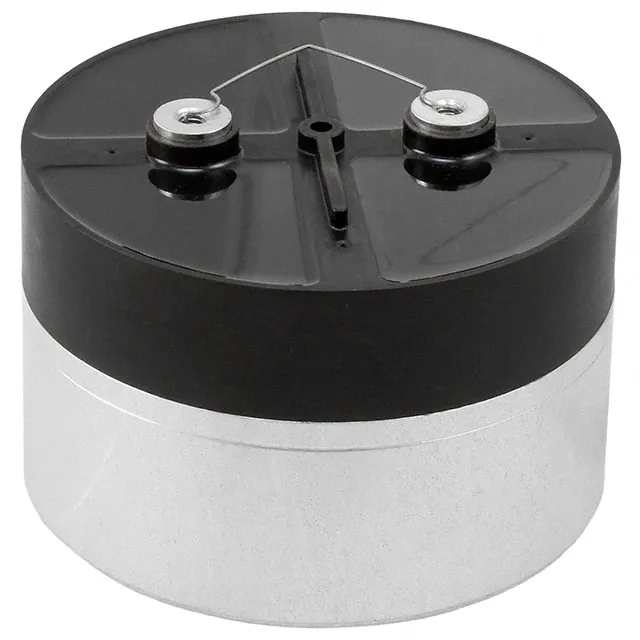

947D601K901DCRSNCAP FILM 600UF 10% 900VDC RADIAL |
95 | - |
|
Datasheet | Radial, Can | 600 µF | ±10% | 230V | 900V | Polypropylene (PP), Metallized | 0.9 mOhms | -45°C ~ 85°C | Chassis, Stud Mount | 4.567" Dia (116.00mm) | 2.992" (76.00mm) | Threaded, Female | 1.969" (50.00mm) | DC Link, DC Filtering | - | - |
|
947D102K901CJRSNCAP FILM 1000UF 10% 900VDC RAD |
39 | - |
|
Datasheet | Radial, Can | 1000 µF | ±10% | 230V | 900V | Polypropylene (PP), Metallized | 1.9 mOhms | -45°C ~ 85°C | Chassis, Stud Mount | 3.937" Dia (100.00mm) | 5.945" (151.00mm) | Threaded, Female | 1.969" (50.00mm) | DC Link, DC Filtering | - | - |
|
FCP0805H101J-J1CAP FILM 100PF 5% 50VDC 0805 |
3,000 | - |
|
Datasheet | 0805 (2012 Metric) | 100 pF | ±5% | - | 50V | Polyphenylene Sulfide (PPS) | - | -55°C ~ 125°C | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.043" (1.09mm) | Solder Pads | - | High Frequency, Switching | - | - |
|
MPX154K305DCAP FILM 0.15UF 10% 305VAC RAD |
14,865 | - |
|
Datasheet | Radial | 0.15 µF | ±10% | 305V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.315" W (13.00mm x 8.00mm) | 0.571" (14.50mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | X2 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|
153MMR400KCAP FILM 0.015UF 10% 400VDC RAD |
12,041 | - |
|
Datasheet | Radial | 0.015 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.413" L x 0.177" W (10.50mm x 4.50mm) | 0.315" (8.00mm) | PC Pins | 0.295" (7.50mm) | General Purpose | - | - |
.jpg "153MMR630K")
|
153MMR630KCAP FILM 0.015UF 10% 630VDC RAD |
8,890 | - |
|
Datasheet | Radial | 0.015 µF | ±10% | 220V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.512" L x 0.217" W (13.00mm x 5.50mm) | 0.354" (9.00mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|
|
MPX473K305DCAP FILM 0.047UF 10% 305VAC RAD |
10,081 | - |
|
Datasheet | Radial | 0.047 µF | ±10% | 305V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.492" (12.50mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | X2 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|
|
683MMR250KCAP FILM 0.068UF 10% 250VDC RAD |
9,800 | - |
|
Datasheet | Radial | 0.068 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.413" L x 0.197" W (10.50mm x 5.00mm) | 0.315" (8.00mm) | PC Pins | 0.295" (7.50mm) | General Purpose | - | - |
|
|
154MMR100KCAP FILM 0.15UF 10% 100VDC RAD |
9,847 | - |
|
Datasheet | Radial | 0.15 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.406" L x 0.177" W (10.30mm x 4.50mm) | 0.295" (7.50mm) | PC Pins | 0.295" (7.50mm) | General Purpose | - | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
