Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
715P15256JD3CAP FILM 1500PF 5% 600VDC RADIAL |
1,948 | - |
|
Datasheet | Radial | 1500 pF | ±5% | 200V | 600V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.319" Dia x 0.701" L (8.10mm x 17.80mm) | 0.610" (15.50mm) | PC Pins | 0.375" (9.52mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
715P22358LD3CAP FILM 0.022UF 5% 800VDC RAD |
1,346 | - |
|
Datasheet | Radial | 0.022 µF | ±5% | 450V | 800V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.441" Dia x 1.252" L (11.20mm x 31.80mm) | 0.752" (19.10mm) | PC Pins | 0.720" (18.30mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
475MKP275KJCAP FILM 4.7UF 10% 310VAC RADIAL |
10,076 | - |
|
Datasheet | Radial | 4.7 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634" L x 0.669" W (41.50mm x 17.00mm) | 1.193" (30.30mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X2 | - |
|

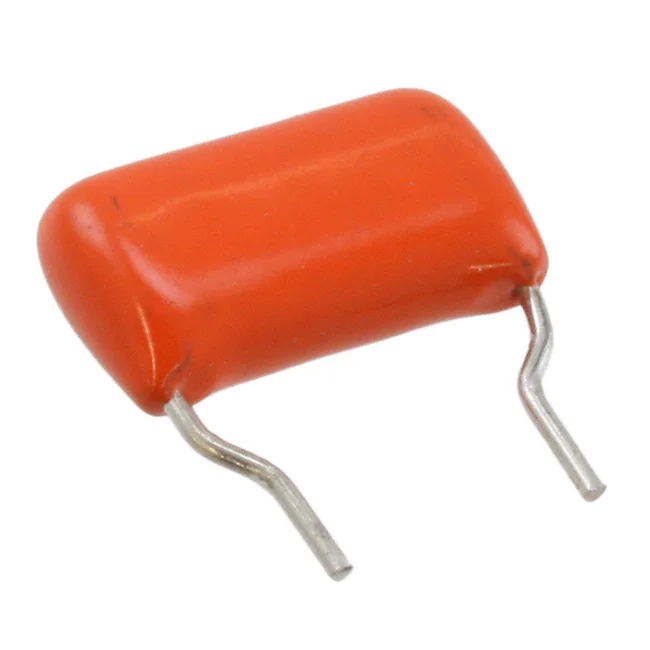

225P47391WD1CAP FILM 0.047UF 10% 100VDC RAD |
998 | - |
|
Datasheet | Radial | 0.047 µF | ±10% | 70V | 100V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.701" L x 0.299" W (17.80mm x 7.60mm) | 0.421" (10.70mm) | PC Pins | 0.375" (9.52mm) | Audio; DC Link, DC Filtering | - | - |
|
RA6105K250-FACAP FILM 1UF 10% 250VDC RADIAL |
276 | - |
|
Datasheet | Radial | 1 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.650" L x 0.240" W (16.50mm x 6.10mm) | 0.339" (8.60mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching; High Pulse, DV/DT; EMI, RFI Suppression | - | Low ESR; Low ESL; Long Life |
|
715P47254JD3CAP FILM 4700PF 5% 400VDC RADIAL |
1,983 | - |
|
Datasheet | Radial | 4700 pF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.339" Dia x 0.701" L (8.60mm x 17.80mm) | 0.634" (16.10mm) | PC Pins | 0.375" (9.52mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
160105K100H-FCAP FILM 1UF 10% 100VDC RADIAL |
2,000 | - |
|
Datasheet | Radial | 1 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.532" (13.50mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
225P56291WD3CAP FILM 5600PF 10% 100VDC RAD |
1,178 | - |
|
Datasheet | Radial | 5600 pF | ±10% | 70V | 100V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.700" L x 0.252" W (17.78mm x 6.40mm) | 0.350" (8.90mm) | PC Pins | 0.375" (9.52mm) | Audio; DC Link, DC Filtering | - | - |
|
225MPW250KCAP FILM 2.2UF 10% 250VDC AXIAL |
618 | - |
|
Datasheet | Axial | 2.2 µF | ±10% | 160V | 250V | Polypropylene (PP), Metallized | 80 mOhms | -55°C ~ 105°C | Through Hole | 0.748" Dia x 1.339" L (19.00mm x 34.00mm) | - | PC Pins | - | DC Link, DC Filtering | - | Low ESR |
|
715P222516LD3CAP FILM 2200PF 5% 1.6KVDC RAD |
4,481 | - |
|
Datasheet | Radial | 2200 pF | ±5% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.350" Dia x 1.252" L (8.90mm x 31.80mm) | 0.642" (16.30mm) | PC Pins | 0.720" (18.30mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
