Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WMF6S22K-FCAP FILM 0.022UF 10% 630VDC AXIA |
952 | - |
|
Datasheet | Axial | 0.022 µF | ±10% | - | 630V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.335" Dia x 0.937" L (8.50mm x 23.80mm) | - | PC Pins | - | General Purpose | - | - |
|
715P68352KD3CAP FILM 0.068UF 5% 200VDC RAD |
511 | - |
|
Datasheet | Radial | 0.068 µF | ±5% | 155V | 200V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.390" Dia x 0.902" L (9.90mm x 22.90mm) | 0.701" (17.80mm) | PC Pins | 0.374" (9.50mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|

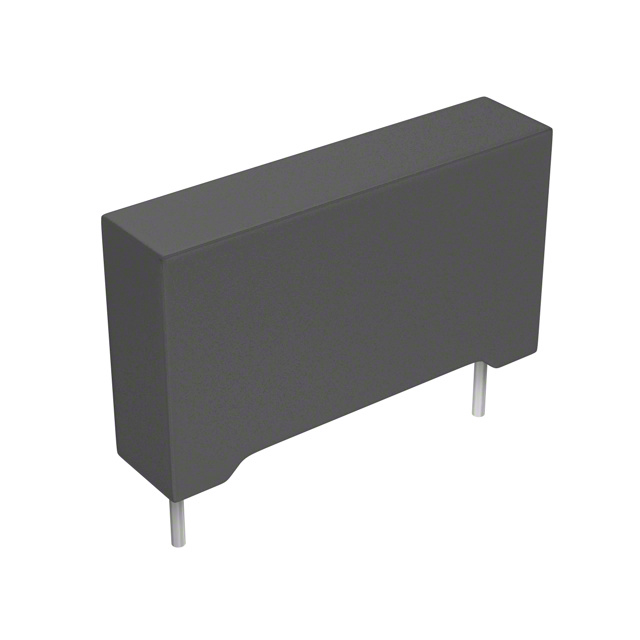

160473J1000L-FCAP FILM 0.047UF 5% 1KVDC RADIAL |
313 | - |
|
Datasheet | Radial | 0.047 µF | ±5% | 250V | 1000V (1kV) | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.591" (15.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
715P332516LD3CAP FILM 3300PF 5% 1.6KVDC RAD |
729 | - |
|
Datasheet | Radial | 3300 pF | ±5% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.402" Dia x 1.252" L (10.20mm x 31.80mm) | 0.693" (17.60mm) | PC Pins | 0.720" (18.30mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
225P22494YD3CAP FILM 0.22UF 10% 400VDC RAD |
1,382 | - |
|
Datasheet | Radial | 0.22 µF | ±10% | 200V | 400V | Polyester | - | -55°C ~ 85°C | Through Hole | 1.252" L x 0.559" W (31.80mm x 14.20mm) | 0.890" (22.60mm) | PC Pins | 0.720" (18.30mm) | Audio; DC Link, DC Filtering | - | - |
|
160105K250N-FCAP FILM 1UF 10% 250VDC RADIAL |
781 | - |
|
Datasheet | Radial | 1 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.669" (17.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
DME6P47K-FCAP FILM 0.47UF 10% 630VDC RAD |
462 | - |
|
Datasheet | Radial | 0.47 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.787" (20.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
474MWR102KCAP FILM 0.47UF 10% 1KVDC AXIAL |
142 | - |
|
Datasheet | Axial | 0.47 µF | ±10% | 250V | 1000V (1kV) | Polyester, Metallized | 3.01 Ohms | -40°C ~ 105°C | Through Hole | 0.768" Dia x 1.339" L (19.50mm x 34.00mm) | - | PC Pins | - | General Purpose | - | Low ESR |
|
WMF6S1K-FCAP FILM 10000PF 10% 630VDC AXIA |
1,787 | - |
|
Datasheet | Axial | 10000 pF | ±10% | - | 630V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.291" Dia x 0.811" L (7.40mm x 20.60mm) | - | PC Pins | - | General Purpose | - | - |
|
715P22354KD3CAP FILM 0.022UF 5% 400VDC RAD |
617 | - |
|
Datasheet | Radial | 0.022 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.331" Dia x 0.902" L (8.40mm x 22.90mm) | 0.642" (16.30mm) | PC Pins | 0.375" (9.52mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
