Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
940C10P15K-FCAP FILM 0.15UF 10% 1KVDC AXIAL |
270 | - |
|
Datasheet | Axial | 0.15 µF | ±10% | 500V | 1000V (1kV) | Polypropylene (PP), Metallized | 7 mOhms | -55°C ~ 105°C | Through Hole | 0.591" Dia x 1.339" L (15.00mm x 34.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
942C20S33K-FCAP FILM 0.033UF 10% 2KVDC AXIAL |
400 | - |
|
Datasheet | Axial | 0.033 µF | ±10% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | 12 mOhms | -55°C ~ 105°C | Through Hole | 0.768" Dia x 1.339" L (19.50mm x 34.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
DME2W4P7K-FCAP FILM 4.7UF 10% 250VDC RADIAL |
26,067 | - |
|
Datasheet | Radial | 4.7 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 1.024" L x 0.492" W (26.00mm x 12.50mm) | 0.945" (24.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
|
940C30S47K-FCAP FILM 0.047UF 10% 3KVDC AXIAL |
121 | - |
|
Datasheet | Axial | 0.047 µF | ±10% | 500V | 3000V (3kV) | Polypropylene (PP), Metallized | 14 mOhms | -55°C ~ 105°C | Through Hole | 0.650" Dia x 1.811" L (16.50mm x 46.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
|
940C16P15K-FCAP FILM 0.15UF 1.6KVDC AXIAL |
1,521 | - |
|
Datasheet | Axial | 0.15 µF | ±10% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 105°C | Through Hole | 0.846" Dia x 1.339" L (21.50mm x 34.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
305PHC250KCAP FILM 3UF 10% 250VDC AXIAL |
1,940 | - |
|
Datasheet | Axial | 3 µF | ±10% | 160V | 250V | Polypropylene (PP), Metallized | 4.8 mOhms | -40°C ~ 85°C | Through Hole | 0.591" Dia x 1.339" L (15.00mm x 34.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching | - | Low ESR, Low ESL |
|

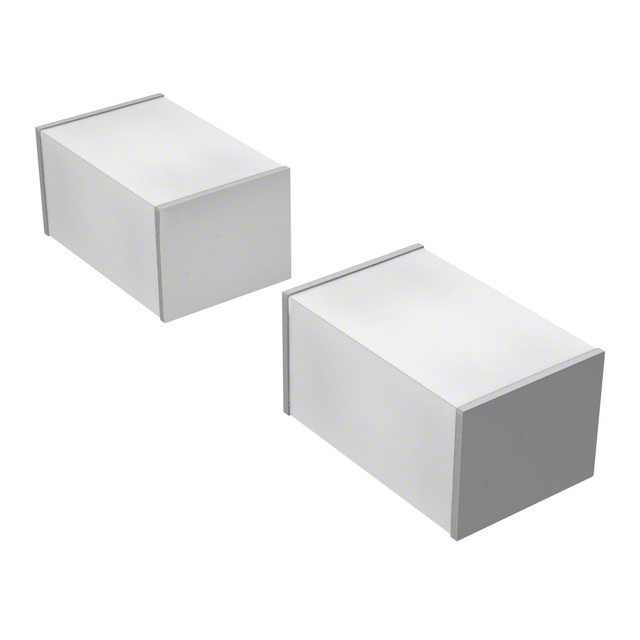

FCN3925A105K-VCAP FILM 1UF 10% 100VDC 3925 |
2,686 | - |
|
Datasheet | 3925 (9863 Metric) | 1 µF | ±10% | 63V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -40°C ~ 85°C | Surface Mount | 0.386" L x 0.248" W (9.80mm x 6.30mm) | 0.209" (5.30mm) | Solder Pads | - | General Purpose | - | - |
|
106MWR063KCAP FILM 10UF 10% 63VDC AXIAL |
815 | - |
|
Datasheet | Axial | 10 µF | ±10% | - | 63V | Polyester, Metallized | 177 mOhms | -40°C ~ 105°C | Through Hole | 0.551" Dia x 1.339" L (14.00mm x 34.00mm) | - | PC Pins | - | General Purpose | - | Low ESR |
|

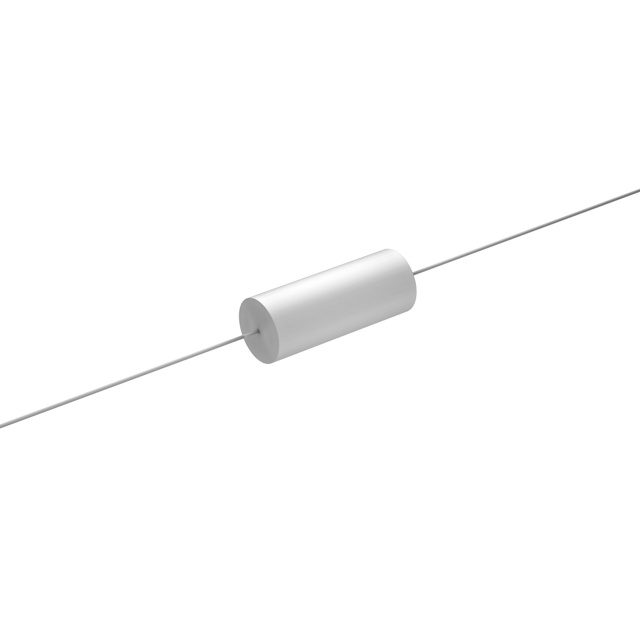

MMWA4P47K-FCAP FILM 0.47UF 10% 400VDC AXIAL |
2,980 | - |
|
Datasheet | Axial | 0.47 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.433" Dia x 1.185" L (11.00mm x 30.10mm) | - | PC Pins | - | General Purpose | - | - |
|
|
505PHC250KCAP FILM 5UF 10% 250VDC AXIAL |
261 | - |
|
Datasheet | Axial | 5 µF | ±10% | 160V | 250V | Polypropylene (PP), Metallized | 3.4 mOhms | -40°C ~ 85°C | Through Hole | 0.728" Dia x 1.339" L (18.50mm x 34.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching | - | Low ESR, Low ESL |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
