Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.JPG "224PPB102K")
|
224PPB102KCAP FILM 0.22UF 10% 1KVDC RADIAL |
228 | - |
|
Datasheet | Radial | 0.22 µF | ±10% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.551" W (32.00mm x 14.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | Commutation; High Pulse, DV/DT; Snubber | - | - |
|
160104J1000N-FCAP FILM 0.1UF 5% 1KVDC RADIAL |
3,386 | - |
|
Datasheet | Radial | 0.1 µF | ±5% | 250V | 1000V (1kV) | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.669" (17.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|

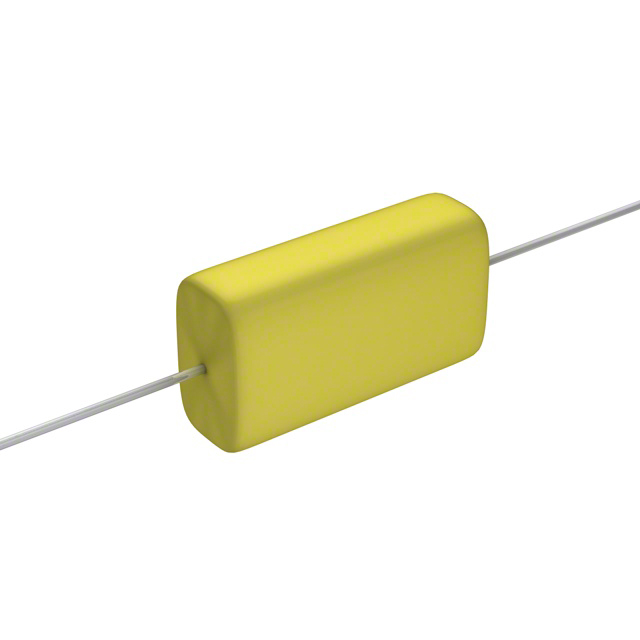

MMP6P22K-FCAP FILM 0.22UF 10% 630VDC AXIAL |
1,086 | - |
|
Datasheet | Axial | 0.22 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.591" W, 0.354" T x 1.063" L (15.00mm, 9.00mm x 27.00mm) | - | PC Pins | - | General Purpose | - | Long Life |
|

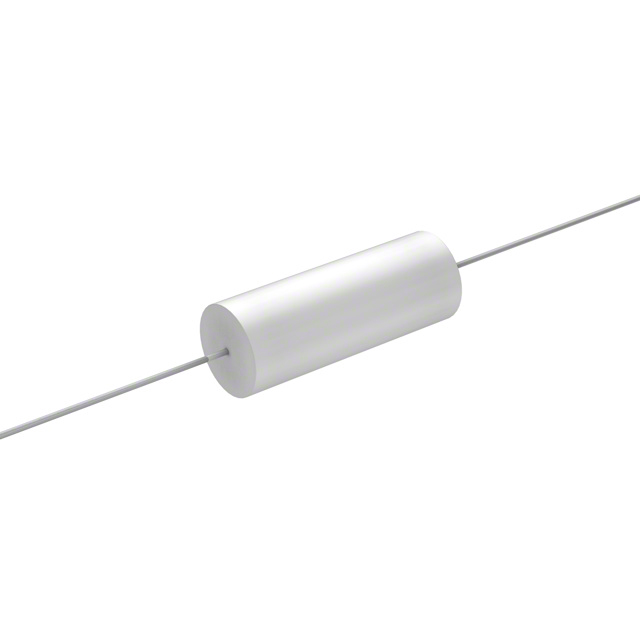

MMWA6P1K-FCAP FILM 0.1UF 10% 630VDC AXIAL |
964 | - |
|
Datasheet | Axial | 0.1 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.374" Dia x 1.000" L (9.50mm x 25.40mm) | - | PC Pins | - | General Purpose | - | - |
|
715P10496LD3CAP FILM 0.1UF 10% 600VDC RADIAL |
2,993 | - |
|
Datasheet | Radial | 0.1 µF | ±10% | 200V | 600V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.709" Dia x 1.252" L (18.00mm x 31.80mm) | 1.008" (25.60mm) | PC Pins | 0.720" (18.30mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
225P33491XD3CAP FILM 0.33UF 10% 100VDC RAD |
1,000 | - |
|
Datasheet | Radial | 0.33 µF | ±10% | 70V | 100V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.799" L x 0.520" W (20.30mm x 13.20mm) | 0.772" (19.60mm) | PC Pins | 0.375" (9.52mm) | Audio; DC Link, DC Filtering | - | - |
|
930C2W1K-FCAP FILM 1UF 10% 250VDC AXIAL |
875 | - |
|
Datasheet | Axial | 1 µF | ±10% | 175V | 250V | Polypropylene (PP), Metallized | 28 mOhms | -55°C ~ 105°C | Through Hole | 0.512" Dia x 1.260" L (13.00mm x 32.00mm) | - | PC Pins | - | General Purpose | - | - |
|

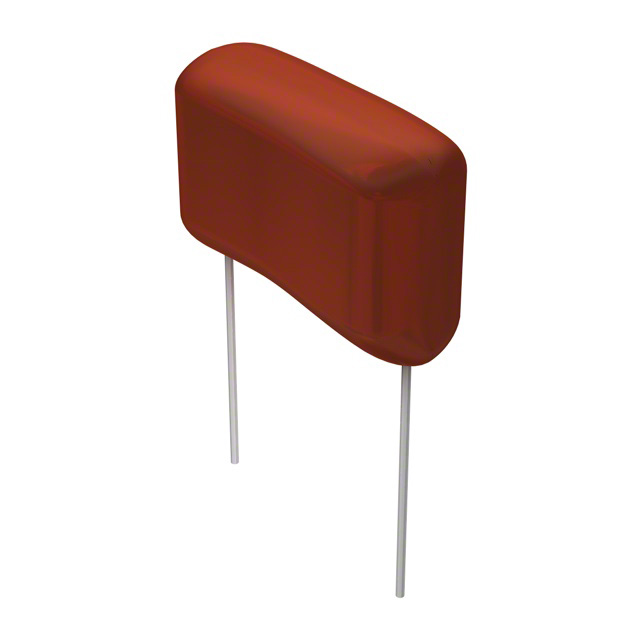

DPPM20S1K-FCAP FILM 10000PF 10% 2KVDC RAD |
2,941 | - |
|
Datasheet | Radial | 10000 pF | ±10% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.551" W (31.00mm x 14.00mm) | 0.925" (23.50mm) | PC Pins | 1.043" (26.50mm) | High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
|
225P10496YA3CAP FILM 0.1UF 10% 600VDC RADIAL |
816 | - |
|
Datasheet | Radial | 0.1 µF | ±10% | - | 600V | Polyester | - | -55°C ~ 85°C | Through Hole | 1.252" L x 0.559" W (31.80mm x 14.20mm) | 0.909" (23.10mm) | PC Pins | 0.969" (24.60mm) | Audio; DC Link, DC Filtering | - | - |
|
150104J630FECAP FILM 0.1UF 5% 630VDC AXIAL |
921 | - |
|
Datasheet | Axial | 0.1 µF | ±5% | 220V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.335" Dia x 1.102" L (8.50mm x 28.00mm) | - | PC Pins | - | General Purpose | - | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
