Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
944U161K801ABICAP FILM 160UF 10% 800VDC RADIAL |
28 | - |
|
Datasheet | Radial, Can | 160 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 0.8 mOhms | -40°C ~ 85°C | Chassis Mount | 3.327" Dia (84.50mm) | 2.047" (52.00mm) | Threaded, Female | 1.772" (45.00mm) | DC Link, DC Filtering | - | - |
|
206K050CS4GCAP FILM 20UF 10% 50VDC 18SMD |
200 | - |
|
Datasheet | 18-SMD, Gull Wing | 20 µF | ±10% | - | 50V | Polyester, Metallized | 2.5 mOhms | -55°C ~ 125°C | Surface Mount | 1.150" L x 0.500" W (29.20mm x 12.70mm) | 0.379" (9.62mm) | Gull Wing | 0.394" (10.00mm) | DC Link, DC Filtering; High Frequency, Switching | - | Low ESR, Low ESL |
|

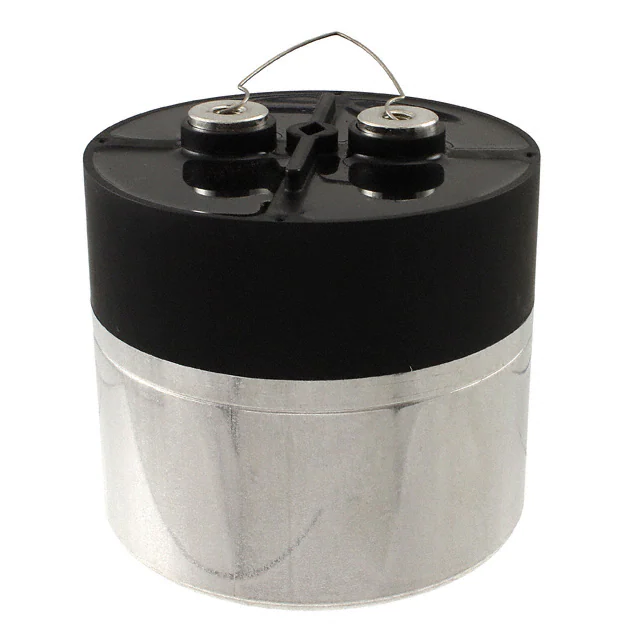

947D131K132ACGSNCAP FILM 130UF 10% 1.3KVDC RAD |
41 | - |
|
Datasheet | Radial, Can | 130 µF | ±10% | 230V | 1300V (1.3kV) | Polypropylene (PP), Metallized | 1.9 mOhms | -45°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 2.992" (76.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|
944U141K102ACICAP FILM 140UF 10% 1KVDC RADIAL |
76 | - |
|
Datasheet | Radial, Can | 140 µF | ±10% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 1 mOhms | -40°C ~ 85°C | Chassis Mount | 3.327" Dia (84.50mm) | 2.559" (65.00mm) | Threaded, Female | 1.772" (45.00mm) | DC Link, DC Filtering | - | - |
|
947C361K801CAMSCAP FILM 360UF 10% 800VDC RADIAL |
290 | - |
|
Datasheet | Radial, Can | 360 µF | ±10% | 230V | 800V | Polypropylene (PP), Metallized | 1.9 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.543" Dia (90.00mm) | 3.898" (99.00mm) | Threaded, Male | 1.772" (45.00mm) | DC Link, DC Filtering | - | Long Life, Low ESR |
|
334HC1700K2CM6CAP FILM 0.33UF 700VAC CHAS MT |
29 | - |
|
Datasheet | Nonstandard | 0.33 µF | ±10% | 700V | - | Polypropylene (PP) | 1 mOhms | -40°C ~ 85°C | Chassis Mount | 2.677" L x 1.181" W (68.00mm x 30.00mm) | 1.193" (30.30mm) | Threaded, Female | - | Conduction Cooled; High Pulse, DV/DT | - | - |
|

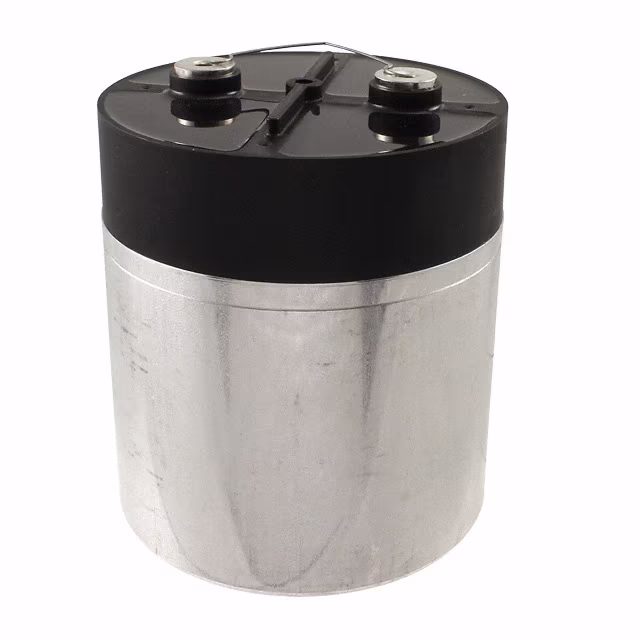

947D311K132CFRSNCAP FILM 310UF 10% 1.3KVDC RAD |
64 | - |
|
Datasheet | Radial, Can | 310 µF | ±10% | 230V | 1300V (1.3kV) | Polypropylene (PP), Metallized | 2 mOhms | -45°C ~ 85°C | Chassis, Stud Mount | 3.937" Dia (100.00mm) | 4.449" (113.00mm) | Threaded, Female | 1.969" (50.00mm) | DC Link, DC Filtering | - | - |
|

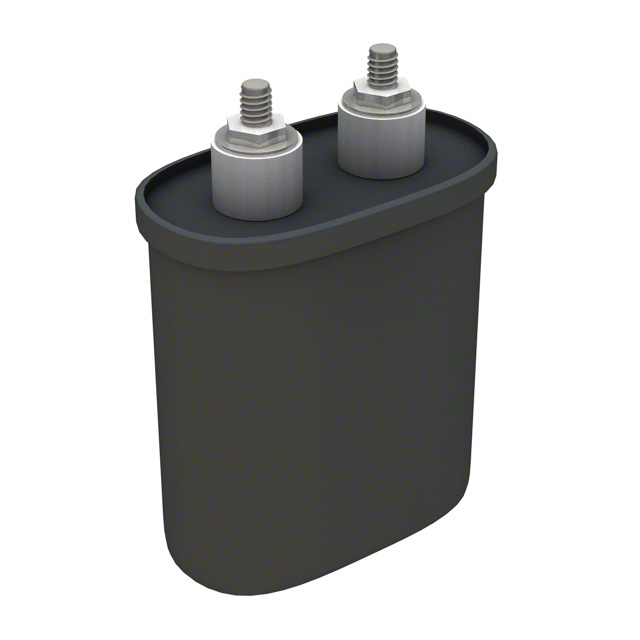

T50W1NR-FCAP FILM 1UF 10% 5KVDC RADIAL |
123 | - |
|
Datasheet | Radial, Can | 1 µF | ±10% | - | 5000V (5kV) | Paper, Metallized | - | -55°C ~ 105°C | Chassis Mount, Requires Holder/Bracket | 3.660" L x 1.970" W (92.96mm x 50.04mm), Lip | 4.310" (109.47mm) | Threaded, Male | 1.380" (35.05mm) | EMI, RFI Suppression | - | High Temperature |
|
947C471K102CDMSCAP FILM 470UF 10% 1KVDC RADIAL |
78 | - |
|
Datasheet | Radial, Can | 470 µF | ±10% | 230V | 1000V (1kV) | Polypropylene (PP), Metallized | 4.3 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.543" Dia (90.00mm) | 6.772" (172.00mm) | Threaded, Male | 1.772" (45.00mm) | DC Link, DC Filtering | - | Long Life, Low ESR |
|
947D591K132DJRSNCAP FILM 590UF 10% 1.3KVDC RAD |
45 | - |
|
Datasheet | Radial, Can | 590 µF | ±10% | 230V | 1300V (1.3kV) | Polypropylene (PP), Metallized | 2.1 mOhms | -45°C ~ 85°C | Chassis, Stud Mount | 4.567" Dia (116.00mm) | 5.945" (151.00mm) | Threaded, Female | 1.969" (50.00mm) | DC Link, DC Filtering | - | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
