Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALH406K251C084CAP FILM 40UF 250VAC RAD 4 LEAD |
314 | - |
|
Datasheet | Radial - 4 Leads | 40 µF | ±10% | 250V | - | Polypropylene (PP) | 5.2 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 2.008" (51.00mm) | PC Pins | 2.067" (52.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|
|
ALH206K251B104CAP FILM 20UF 250VAC RAD 4 LEAD |
137 | - |
|
Datasheet | Radial - 4 Leads | 20 µF | ±10% | 250V | - | Polypropylene (PP) | 4.8 mOhms | -40°C ~ 105°C | Through Hole | 1.673" L x 1.181" W (42.50mm x 30.00mm) | 1.803" (45.80mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|
105PPA122KCAP FILM 1UF 10% 1.2KVDC AXIAL |
193 | - |
|
Datasheet | Axial | 1 µF | ±10% | 550V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 3.4 mOhms | -55°C ~ 85°C | Through Hole | 1.260" Dia x 1.811" L (32.00mm x 46.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; Snubber | - | - |
|
MPX206K305RCAP FILM 20UF 10% 305VAC RADIAL |
208 | - |
|
Datasheet | Radial | 20 µF | ±10% | 305V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.791" (45.50mm) | PC Pins | 2.067" (52.50mm) | EMI, RFI Suppression | X2 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|
Z26S6045M50NCAP FILM 45UF -1% +5% 600VAC RAD |
319 | - |
|
Datasheet | Radial, Can | 45 µF | -1%, +5% | 600V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount | 1.750" Dia (44.45mm) | 2.870" (72.90mm) | Quick Connect, Disconnect | 0.810" (20.57mm) | General Purpose | - | Long Life |
|
940C16P47K-FCAP FILM 0.47UF 1.6KVDC AXIAL |
266 | - |
|
Datasheet | Axial | 0.47 µF | ±10% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 6 mOhms | -55°C ~ 105°C | Through Hole | 1.083" Dia x 1.811" L (27.50mm x 46.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
106PHC250KCAP FILM 10UF 10% 250VDC AXIAL |
172 | - |
|
Datasheet | Axial | 10 µF | ±10% | 160V | 250V | Polypropylene (PP), Metallized | 2.5 mOhms | -40°C ~ 85°C | Through Hole | 0.945" Dia x 1.339" L (24.00mm x 34.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching | - | Low ESR, Low ESL |
|
564PMB122KSP2CAP FILM 0.56UF 1.2KVDC CHAS MT |
1,218 | - |
|
Datasheet | Rectangular Box | 0.56 µF | ±10% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 3.7 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673" L x 0.965" W (42.50mm x 24.50mm) | 1.083" (27.50mm) | Screw Terminals | - | DC Link, DC Filtering; High Frequency, Switching; Snubber | - | - |
|
32FD3702A-FCAP FILM 2UF 10% 370VAC RADIAL |
1,058 | - |
|
Datasheet | Radial, Can | 2 µF | ±10% | 370V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount, Requires Holder/Bracket | 2.156" L x 1.313" W (54.76mm x 33.35mm), Lip | - | Quick Connect, Disconnect | 0.813" (20.64mm) | Motor Run; Power Factor Correction (PFC) | - | - |
|

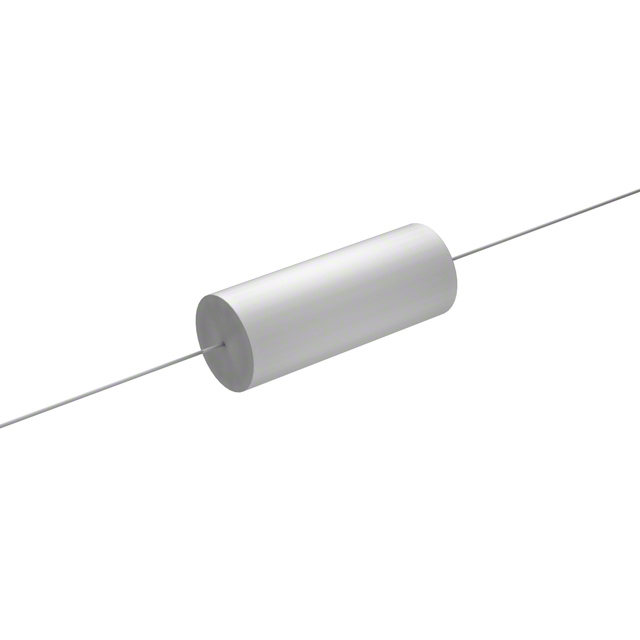

MMWA4W2K-FCAP FILM 2UF 10% 400VDC AXIAL |
380 | - |
|
Datasheet | Axial | 2 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.669" Dia x 1.748" L (17.00mm x 44.40mm) | - | PC Pins | - | General Purpose | - | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
