Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
168103K100A-FCAP FILM 10000PF 10% 100VDC RAD |
5,999 | - |
|
Datasheet | Radial | 10000 pF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|
168224J50C-FCAP FILM 0.22UF 5% 50VDC RADIAL |
4,964 | - |
|
Datasheet | Radial | 0.22 µF | ±5% | 30V | 50V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.138" W (7.20mm x 3.50mm) | 0.295" (7.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|

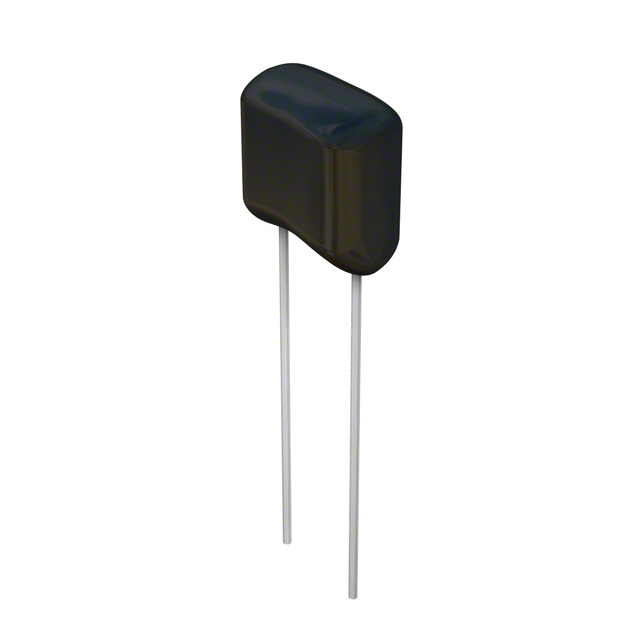

DME2P15K-FCAP FILM 0.15UF 10% 250VDC RAD |
3,011 | - |
|
Datasheet | Radial | 0.15 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.406" L x 0.236" W (10.30mm x 6.00mm) | 0.484" (12.30mm) | PC Pins | 0.295" (7.50mm) | General Purpose | - | - |
|

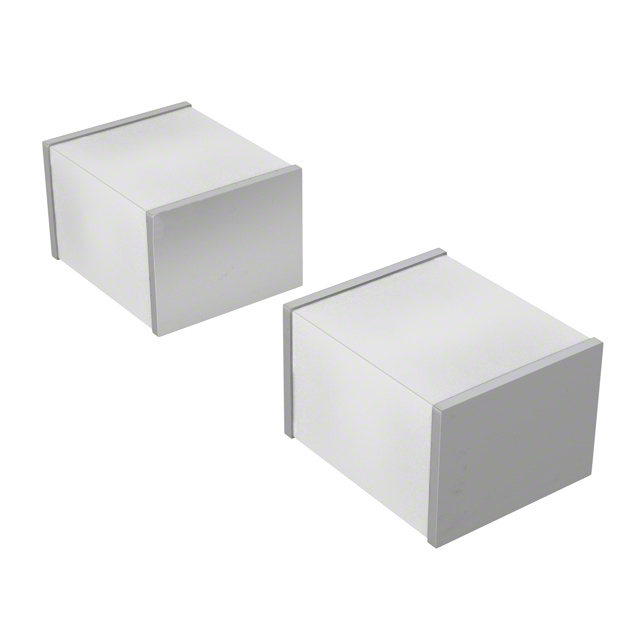

FCN2420G273J-BCAP FILM 0.027UF 5% 400VDC 2420 |
1,059 | - |
|
Datasheet | 2420 (6050 Metric) | 0.027 µF | ±5% | - | 400V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -40°C ~ 85°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.130" (3.30mm) | Solder Pads | - | General Purpose | - | - |
|
DME6S22K-FCAP FILM 0.022UF 10% 630VDC RAD |
695 | - |
|
Datasheet | Radial | 0.022 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.492" L x 0.217" W (12.50mm x 5.50mm) | 0.472" (12.00mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|
MPX155K305GCAP FILM 1.5UF 10% 305VAC RADIAL |
3,235 | - |
|
Datasheet | Radial | 1.5 µF | ±10% | 305V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.551" W (26.00mm x 14.00mm) | 0.965" (24.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|
167103J250A-FCAP FILM 10000PF 5% 250VDC RAD |
251 | - |
|
Datasheet | Radial | 10000 pF | ±5% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.413" L x 0.138" W (10.50mm x 3.50mm) | 0.276" (7.00mm) | PC Pins | 0.295" (7.50mm) | General Purpose | - | - |
.JPG "103PPB102K")
|
103PPB102KCAP FILM 10000PF 10% 1KVDC RAD |
1,346 | - |
|
Datasheet | Radial | 10000 pF | ±10% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.591" (15.00mm) | PC Pins | 0.886" (22.50mm) | Commutation; High Pulse, DV/DT; Snubber | - | - |
|
160223J630E-FCAP FILM 0.022UF 5% 630VDC RAD |
2,538 | - |
|
Datasheet | Radial | 0.022 µF | ±5% | 220V | 630V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|
DME4S33K-FCAP FILM 0.033UF 10% 400VDC RAD |
2,999 | - |
|
Datasheet | Radial | 0.033 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.406" L x 0.236" W (10.30mm x 6.00mm) | 0.413" (10.50mm) | PC Pins | 0.295" (7.50mm) | General Purpose | - | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
