Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BLH205K112A042DC LINK, THB, 85/85, AEC-Q200 |
240 | - |
|
Datasheet | Radial | 2 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 25 mOhms | -40°C ~ 105°C | Through Hole | 1.673" L x 0.787" W (42.50mm x 20.00mm) | 0.996" (25.30mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|
DME2W1P2K-FCAP FILM 1.2UF 10% 250VDC RADIAL |
401 | - |
|
Datasheet | Radial | 1.2 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.728" L x 0.315" W (18.50mm x 8.00mm) | 0.626" (15.90mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
715P682516LD3CAP FILM 6800PF 5% 1.6KVDC RAD |
3,352 | - |
|
Datasheet | Radial | 6800 pF | ±5% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.520" Dia x 1.252" L (13.20mm x 31.80mm) | 0.811" (20.60mm) | PC Pins | 0.720" (18.30mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
MPX335K305HCAP FILM 3.3UF 10% 305VAC RADIAL |
363 | - |
|
Datasheet | Radial | 3.3 µF | ±10% | 305V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.319" (33.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|
DMT4S1K-FCAP FILM 10000PF 10% 400VDC RAD |
479 | - |
|
Datasheet | Radial | 10000 pF | ±10% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.567" L x 0.331" W (14.40mm x 8.40mm) | 0.551" (14.00mm) | PC Pins | 0.402" (10.20mm) | General Purpose | - | - |
|
ALH155K251A022CAP FILM 1.5UF 10% 250VAC RADIAL |
148 | - |
|
Datasheet | Radial | 1.5 µF | ±10% | 250V | - | Polypropylene (PP) | 10 mOhms | -40°C ~ 105°C | Through Hole | 1.260" L x 0.433" W (32.00mm x 11.00mm) | 0.819" (20.80mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|

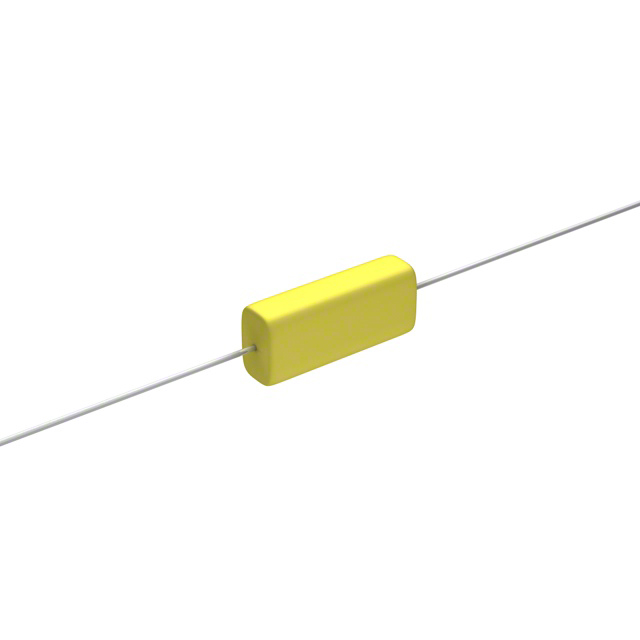

MMP2P47K-FCAP FILM 0.47UF 10% 250VDC AXIAL |
1,000 | - |
|
Datasheet | Axial | 0.47 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.433" W, 0.276" T x 0.984" L (11.00mm, 7.00mm x 25.00mm) | - | PC Pins | - | General Purpose | - | Long Life |
|
WMF1P33K-FCAP FILM 0.33UF 10% 100VDC AXIAL |
1,959 | - |
|
Datasheet | Axial | 0.33 µF | ±10% | - | 100V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.413" Dia x 1.185" L (10.50mm x 30.10mm) | - | PC Pins | - | General Purpose | - | - |
|

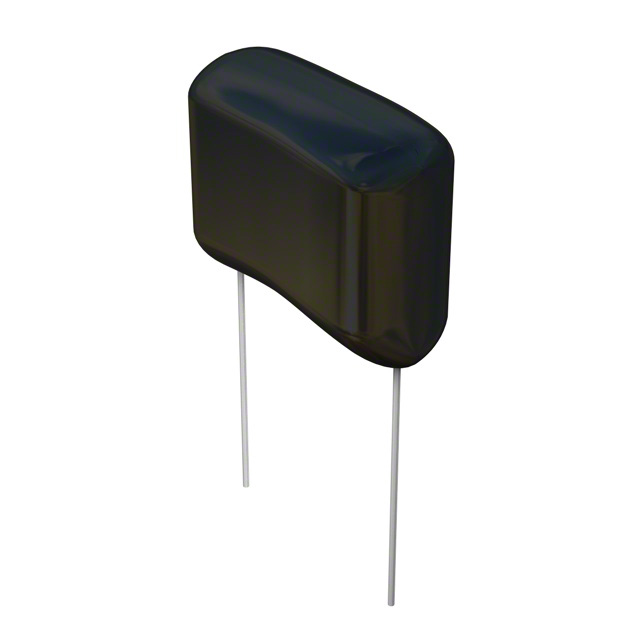

DME10P22K-FCAP FILM 0.22UF 10% 1KVDC RADIAL |
945 | - |
|
Datasheet | Radial | 0.22 µF | ±10% | 250V | 1000V (1kV) | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 1.024" L x 0.472" W (26.00mm x 12.00mm) | 0.906" (23.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
|
ALH105K251A022CAP FILM 1UF 10% 250VAC RADIAL |
487 | - |
|
Datasheet | Radial | 1 µF | ±10% | 250V | - | Polypropylene (PP) | 14 mOhms | -40°C ~ 105°C | Through Hole | 1.260" L x 0.433" W (32.00mm x 11.00mm) | 0.819" (20.80mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
