Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BLH156K801B084DC LINK, THB, 85/85, AEC-Q200 |
168 | - |
|
Datasheet | Radial - 4 Leads | 15 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 8 mOhms | -40°C ~ 105°C | Through Hole | 1.673" L x 0.787" W (42.50mm x 20.00mm) | 1.606" (40.80mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|
105PHB850K4HCAP FILM 1UF 10% 850VDC RADIAL |
551 | - |
|
Datasheet | Radial - 4 Leads | 1 µF | ±10% | 450V | 850V | Polypropylene (PP), Metallized | 2.4 mOhms | -40°C ~ 100°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.457" (37.00mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching | - | - |
|
DME2W6P8K-FCAP FILM 6.8UF 10% 250VDC RADIAL |
474 | - |
|
Datasheet | Radial | 6.8 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 1.220" L x 0.531" W (31.00mm x 13.50mm) | 0.886" (22.50mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|

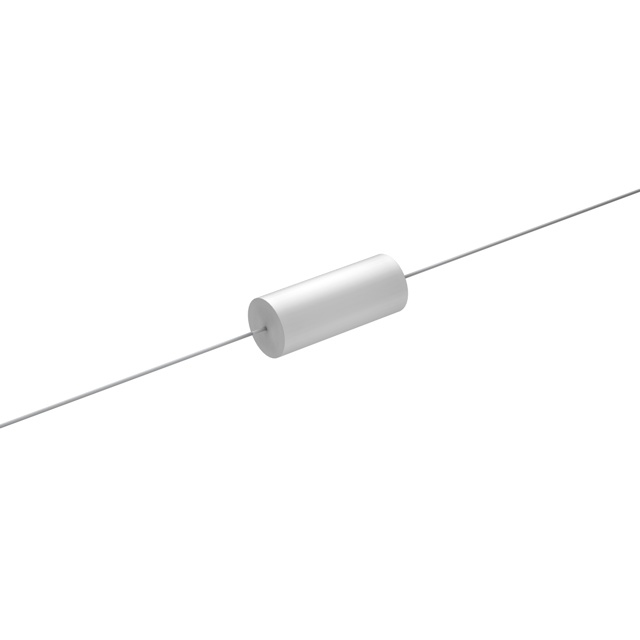

MMWA2W1K-FCAP FILM 1UF 10% 250VDC AXIAL |
225 | - |
|
Datasheet | Axial | 1 µF | ±10% | 125V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.429" Dia x 1.063" L (10.90mm x 27.00mm) | - | PC Pins | - | General Purpose | - | - |
|
BLC220J701B4CCAP FILM 22UF 5% 700VDC RADIAL |
255 | - |
|
Datasheet | Radial - 4 Leads | 22 µF | ±5% | 230V | 700V | Polypropylene (PP), Metallized | 3.6 mOhms | -45°C ~ 85°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 1.732" (44.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | - |
|
|
Z26S6028M50NCAP FILM 28UF 3% 600VAC RADIAL |
179 | - |
|
Datasheet | Radial, Can | 28 µF | ±3% | 600V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount | 2.500" Dia (63.50mm) | 3.750" (95.25mm) | Quick Connect, Disconnect | - | General Purpose | - | Long Life |
|
935C1W20K-FCAP FILM 20UF 10% 100VDC AXIAL |
127 | - |
|
Datasheet | Axial | 20 µF | ±10% | 70V | 100V | Polypropylene (PP), Metallized | 8 mOhms | -55°C ~ 105°C | Through Hole | 0.874" Dia x 2.248" L (22.20mm x 57.10mm) | - | PC Pins | - | High Frequency, Switching | - | - |
|
|
474K500CS6G-FACAP FILM 0.47UF 10% 500VDC 8SMD |
139 | - |
|
Datasheet | 8-SMD, Gull Wing | 0.47 µF | ±10% | - | 500V | Polymer, Metallized | 11 mOhms | -55°C ~ 125°C | Surface Mount | 0.701" L x 0.625" W (17.80mm x 15.90mm) | 0.319" (8.10mm) | Gull Wing | 0.591" (15.00mm) | DC Link, DC Filtering; High Frequency, Switching | - | Low ESR, Low ESL |
|
UNL7W20K-FCAP FILM 20UF 10% 750VDC RADIAL |
166 | - |
|
Datasheet | Radial, Can | 20 µF | ±10% | - | 750V | Polypropylene (PP), Metallized | 10 mOhms | -55°C ~ 105°C | Through Hole | 1.378" Dia (35.00mm) | 2.134" (54.20mm) | PC Pins | 0.500" (12.70mm) | General Purpose | - | Low ESR |
|

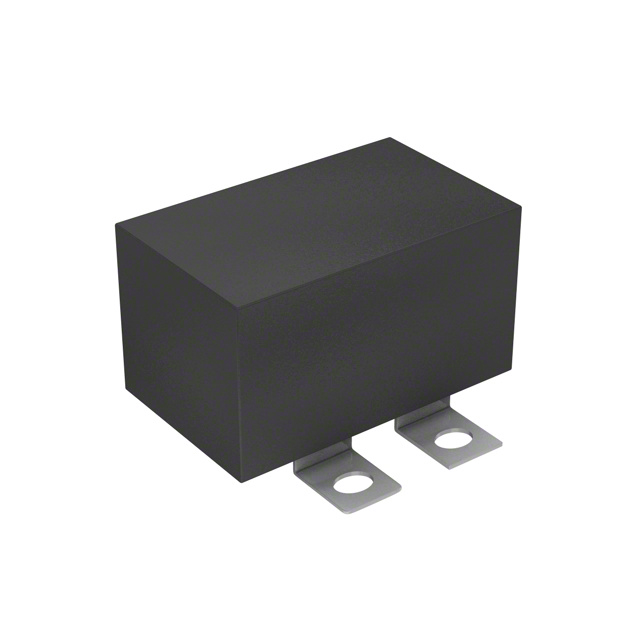

SCD155K162A3Z25-FCAP FILM 1.5UF 10% 1.6KVDC SCREW |
11 | - |
|
Datasheet | Rectangular Box | 1.5 µF | ±10% | 630V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 85°C | Chassis Mount | 2.701" L x 1.650" W (68.60mm x 41.90mm) | 1.500" (38.10mm) | Screw Terminals | 1.000" (25.40mm) | Snubber | - | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
