Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

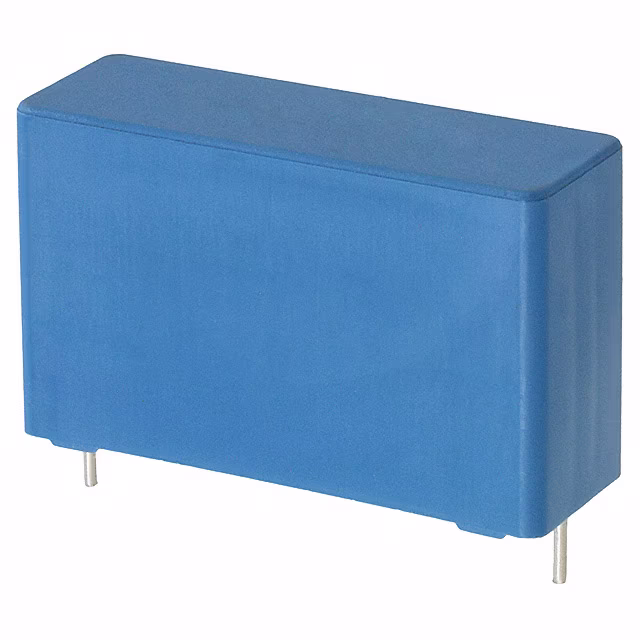

B32026A3474M000CAP FILM 0.47UF 20% 1.5KVDC RAD |
3,464 | - |
|
Datasheet | Radial | 0.47 µF | ±20% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634" L x 0.551" W (41.50mm x 14.00mm) | 0.984" (25.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | Y2 | - |
|
B32674D6475K000CAP FILM 4.7UF 10% 630VDC RADIAL |
2,252 | - |
|
Datasheet | Radial | 4.7 µF | ±10% | - | 630V | Polypropylene (PP), Metallized | 6 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.437" (36.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | AEC-Q200 | Long Life |
|
|
B32676E8225K000CAP FILM 2.2UF 10% 875VDC RADIAL |
1,512 | - |
|
Datasheet | Radial | 2.2 µF | ±10% | - | 875V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.654" L x 0.630" W (42.00mm x 16.00mm) | 1.122" (28.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
|
|
B32674D3805K000CAP FILM 8UF 10% 300VDC RADIAL |
600 | - |
|
Datasheet | Radial | 8 µF | ±10% | - | 300V | Polypropylene (PP), Metallized | 5.6 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.630" W (31.50mm x 16.00mm) | 1.260" (32.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | AEC-Q200 | Long Life |
|
|
B32674D6505K000CAP FILM 5UF 10% 630VDC RADIAL |
564 | - |
|
Datasheet | Radial | 5 µF | ±10% | - | 630V | Polypropylene (PP), Metallized | 5.8 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.437" (36.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | AEC-Q200 | Long Life |
|
B32924H3475MCAP FILM 4.7UF 20% 630VDC RADIAL |
457 | - |
|
Datasheet | Radial | 4.7 µF | ±20% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.437" (36.50mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | 85C/85% Humidity |
|
B32024B3684K000CAP FILM 0.68UF 10% 1.5KVDC RAD |
315 | - |
|
Datasheet | Radial | 0.68 µF | ±10% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.299" (33.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | Y2 | - |
|
B32774D0505J000CAP FILM 5UF 5% 1.1KVDC RADIAL |
1,604 | - |
|
Datasheet | Radial | 5 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 10.9 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.748" W (31.50mm x 19.00mm) | 1.181" (30.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | Long Life |
|
B32776Y7605K000FILM CAP MKP DC FILTERING - 1100 |
686 | - |
|
Datasheet | Radial | 6 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 17.2 mOhms | -55°C ~ 125°C | Through Hole | 1.654" L x 0.787" W (42.00mm x 20.00mm) | 1.555" (39.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
|
|
B32674D4685K000CAP FILM 6.8UF 10% 450VDC RADIAL |
605 | - |
|
Datasheet | Radial | 6.8 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | 5.4 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.437" (36.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | AEC-Q200 | Long Life |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
