Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32776T0395K000CAP FILM 3.9UF 10% 1.1KVDC RAD |
1,975 | - |
|
Datasheet | Radial | 3.9 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 30.5 mOhms | -40°C ~ 105°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 0.591" (15.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
|
B32716H9206K000MKP DC FILTERING - 900VDC, 20UF |
175 | - |
|
Datasheet | Radial - 4 Leads | 20 µF | ±10% | - | 900V | Polypropylene (PP), Metallized | 4.3 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.102" W (42.00mm x 28.00mm) | 1.457" (37.00mm) | PC Pins | 1.476" (37.50mm) | Automotive | AEC-Q200 | Long Life |
|
|
B32716H8306K000MKP DC FILTERING - 800VDC, 30UF |
400 | - |
|
Datasheet | Radial - 4 Leads | 30 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 3.3 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | Automotive | AEC-Q200 | Long Life |
|

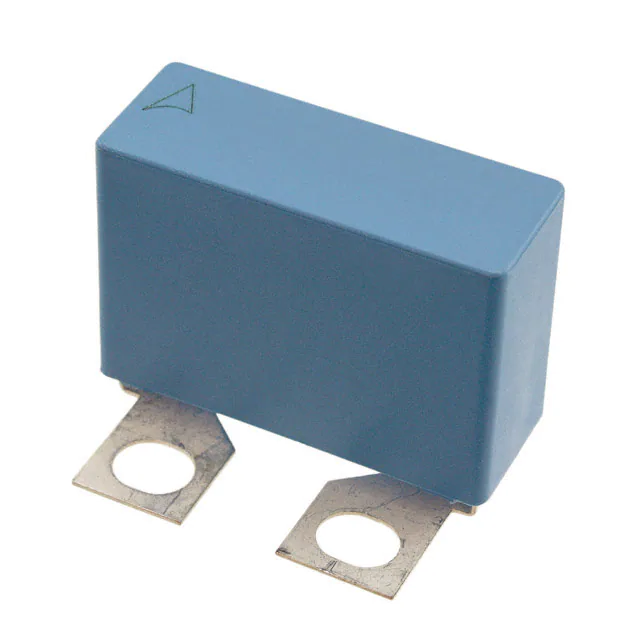

B32656S1224K565CAP FILM 0.22UF 10% 1.7KVDC SCRW |
186 | - |
|
Datasheet | Rectangular Box | 0.22 µF | ±10% | 750V | 1700V (1.7kV) | Polypropylene (PP), Metallized | 10 mOhms | -55°C ~ 100°C | Chassis Mount | 1.654" L x 0.630" W (42.00mm x 16.00mm) | 1.122" (28.50mm) | Screw Terminals | 0.866" (22.00mm) | Snubber | AEC-Q200 | Low ESL |
|
B32686A1154J000CAP FILM 0.15UF 5% 1.6KVDC RAD |
128 | - |
|
Datasheet | Radial | 0.15 µF | ±5% | 450V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.654" L x 0.787" W (42.00mm x 20.00mm) | 1.555" (39.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
B33331V7805J080CAP FILM 8UF 5% 460VAC RADIAL |
390 | - |
|
Datasheet | Radial, Can | 8 µF | ±5% | 460V | - | Polypropylene (PP), Metallized | 17 mOhms | -40°C ~ 85°C | Chassis Mount | 1.181" Dia (30.00mm) | 2.638" (67.00mm) | Quick Connect - 0.250" (6.3mm) | - | General Purpose | - | - |
|
B32524Q1336K000CAP FILM 33UF 10% 100VDC RADIAL |
968 | - |
|
Datasheet | Radial | 33 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.083" (27.50mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | - | - |
|
B32676E4156K000CAP FILM 15UF 10% 450VDC RADIAL |
2,175 | - |
|
Datasheet | Radial | 15 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.654" L x 1.102" W (42.00mm x 28.00mm) | 1.673" (42.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
|
B32654A6335K000CAP FILM 3.3UF 10% 630VDC RADIAL |
104 | - |
|
Datasheet | Radial | 3.3 µF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.437" (36.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|
B32756G3126K000CAP FILM 12UF 10% 630VDC RADIAL |
560 | - |
|
Datasheet | Radial - 4 Leads | 12 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | 5.3 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 0.866" W (42.00mm x 22.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | General Purpose | - | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
