Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32776Z7126K000FILM CAP MKP DC FILTERING - 1100 |
440 | - |
|
Datasheet | Radial - 4 Leads | 12 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 8.5 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.102" W (42.00mm x 28.00mm) | 1.673" (42.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
|
B32654A0155K000CAP FILM 1.5UF 10% 1KVDC RADIAL |
138 | - |
|
Datasheet | Radial | 1.5 µF | ±10% | 250V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.437" (36.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
B32320I1655K0006.5MFD 1300V PP 35X53 PBT 5 PIN |
151 | - |
|
Datasheet | Radial, Can - 5 Lead | 6.5 µF | ±10% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 4.9 mOhms | -40°C ~ 85°C | Through Hole | 1.378" Dia (35.00mm) | 2.087" (53.00mm) | Solder Lug | - | General Purpose | - | Long Life |
|
B32656A0684K000CAP FILM 0.68UF 10% 1KVDC RADIAL |
732 | - |
|
Datasheet | Radial | 0.68 µF | ±10% | 500V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.654" L x 0.630" W (42.00mm x 16.00mm) | 1.122" (28.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|
|
B32656T2124K000CAP FILM 0.12UF 10% 2KVDC RADIAL |
756 | - |
|
Datasheet | Radial | 0.12 µF | ±10% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 0.748" (19.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|
|
B32914A5155K000CAP FILM 1.5UF 10% 530VAC RADIAL |
862 | - |
|
Datasheet | Radial | 1.5 µF | ±10% | 530V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.437" (36.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
|
B32776Z0146K000FILM CAP MKP DC FILTERING - 1000 |
379 | - |
|
Datasheet | Radial - 4 Leads | 14 µF | ±10% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 8.7 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.102" W (42.00mm x 28.00mm) | 1.673" (42.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
|
B32926H3685MCAP FILM 6.8UF 20% 630VDC RADIAL |
8,232 | - |
|
Datasheet | Radial | 6.8 µF | ±20% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.654" L x 0.787" W (42.00mm x 20.00mm) | 1.555" (39.50mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | 85C/85% Humidity |
|
|
B32656T2104K000CAP FILM 0.1UF 10% 2KVDC RADIAL |
1,009 | - |
|
Datasheet | Radial | 0.1 µF | ±10% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 0.748" (19.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|

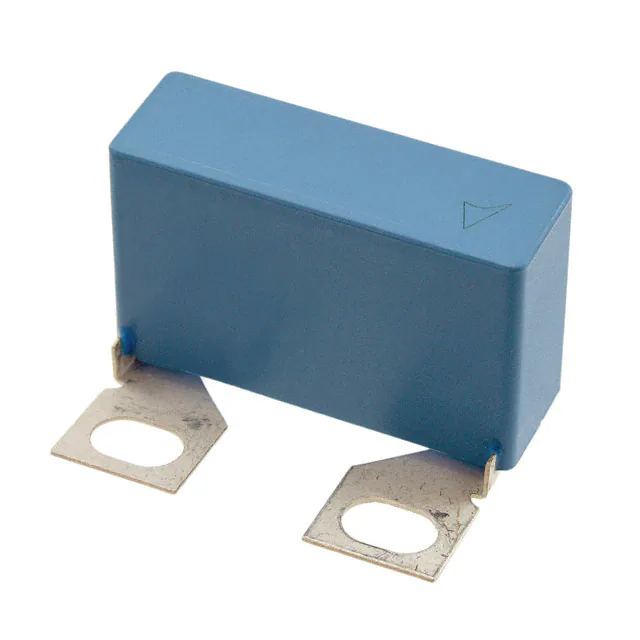

B32656S0474K564CAP FILM 0.47UF 10% 1KVDC SCREW |
264 | - |
|
Datasheet | Rectangular Box | 0.47 µF | ±10% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | 10 mOhms | -55°C ~ 100°C | Chassis Mount | 1.654" L x 0.551" W (42.00mm x 14.00mm) | 0.984" (25.00mm) | Screw Terminals | 1.102" (28.00mm) | Snubber | AEC-Q200 | Low ESL |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
