Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32678G8106K000CAP FILM 10UF 10% 875VDC RADIAL |
900 | - |
|
Datasheet | Radial | 10 µF | ±10% | - | 875V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Long Life |
|
B32656S8155K561CAP FILM 1.5UF 10% 850VDC SCREW |
157 | - |
|
Datasheet | Rectangular Box | 1.5 µF | ±10% | 450V | 850V | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 100°C | Chassis Mount | 1.717" L x 1.220" W (43.60mm x 31.00mm) | 1.043" (26.50mm) | Screw Terminals | 1.004" (25.50mm) | Snubber | AEC-Q200 | Low ESL |
|
B32778P8206K000CAP FILM 20UF 10% 840VDC RADIAL |
280 | - |
|
Datasheet | Radial | 20 µF | ±10% | - | 840V | Polypropylene (PP), Metallized | 5.1 mOhms | -40°C ~ 125°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 2.067" (52.50mm) | Automotive | AEC-Q200 | - |
|
B32924B4335K000CAP FILM 3.3UF 10% 650VDC RADIAL |
230 | - |
|
Datasheet | Radial | 3.3 µF | ±10% | 350V | 650V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.890" (48.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | 85C/85% Humidity |
|
B32778Z0306K000CAP FILM 30UF 1KVDC RDL 4 LEAD |
206 | - |
|
Datasheet | Radial - 4 Leads | 30 µF | ±10% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 8.2 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Long Life |
|

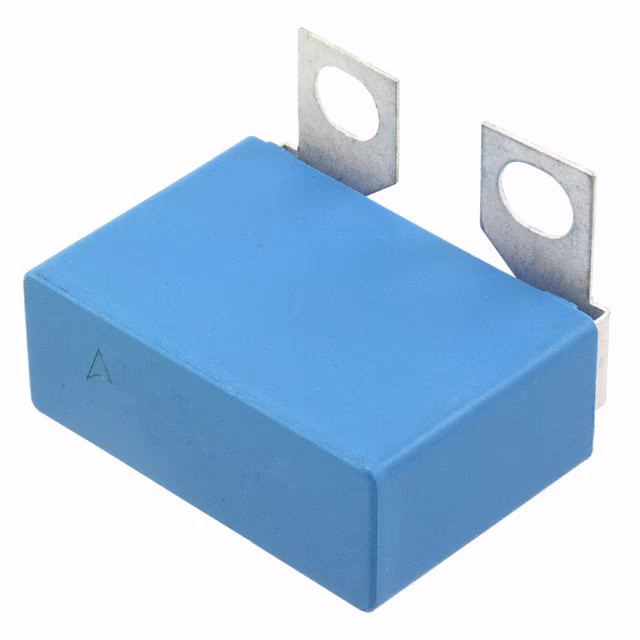

B32656S0684K565CAP FILM 0.68UF 10% 1KVDC SCREW |
186 | - |
|
Datasheet | Rectangular Box | 0.68 µF | ±10% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | 6 mOhms | -55°C ~ 100°C | Chassis Mount | 1.654" L x 0.630" W (42.00mm x 16.00mm) | 1.122" (28.50mm) | Screw Terminals | 0.866" (22.00mm) | Snubber | AEC-Q200 | Low ESL |
|
B32778H0306K000CAP FILM 30UF 10% 920VDC RADIAL |
135 | - |
|
Datasheet | Radial - 4 Leads | 30 µF | ±10% | - | 920V | Polypropylene (PP), Metallized | 8.2 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | AEC-Q200 | Long Life |
|
B32776T4126K000CAP FILM 12UF 10% 450VDC RADIAL |
932 | - |
|
Datasheet | Radial | 12 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | 17.1 mOhms | -40°C ~ 105°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 0.591" (15.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
|
|
B32778Z5556K000CAP FILM 55UF 600VDC RDL 4 LEAD |
268 | - |
|
Datasheet | Radial - 4 Leads | 55 µF | ±10% | - | 600V | Polypropylene (PP), Metallized | 6.5 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Long Life |
|
B32926A4825M000CAP FILM 8.2UF 20% 650VDC RADIAL |
681 | - |
|
Datasheet | Radial | 8.2 µF | ±20% | 350V | 650V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X2 | 85C/85% Humidity |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
