Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32653A3684J000CAP FILM 0.68UF 5% 250VDC RADIAL |
5,783 | - |
|
Datasheet | Radial | 0.68 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | AEC-Q200 | - |
|
B32673Z6105J000CAP FILM 1UF 5% 630VDC RADIAL |
6,657 | - |
|
Datasheet | Radial | 1 µF | ±5% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.807" (20.50mm) | PC Pins | 0.886" (22.50mm) | - | AEC-Q200 | - |
|
|
B32673Z6105K000CAP FILM 1UF 10% 630VDC RADIAL |
7,876 | - |
|
Datasheet | Radial | 1 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.807" (20.50mm) | PC Pins | 0.886" (22.50mm) | - | AEC-Q200 | - |
|

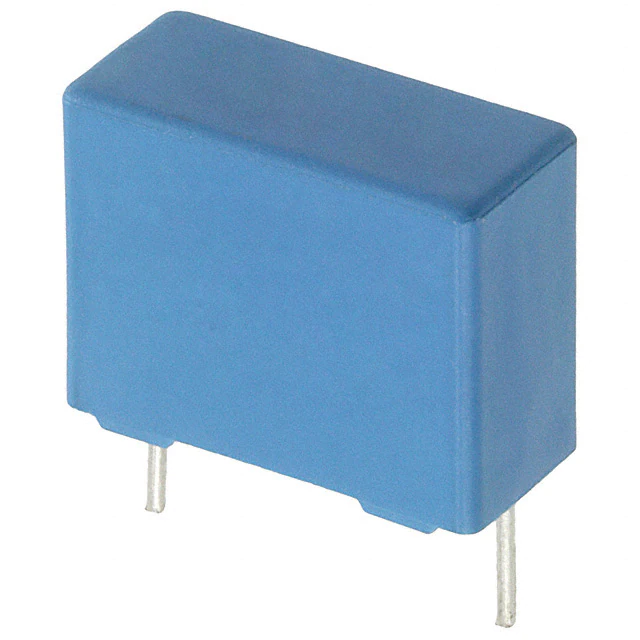

B32022A3563K000CAP FILM 0.056UF 10% 1.5KVDC RAD |
2,695 | - |
|
Datasheet | Radial | 0.056 µF | ±10% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.689" (17.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | Y2 | - |
|

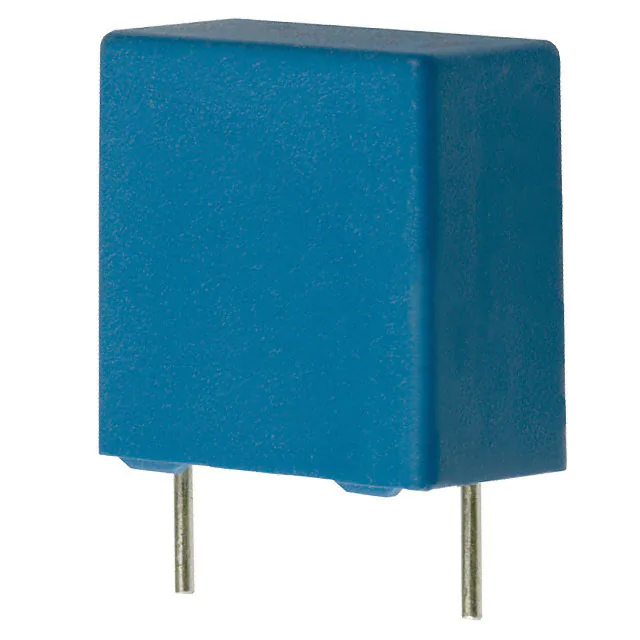

B32932B3394K000CAP FILM 0.39UF 10% 500VDC RAD |
8,676 | - |
|
Datasheet | Radial | 0.39 µF | ±10% | 305V | 500V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | - | - | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | X2 | 85C/85% Humidity |
|
B32933A3474M289CAP FILM 0.47UF 20% 305VAC RAD |
2,449 | - |
|
Datasheet | Radial | 0.47 µF | ±20% | 305V | - | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | 85C/85% Humidity |
|
B32643B6154J000CAP FILM 0.15UF 5% 630VDC RADIAL |
2,524 | - |
|
Datasheet | Radial | 0.15 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.630" (16.00mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
B32642B6124JCAP FILM 0.12UF 5% 630VDC RAD |
4,980 | - |
|
Datasheet | Radial | 0.12 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.689" (17.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
|
B32933B3474K289CAP FILM 0.47UF 10% 305VAC RAD |
9,257 | - |
|
Datasheet | Radial | 0.47 µF | ±10% | 305V | - | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.043" L x 0.413" W (26.50mm x 10.50mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | 85C/85% Humidity |
|
|
B32653A2772J000CAP FILM 7700PF 5% 2KVDC RADIAL |
5,338 | - |
|
Datasheet | Radial | 7700 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | - | - | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
