Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32560J0225K289CAP FILM 2.2UF 10% 63VDC 2DIP |
9,454 | - |
|
Datasheet | 2-DIP | 2.2 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.354" L x 0.256" W (9.00mm x 6.50mm) | 0.323" (8.20mm) | PC Pins | 0.295" (7.50mm) | General Purpose | - | - |
|
B32653A7473J189CAP FILM 0.047UF 5% 1.25KVDC RAD |
3,530 | - |
|
Datasheet | Radial | 0.047 µF | ±5% | 500V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|
B32683A3332K000CAP FILM 3300PF 10% 2.5KVDC RAD |
8,143 | - |
|
Datasheet | Radial | 3300 pF | ±10% | 750V | 2500V (2.5kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT; Snubber | - | - |
|
B32933A3684M000CAP FILM 0.68UF 20% 305VAC RAD |
8,073 | - |
|
Datasheet | Radial | 0.68 µF | ±20% | 305V | - | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.043" L x 0.413" W (26.50mm x 10.50mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | 85C/85% Humidity |
|
|
B32642B4224K0000.22UF 10% 400V MMKP WOUND BOX |
7,039 | - |
|
Datasheet | Radial | 0.22 µF | ±10% | 250V | 400V | Polypropylene (PP), Metallized | 7 mOhms | -40°C ~ 85°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.689" (17.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
B32653A2822J000CAP FILM 8200PF 5% 2KVDC RADIAL |
5,478 | - |
|
Datasheet | Radial | 8200 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | - | - | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|
B32912B3334M289CAP FILM 0.33UF 20% 760VDC RAD |
5,841 | - |
|
Datasheet | Radial | 0.33 µF | ±20% | 330V | 760V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.689" (17.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X1 | - |
|

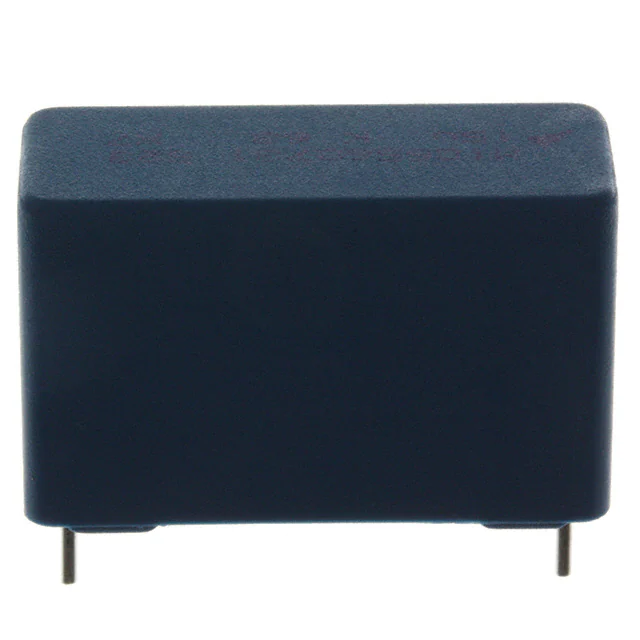

B32523Q6155J000CAP FILM 1.5UF 5% 400VDC RADIAL |
9,979 | - |
|
Datasheet | Radial | 1.5 µF | ±5% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.807" (20.50mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
|
B32523Q8334K000CAP FILM 0.33UF 10% 630VDC RAD |
8,396 | - |
|
Datasheet | Radial | 0.33 µF | ±10% | 200V | 630V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 1.043" L x 0.413" W (26.50mm x 10.50mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
|
B32653A3824K000CAP FILM 0.82UF 10% 250VDC RAD |
6,786 | - |
|
Datasheet | Radial | 0.82 µF | ±10% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | - | - | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
