Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32674D1684K000CAP FILM 0.68UF 10% 750VDC RAD |
623 | - |
|
Datasheet | Radial | 0.68 µF | ±10% | - | 750V | Polypropylene (PP), Metallized | 34.7 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.748" (19.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | AEC-Q200 | Long Life |
|
B32673P6225K000CAP FILM 2.2UF 10% 630VDC RADIAL |
399 | - |
|
Datasheet | Radial | 2.2 µF | ±10% | 200V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.043" L x 0.472" W (26.50mm x 12.00mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | Power Factor Correction (PFC) | - | - |
|
B32654A0334J000CAP FILM 0.33UF 5% 1KVDC RADIAL |
2,392 | - |
|
Datasheet | Radial | 0.33 µF | ±5% | 250V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | AEC-Q200 | - |
|
B32023B3104K000CAP FILM 0.1UF 10% 1.5KVDC RAD |
427 | - |
|
Datasheet | Radial | 0.1 µF | ±10% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.413" W (26.50mm x 10.50mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | Y2 | - |
|
B32523Q1475K000CAP FILM 4.7UF 10% 100VDC RADIAL |
3,001 | - |
|
Datasheet | Radial | 4.7 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.630" (16.00mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | - | - |
|
B32654A1104K000CAP FILM 0.1UF 10% 1.6KVDC RAD |
5,729 | - |
|
Datasheet | Radial | 0.1 µF | ±10% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.551" W (31.50mm x 14.00mm) | 0.965" (24.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | AEC-Q200 | - |
|
B32654A6105J000CAP FILM 1UF 5% 630VDC RADIAL |
6,511 | - |
|
Datasheet | Radial | 1 µF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.531" W (31.50mm x 13.50mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | AEC-Q200 | - |
|

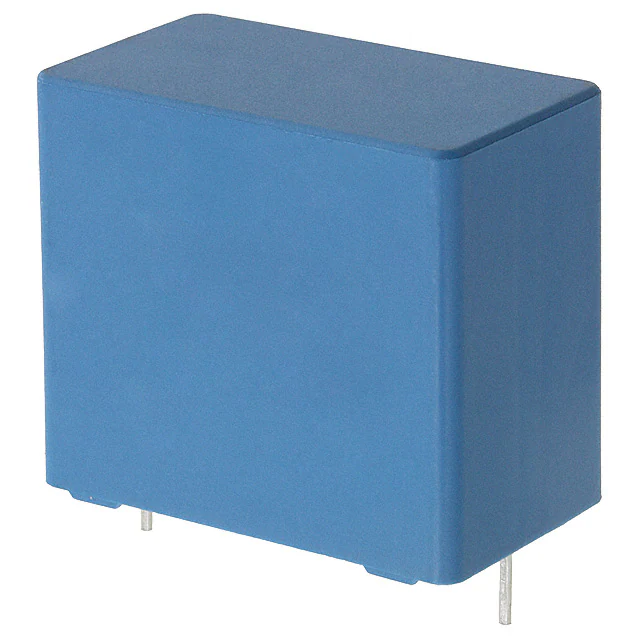

B32924C3335M000CAP FILM 3.3UF 20% 630VDC RADIAL |
3,984 | - |
|
Datasheet | Radial | 3.3 µF | ±20% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.083" (27.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
B32912A5104M000CAP FILM 0.1UF 20% 1KVDC RADIAL |
5,447 | - |
|
Datasheet | Radial | 0.1 µF | ±20% | 530V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.728" (18.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X1 | - |
|
|
B32674D1105K000CAP FILM 1UF 10% 750VDC RADIAL |
1,962 | - |
|
Datasheet | Radial | 1 µF | ±10% | - | 750V | Polypropylene (PP), Metallized | 24.2 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.492" W (31.50mm x 12.50mm) | 0.846" (21.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | AEC-Q200 | Long Life |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
