Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32562H1475K000CAP FILM 4.7UF 10% 100VDC 2DIP |
367 | - |
|
Datasheet | 2-DIP | 4.7 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.650" L x 0.287" W (16.50mm x 7.30mm) | 0.417" (10.60mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
B32754C2505K000CAP FILM 5UF 10% 500VDC RADIAL |
4,757 | - |
|
Datasheet | Radial | 5 µF | ±10% | 250V | 500V | Polypropylene (PP), Metallized | 6.9 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.630" W (31.50mm x 16.00mm) | 1.260" (32.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
B32654A1154J000CAP FILM 0.15UF 5% 1.6KVDC RAD |
876 | - |
|
Datasheet | Radial | 0.15 µF | ±5% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.083" (27.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | AEC-Q200 | - |
|

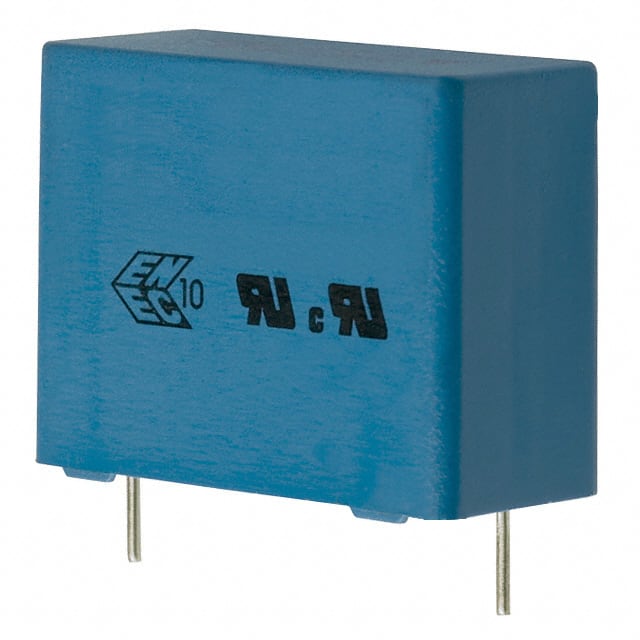

B32914A3105K000CAP FILM 1UF 10% 760VDC RADIAL |
1,542 | - |
|
Datasheet | Radial | 1 µF | ±10% | 330V | 760V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.531" W (31.50mm x 13.50mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
B32522C0106K189CAP FILM 10UF 10% 63VDC RADIAL |
13,238 | - |
|
Datasheet | Radial | 10 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.689" (17.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
|
B32654A7334J000CAP FILM 0.33UF 5% 1.25KVDC RAD |
16,121 | - |
|
Datasheet | Radial | 0.33 µF | ±5% | 500V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.083" (27.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | AEC-Q200 | - |
|
B32033A4224M000CAP FILM 0.22UF 20% 1KV RADIAL |
2,828 | - |
|
Datasheet | Radial | 0.22 µF | ±20% | 350V | 1000V (1kV) | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.571" W (26.50mm x 14.50mm) | 1.161" (29.50mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y2 | 85C/85% Humidity |
|
B32774D1155K000CAP FILM 1.5UF 10% 1.3KVDC RAD |
10,395 | - |
|
Datasheet | Radial | 1.5 µF | ±10% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 31.3 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.492" W (31.50mm x 12.50mm) | 0.846" (21.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | Long Life |
|
B32674D6225K000CAP FILM 2.2UF 10% 630VDC RADIAL |
6,165 | - |
|
Datasheet | Radial | 2.2 µF | ±10% | - | 630V | Polypropylene (PP), Metallized | 12.4 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 0.965" (24.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | AEC-Q200 | Long Life |
|
B32654A4225K000CAP FILM 2.2UF 10% 400VDC RADIAL |
401 | - |
|
Datasheet | Radial | 2.2 µF | ±10% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.551" W (31.50mm x 14.00mm) | 0.965" (24.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | AEC-Q200 | - |
