Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32914A5155M000CAP FILM 1.5UF 20% 1KVDC RADIAL |
8,377 | - |
|
Datasheet | Radial | 1.5 µF | ±20% | 530V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.437" (36.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
B32774D8126K000CAP FILM 12UF 10% 800VDC RADIAL |
5,997 | - |
|
Datasheet | Radial | 12 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 6.8 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.437" (36.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | Long Life |
|
B32916A3335M000CAP FILM 3.3UF 20% 760VDC RADIAL |
1,944 | - |
|
Datasheet | Radial | 3.3 µF | ±20% | 330V | 760V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634" L x 0.709" W (41.50mm x 18.00mm) | 1.280" (32.50mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X1 | - |
|
B32656A0105K000CAP FILM 1UF 10% 1KVDC RADIAL |
640 | - |
|
Datasheet | Radial | 1 µF | ±10% | 500V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.654" L x 0.787" W (42.00mm x 20.00mm) | 1.555" (39.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|

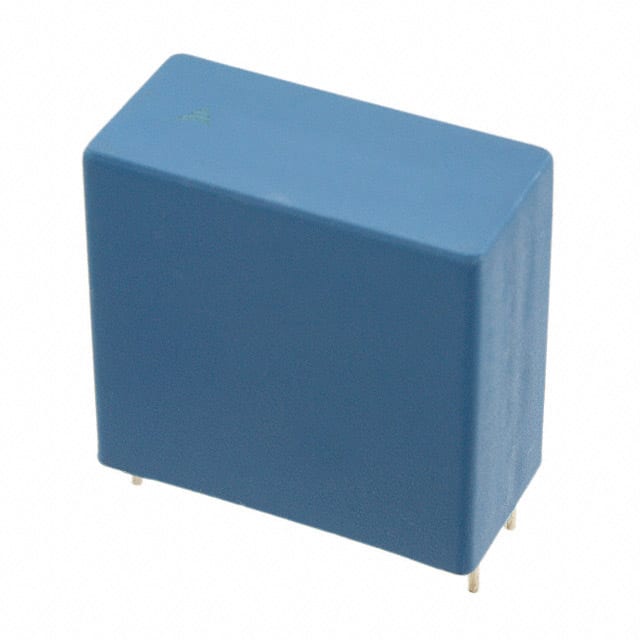

B32776G1805K000CAP FILM 8UF 1.3KVDC RAD 4 LEAD |
4,522 | - |
|
Datasheet | Radial - 4 Leads | 8 µF | ±10% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 12.1 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 0.787" W (42.00mm x 20.00mm) | 1.555" (39.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
|
B32926C3106M000CAP FILM 10UF 20% 630VDC RADIAL |
595 | - |
|
Datasheet | Radial | 10 µF | ±20% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 1.634" L x 1.102" W (41.50mm x 28.00mm) | 1.673" (42.50mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X2 | - |
|

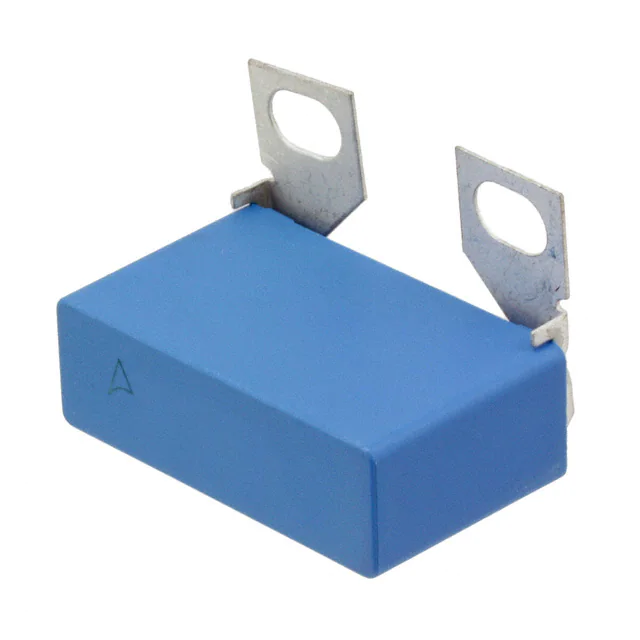

B32656S7224K564CAP FILM 0.22UF 1.25KVDC SCREW |
317 | - |
|
Datasheet | Rectangular Box | 0.22 µF | ±10% | 500V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 11.5 mOhms | -55°C ~ 100°C | Chassis Mount | - | - | Screw Terminals | 0.984" (25.00mm) | Snubber | - | Low ESL |
|
B32524Q1476K000CAP FILM 47UF 10% 100VDC RADIAL |
1,069 | - |
|
Datasheet | Radial | 47 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.827" W (31.50mm x 21.00mm) | 1.220" (31.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | - | - |
|
B32524R0476K000CAP FILM 47UF 10% 63VDC RADIAL |
511 | - |
|
Datasheet | Radial | 47 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.083" (27.50mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
B32524Q1686K000CAP FILM 68UF 10% 100VDC RADIAL |
2,347 | - |
|
Datasheet | Radial | 68 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.437" (36.50mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | - | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
