Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

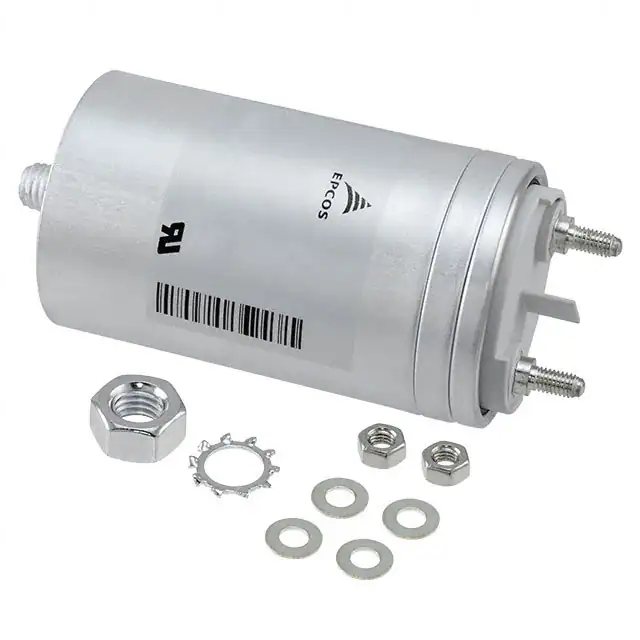

B32361B2207J050CAP FILM 200UF 5% 250VAC RADIAL |
881 | - |
|
Datasheet | Radial, Can | 200 µF | ±5% | 250V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis, Stud Mount | 2.500" Dia (63.50mm) | 5.669" (144.00mm) | Threaded, Male | 1.378" (35.00mm) | General Purpose | - | - |
|
B32362B3207J030CAP FILM 200UF 5% 330VAC RADIAL |
96 | - |
|
Datasheet | Radial, Can | 200 µF | ±5% | 330V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 5.984" (152.00mm) | Threaded, Male | 1.378" (35.00mm) | General Purpose | - | - |
|
B25620B1227K321CAP FILM 220UF 10% 1.32KVDC RAD |
187 | - |
|
Datasheet | Radial, Can | 220 µF | ±10% | - | 1320V (1.32kV) | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 5.039" (128.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|
B32362A4207J080CAP FILM 200UF 5% 480VAC RADIAL |
90 | - |
|
Datasheet | Radial, Can | 200 µF | ±5% | 480V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 9.724" (247.00mm) | Threaded, Male | 1.378" (35.00mm) | General Purpose | - | - |
|
|
B25690A3107K003100UF +-10% 3000V PEC MKP DC |
46 | - |
|
Datasheet | Radial, Can | 100 µF | ±10% | - | 3000V (3kV) | - | 1.4 mOhms | -40°C ~ 75°C | Chassis Mount | 4.567" Dia (116.00mm) | 6.929" (176.00mm) | Threaded, Female | 1.969" (50.00mm) | General Purpose | - | - |
|
|
B32362A3407J030CAP FILM 400UF 5% 330VAC RADIAL |
75 | - |
|
Datasheet | Radial, Can | 400 µF | ±5% | 330V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 10.512" (267.00mm) | Threaded, Male | 1.378" (35.00mm) | General Purpose | - | - |
|
B25674C5252J025CAP FILM 96.2UF 5% 525VAC RADIAL |
35 | - |
|
Datasheet | Radial, Can | 96.2 µF | ±5% | 525V | - | Polypropylene (PP), Metallized | - | -40°C ~ 60°C | Chassis Mount | 4.567" Dia (116.00mm) | 8.268" (210.00mm) | Screw Terminals | - | 3 Phase, Power Factor Correction (PFC) | - | - |
|
B25690A1128K103CAP FILM 1200UF 10% 1.1KV RADIAL |
264 | - |
|
Datasheet | Radial, Can | 1200 µF | ±10% | - | 1100V (1.1kV) | - | 1.2 mOhms | -40°C ~ 75°C | Chassis Mount | 4.567" Dia (116.00mm) | 9.055" (230.00mm) | Threaded, Female | 1.969" (50.00mm) | General Purpose | - | - |
|
|
B25620B0158K883CAP FILM 1500UF 10% 900VDC RAD |
134 | - |
|
Datasheet | Radial, Can | 1500 µF | ±10% | - | 900V | Polypropylene (PP), Metallized | - | -55°C ~ 75°C | Chassis, Stud Mount | 4.567" Dia (116.00mm) | 7.126" (181.00mm) | Threaded, Female | 1.969" (50.00mm) | DC Link, DC Filtering | - | - |
|
|
B25620B1108K323CAP FILM 1000UF 10% 1.32KVDC RAD |
229 | - |
|
Datasheet | Radial, Can | 1000 µF | ±10% | - | 1320V (1.32kV) | Polypropylene (PP), Metallized | - | -55°C ~ 75°C | Chassis, Stud Mount | 4.567" Dia (116.00mm) | 10.984" (279.00mm) | Threaded, Female | 1.969" (50.00mm) | DC Link, DC Filtering | - | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
