Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AM30-2R2K-RC2.2UH 10% AXIAL MOLDED INDUCTOR |
2,489 | - |
|
Datasheet | - | Axial | Bag | Active | Molded | - | 2.2 µH | ±10% | - | 485mA | Unshielded | 950mOhm Max | 33 @ 7.9MHz | 135MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | Axial | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
AM30-R33M-RC.33UH 10% AXIAL MOLDED INDUCTOR |
1,686 | - |
|
Datasheet | - | Axial | Tape & Reel (TR) | Active | Molded | - | 330 nH | ±20% | - | 1.58A | Unshielded | 90mOhm Max | 45 @ 25MHz | 360MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | Axial | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
RHC50-15-5R0K-RC5UH 10% 15AMP RADIAL HI. CURR. |
3,966 | - |
|
Datasheet | - | Radial, Horizontal Cylinder | Box | Active | - | - | 5 µH | ±10% | 15 A | 20A | Unshielded | 8mOhm Max | - | 30MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Radial, Horizontal Cylinder | 0.725" Dia x 1.375" L (18.42mm x 34.93mm) | - |
|

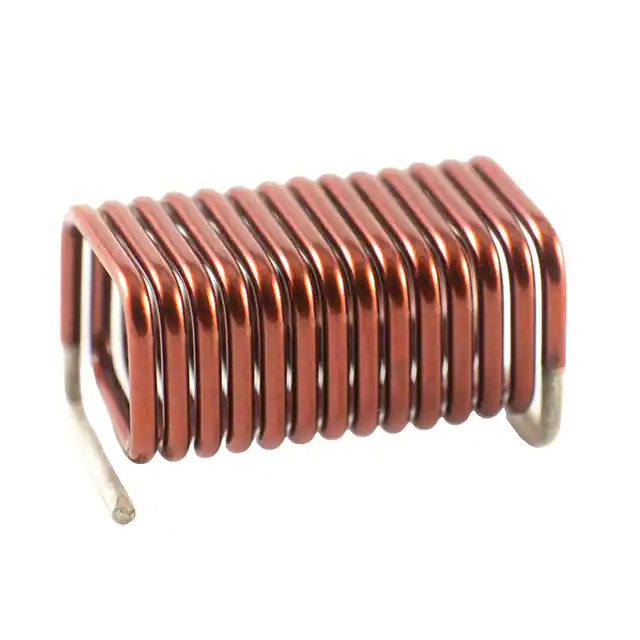

SQAC2929-501NJ-RC500NH 5% SMD SQ. AIR CORE IND. |
1,771 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 500 nH | ±5% | 4.3 A | - | Unshielded | 16.5mOhm Max | 180 @ 50MHz | 500MHz | - | -40°C ~ 125°C | 400 MHz | - | Surface Mount | - | 0.551" L x 0.295" W (14.00mm x 7.49mm) | 0.295" (7.49mm) |
|
SQAC1515-47NG-RC47NH 2% SQ. AIR CORE INDUCTOR |
3,958 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 47 nH | ±2% | 4.9 A | - | Unshielded | 6.35mOhm Max | 230 @ 400MHz | 1.87GHz | - | -40°C ~ 125°C | 400 MHz | - | Surface Mount | - | 0.160" L x 0.140" W (4.06mm x 3.56mm) | 0.154" (3.91mm) |
|
|
SQAC2929-431NJ-RC430NH 5% SMD SQ. AIR CORE IND. |
1,476 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 430 nH | ±5% | 4.2 A | - | Unshielded | 15.5mOhm Max | 180 @ 50MHz | 550MHz | - | -40°C ~ 125°C | 400 MHz | - | Surface Mount | - | 0.520" L x 0.295" W (13.21mm x 7.49mm) | 0.295" (7.49mm) |
|
|
RHC50-15-500K-RC50UH 10% 15AMP RADIAL HI.CURR. |
2,507 | - |
|
Datasheet | - | Radial, Horizontal Cylinder | Box | Active | - | - | 50 µH | ±10% | 15 A | 9A | Unshielded | 20mOhm Max | - | 4MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Radial, Horizontal Cylinder | 1.000" Dia x 1.625" L (25.40mm x 41.28mm) | - |
|
|
RHC50-3-270K-RC27UH 10% 3AMP RADIAL HI. CURR. |
3,107 | - |
|
Datasheet | - | Radial, Horizontal Cylinder | Box | Active | - | - | 27 µH | ±10% | 3 A | 15A | Unshielded | 35mOhm Max | - | 8MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Radial, Horizontal Cylinder | 0.811" Dia x 0.875" L (20.60mm x 22.23mm) | - |
|
|
SQAC1515-47NJ-RC47NH 5% SQ. AIR CORE INDUCTOR |
3,016 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 47 nH | ±5% | 4.9 A | - | Unshielded | 6.35mOhm Max | 230 @ 400MHz | 1.87GHz | - | -40°C ~ 125°C | 400 MHz | - | Surface Mount | - | 0.160" L x 0.140" W (4.06mm x 3.56mm) | 0.154" (3.91mm) |
|

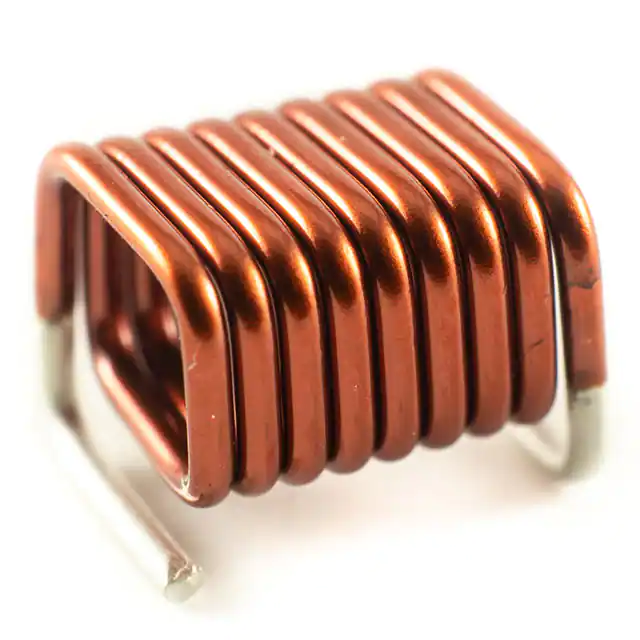

SQAC2222-161NJ-RC160NH 5% SQ. AIR CORE INDUCTOR |
4,761 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 160 nH | ±5% | 5.7 A | - | Unshielded | 8.25mOhm Max | 140 @ 50MHz | 1GHz | - | -40°C ~ 125°C | 400 MHz | - | Surface Mount | - | 0.290" L x 0.220" W (7.37mm x 5.59mm) | 0.234" (5.95mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
