Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMAC15-10G-RCFIXED IND 12.55NH 1.6A 14MOHM SM |
3,315 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 12.55 nH | ±2% | 1.6 A | - | Unshielded | 14mOhm Max | 100 @ 800MHz | 4.6GHz | - | -40°C ~ 125°C | 800 MHz | - | Surface Mount | - | 0.159" L x 0.054" W (4.04mm x 1.37mm) | 0.061" (1.55mm) |
|
SMAC25-47J-RCFIXED IND 47NH 3A 5.6 MOHM SMD |
2,625 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 47 nH | ±5% | 3 A | - | Unshielded | 5.6mOhm Max | 100 @ 150MHz | 2.1GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.190" L x 0.150" W (4.83mm x 3.81mm) | 0.165" (4.20mm) |
|
PCSV65-150M-RCFIXED IND 15UH 2.2A 6 MOHM SMD |
2,182 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±20% | 2.2 A | 3.4A | Shielded | 6mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|

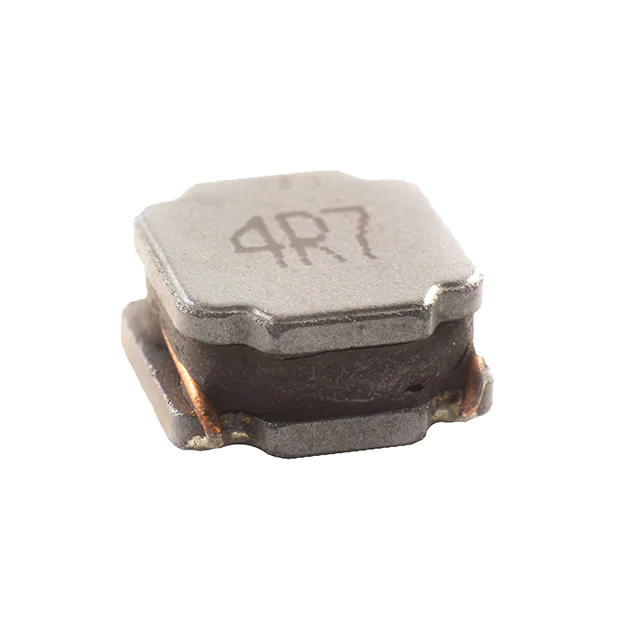

PCSV80-220M-RCFIXED IND 22UH 2.6A 80 MOHM SMD |
2,034 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 2.6 A | 2.8A | Shielded | 80mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
FWPQ2817H-150KFIXED IND 15UH 28A 2.82 MOHM TH |
2,624 | - |
|
Datasheet | - | Nonstandard | Tray | Active | Wirewound | - | 15 µH | ±10% | 28 A | 21.9A | Shielded | 2.82mOhm | - | 16MHz | - | -40°C ~ 85°C | 500 kHz | - | Through Hole | - | 1.102" L x 0.760" W (28.00mm x 19.30mm) | 0.906" (23.00mm) |
|

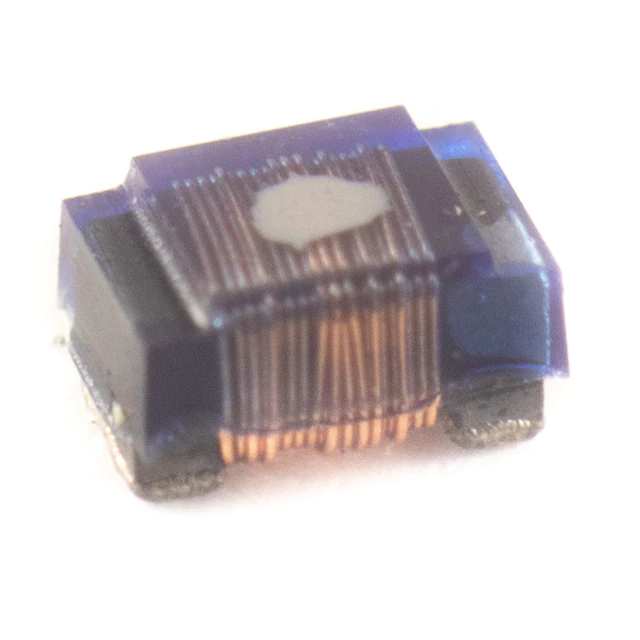

LS03-R47J-RC.47UH +/- 5% SMD INDUCTOR |
4,676 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±5% | 1.05 A | - | Unshielded | 620mOhm Max | 17 @ 7.9MHz | 720MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.071" L x 0.049" W (1.80mm x 1.25mm) | 0.040" (1.02mm) |
|

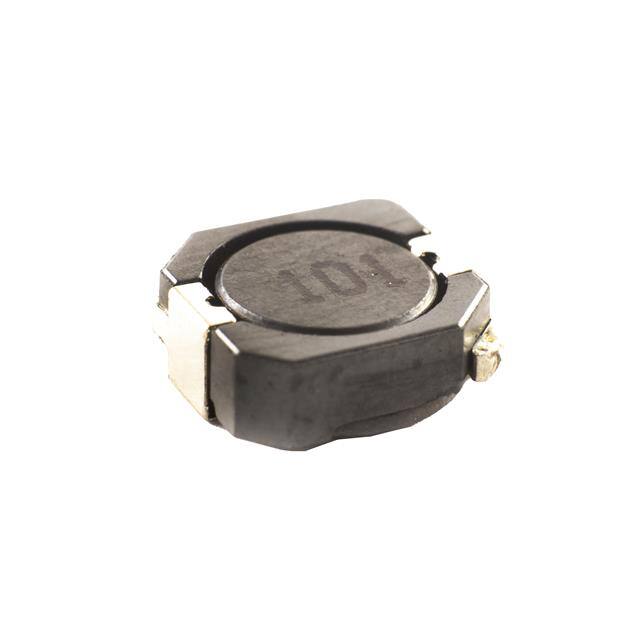

PCS104-150M-RC15UH +/-20% SMD INDUCTOR |
1,751 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 3.6 A | - | Shielded | 50mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.157" (4.00mm) |
|
PCSN5D33-680M-RC68UH +/_20% SMD INDUCTOR |
1,729 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | - | - | 68 µH | ±20% | 750 mA | - | Shielded | 380mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.138" (3.50mm) |
|
PCS125-101M-RC100UH +/-20% SMD INDUCTOR |
2,392 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±20% | 1.3 A | - | Shielded | 160mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
SQAC1515-82NJ-RC82NH SMD AIR CORE INDUCTOR |
1,774 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 82 nH | ±5% | 5.6 A | - | Unshielded | 9.4mOhm Max | 230 @ 400MHz | 1.79GHz | - | -40°C ~ 125°C | 400 MHz | - | Surface Mount | - | 0.230" L x 0.140" W (5.84mm x 3.56mm) | 0.154" (3.91mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
