Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MCHC40-102J-RC1000UH 5% Molded Chip Inductor |
3,278 | - |
|
Datasheet | MCHC40 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 mH | ±5% | - | 85mA | Unshielded | 15Ohm Max | 20 @ 252kHz | 1.8MHz | - | -40°C ~ 125°C | 252 kHz | - | Surface Mount | - | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.165" (4.20mm) |
|
|
MCHC40-103K-RC10mH 10% Molded Chip Inductor |
3,527 | - |
|
Datasheet | MCHC40 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 mH | ±10% | - | 25mA | Unshielded | 150Ohm Max | 20 @ 79.6kHz | 500kHz | - | -40°C ~ 125°C | 79.6 kHz | - | Surface Mount | - | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.165" (4.20mm) |
|
VTC230-101L-RC100uH +/-15% V.M. Toroidal Choke |
2,803 | - |
|
Datasheet | TC230 | Vertical, No Base, 2 PC Pin | Tray | Active | Toroidal | - | 100 µH | ±15% | 7 A | - | Unshielded | 37mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Vertical, No Base, 2 PC Pin | 1.280" Dia (32.51mm) | - |
|
|
VTC100-220K-RC22uH +/-10% V.M. Toroidal Choke |
2,431 | - |
|
Datasheet | TC100 | Vertical, No Base, 2 PC Pin | Tray | Active | Toroidal | - | 22 µH | ±10% | 3.5 A | 3.9A | Unshielded | 29mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Vertical, No Base, 2 PC Pin | 0.600" Dia (15.24mm) | - |
|
|
VTC230HT-2R7L-RC2.7uH +/-15% V.M. Toroidal Choke |
2,749 | - |
|
Datasheet | TC230HT | Vertical, No Base, 2 PC Pin | Tray | Active | Toroidal | - | 2.7 µH | ±15% | 31.6 A | - | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | Vertical, No Base, 2 PC Pin | 1.280" Dia (32.51mm) | - |
|
MLPC12-2R2M-RC2.2uH +/-20% Multilayer Pwr Chip |
1,452 | - |
|
Datasheet | MLPC12 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±20% | 1 A | - | Shielded | 130mOhm Max | - | - | - | -55°C ~ 125°C | 3 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
VTC3221-500-20A50uH @ 20A Vert. Mount Toroid |
2,011 | - |
|
Datasheet | VTC3221-500-20A | Vertical, No Base, 2 PC Pin | Tape & Reel (TR) | Active | Toroidal | - | 58.75 µH | ±12% | 20 A | - | Unshielded | 12mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Vertical, No Base, 2 PC Pin | 1.260" L x 0.827" W (32.00mm x 21.00mm) | 0.827" (21.00mm) |
|

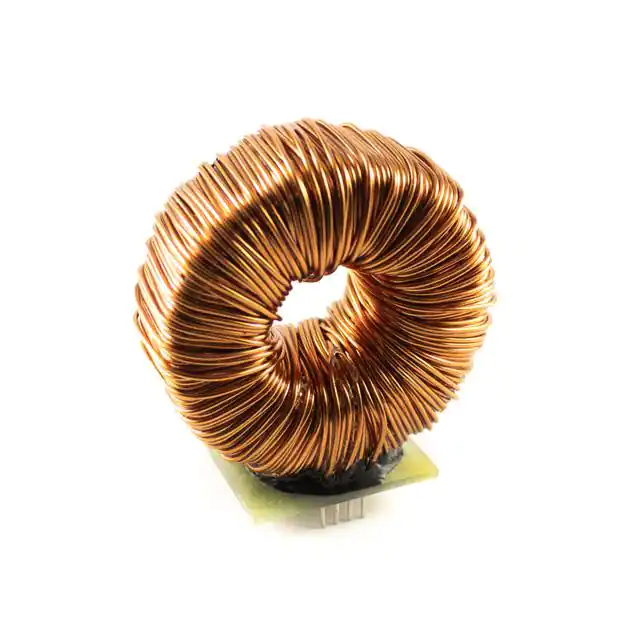

VTCB5427-431-10A570uh @ 16.5A Vert. Mount Toroid |
4,703 | - |
|
Datasheet | VTCB5427-431-10A | Vertical, 8 PC Pin | Tape & Reel (TR) | Active | Toroidal | - | 570 µH | ±15% | 16.5 A | - | Unshielded | 50mOhm Max | - | - | - | -20°C ~ 125°C | 10 kHz | - | Through Hole | Vertical, 8 PC Pin | 2.126" L x 1.102" W (54.00mm x 28.00mm) | 2.146" (54.50mm) |
|
FWPQ2817H-330K33uH+/-10% Flat Wire Pwr Induct. |
1,016 | - |
|
Datasheet | FWTPQ2817H | 2-SMD, Gull Wing | Tray | Active | Wirewound | - | 33 µH | ±10% | 28 A | 9.6A | Shielded | 2.82mOhm Max | - | 10MHz | - | -40°C ~ 85°C | 500 kHz | - | Surface Mount | 2-SMD | 1.102" L x 0.760" W (28.00mm x 19.30mm) | 0.669" (17.00mm) |
|
PCI30-151M-RC150uH +/-20% SMD Power Inductor |
4,915 | - |
|
Datasheet | PCI30 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 150 µH | ±20% | - | 740mA | Unshielded | 940mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.118" (3.00mm) |
