Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SBCP-14HY221BFIXED IND 220UH 1.05A 310MOHM TH |
345 | - |
|
Datasheet | SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 1.05 A | 2.2A | Unshielded | 310mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
|
SBC7-472-281FIXED IND 4.7MH 280MA 4.83OHM TH |
149 | - |
|
Datasheet | SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 4.7 mH | ±10% | 280 mA | 530mA | Unshielded | 4.83Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.591" Dia (15.00mm) | 0.689" (17.50mm) |
|
SBCP-80HY103HBFIXED IND 10MH 100MA 19.1 OHM TH |
105 | - |
|
Datasheet | SBCP | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 mH | ±10% | 100 mA | 150mA | Unshielded | 19.1Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.433" (11.00mm) |
|
SBCP-80HY470HFIXED IND 47UH 1.9A 130 MOHM TH |
2,042 | - |
|
Datasheet | SBCP | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 1.9 A | 2.2A | Unshielded | 130mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.433" (11.00mm) |
|
MPLC1040L2R2FIXED IND 2.2UH 10.5A 10MOHM SMD |
1,937 | - |
|
Datasheet | MPLC | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±20% | 10.5 A | 11A | Shielded | 10mOhm Max | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|

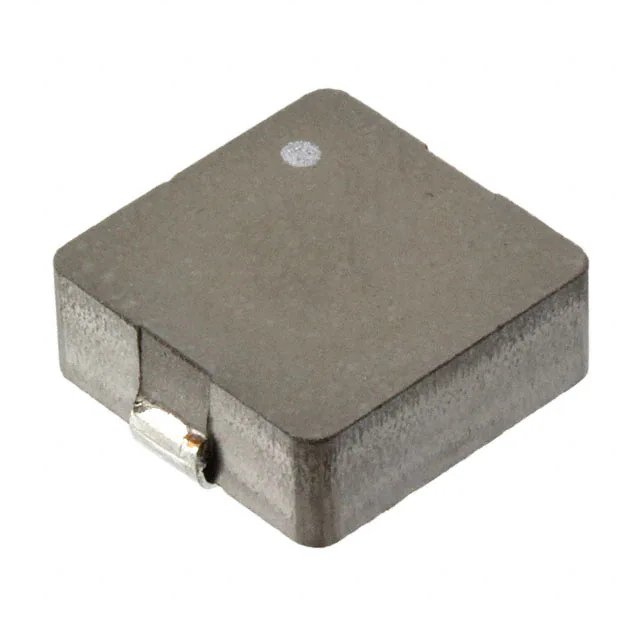

MPC1250LR50CFIXED IND 500NH 35A 0.8 MOHM SMD |
4,501 | - |
|
Datasheet | MPC | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | Ferrite | 500 nH | ±20% | 35 A | 40A | Shielded | 0.8mOhm | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.571" L x 0.492" W (14.50mm x 12.50mm) | 0.197" (5.00mm) |
|
|
SBC7-332-361FIXED IND 3.3MH 360MA 3.51OHM TH |
1,000 | - |
|
Datasheet | SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.3 mH | ±10% | 360 mA | 630mA | Unshielded | 3.51Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.591" Dia (15.00mm) | 0.551" (14.00mm) |
|

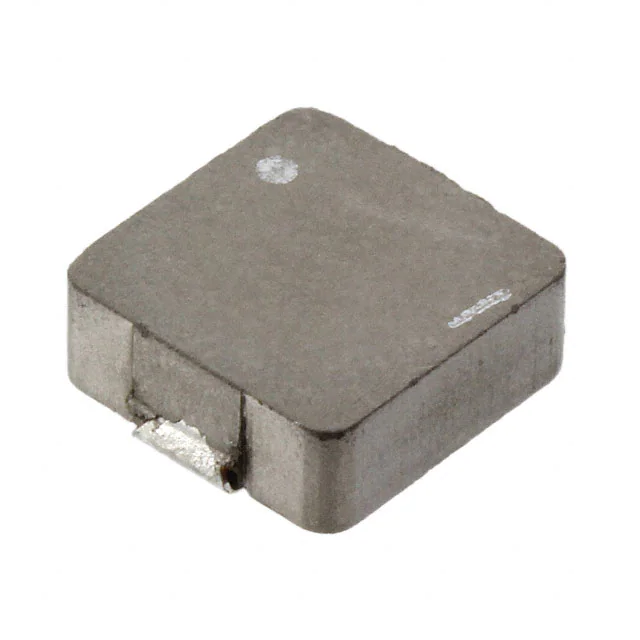

MPC1040LR45CFIXED IND 450NH 25A 1.1 MOHM SMD |
823 | - |
|
Datasheet | MPC | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | Ferrite | 450 nH | ±20% | 25 A | 27A | Shielded | 1.1mOhm Max | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
|
SBCP-80HY121HFIXED IND 120UH 1.1A 350 MOHM TH |
395 | - |
|
Datasheet | SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±10% | 1.1 A | 1.4A | Unshielded | 350mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.433" (11.00mm) |
|
SBCP-14HY101BFIXED IND 100UH 1.5A 140 MOHM TH |
236 | - |
|
Datasheet | SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 1.5 A | 3.1A | Unshielded | 140mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
