Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B1135AS-150M=P3FIXED IND 15UH 2.5A 64 MOHM SMD |
2,247 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.5 A | 2A | Shielded | 64mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2-SMD | 0.331" L x 0.327" W (8.40mm x 8.30mm) | 0.197" (5.00mm) |
|
|
B1135AS-101M=P3FIXED IND 100UH 1.1A 330MOHM SMD |
3,735 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1.1 A | 790mA | Shielded | 330mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2-SMD | 0.331" L x 0.327" W (8.40mm x 8.30mm) | 0.197" (5.00mm) |
|
FDSD0420-H-R68M=P3FIXED IND 680NH 6.5A 22MOHM SMD |
2,504 | - |
|
Datasheet | FDSD0420 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 680 nH | ±20% | 6.5 A | 8.3A | Shielded | 22mOhm Max | - | - | - | -20°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | 0.079" (2.00mm) |
|
FDSD0630-H-R68M=P3FIXED IND 680NH 9.61A 8.6MOHM SM |
4,139 | - |
|
Datasheet | FDSD0630 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 680 nH | ±20% | 9.61 A | 17A | Shielded | 8.6mOhm Max | - | - | - | -20°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|

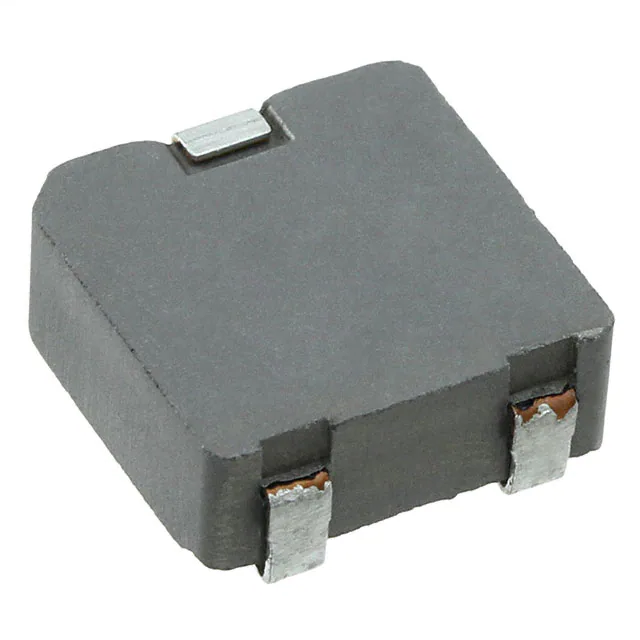

FDA1254-H-3R3M=P3FIXED IND 3.3UH 11.5A 7 MOHM SMD |
4,444 | - |
|
Datasheet | FDA1254 | Nonstandard, 3 Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 3.3 µH | ±20% | 11.5 A | 13.1A | Shielded | 7mOhm | - | - | - | -20°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.496" W (12.90mm x 12.60mm) | 0.213" (5.40mm) |
|
#A916CY-3R3M=P3FIXED IND 3.3UH 3.52A 26MOHM SMD |
3,887 | - |
|
Datasheet | D63CB | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3.3 µH | ±20% | 3.52 A | - | Shielded | 26mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.248" L x 0.244" W (6.30mm x 6.20mm) | 0.138" (3.50mm) |
|
LQW04CA60NK00DFIXED IND 60NH 620MA 180MOHM SMD |
4,400 | - |
|
Datasheet | LQW04 | 0302 (0805 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 60 nH | ±10% | 620 mA | - | Unshielded | 180mOhm Max | - | 3GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 03019 (0805 Metric) | 0.033" L x 0.020" W (0.85mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LQW04CA90NK00DFIXED IND 90NH 520MA 240MOHM SMD |
3,378 | - |
|
Datasheet | LQW04 | 0302 (0805 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 90 nH | ±10% | 520 mA | - | Unshielded | 240mOhm Max | - | 2.5GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 03019 (0805 Metric) | 0.033" L x 0.020" W (0.85mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LQW04CAR12K00DFIXED IND 120NH 510MA 280MOHM SM |
2,687 | - |
|
Datasheet | LQW04 | 0302 (0805 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 120 nH | ±10% | 510 mA | - | Unshielded | 280mOhm Max | - | 2.1GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 03019 (0805 Metric) | 0.033" L x 0.020" W (0.85mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LQW04CAR29K00DFIXED IND 290NH 270MA 940MOHM SM |
2,302 | - |
|
Datasheet | LQW04 | 0302 (0805 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 290 nH | ±10% | 270 mA | - | Unshielded | 940mOhm Max | - | 1.4GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 03019 (0805 Metric) | 0.033" L x 0.020" W (0.85mm x 0.50mm) | 0.022" (0.55mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
