Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DFE201208S-1R5M=P2FIXED IND 1.5UH 1.8A 120MOHM SMD |
1,827 | - |
|
Datasheet | DFE201208S | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 1.5 µH | ±20% | 1.8 A | 2.3A | Shielded | 120mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.031" (0.80mm) |
|
|
DFE201208S-2R2M=P2FIXED IND 2.2UH 1.4A 204MOHM SMD |
2,349 | - |
|
Datasheet | DFE201208S | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 1.4 A | 1.8A | Shielded | 204mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.031" (0.80mm) |
|
|
DFE201210S-1R5M=P2FIXED IND 1.5UH 2A 96 MOHM SMD |
1,265 | - |
|
Datasheet | DFE201210S | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 1.5 µH | ±20% | 2 A | 2.7A | Shielded | 96mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.039" (1.00mm) |
|
|
DFE201210S-2R2M=P2FIXED IND 2.2UH 1.5A 155MOHM SMD |
2,278 | - |
|
Datasheet | DFE201210S | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 1.5 A | 2.1A | Shielded | 155mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.039" (1.00mm) |
|
|
DFE201210S-R47M=P2FIXED IND 470NH 3.4A 32MOHM SMD |
2,595 | - |
|
Datasheet | DFE201210S | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 470 nH | ±20% | 3.4 A | 4.8A | Shielded | 32mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.039" (1.00mm) |
|
|
FDSD0415-H-4R7M=P3FIXED IND 4.7UH 2.1A 120MOHM SMD |
1,143 | - |
|
Datasheet | FDSD0415 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 2.1 A | 2.9A | Shielded | 120mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1515 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.059" (1.50mm) |
|
|
FDSD0415-H-R47M=P3FIXED IND 6.1A 18 MOHM SMD |
4,932 | - |
|
Datasheet | FDSD0415 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | - | ±20% | 6.1 A | 9A | Shielded | 18mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1515 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.059" (1.50mm) |
|

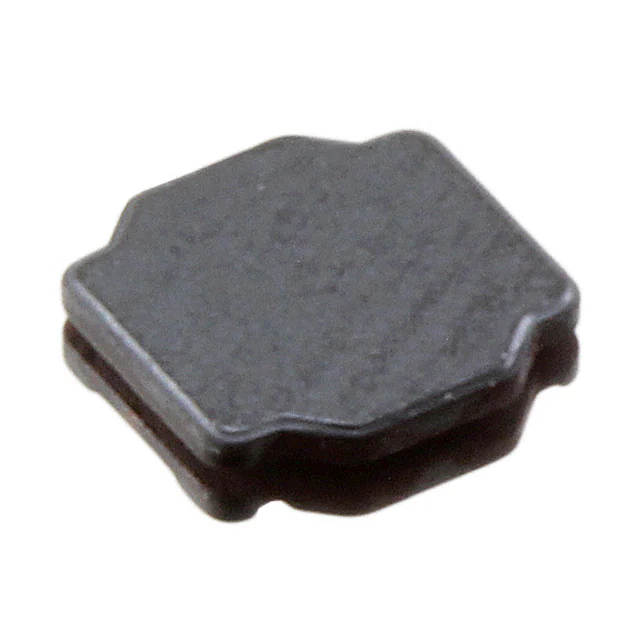

LQH44PZ2R2NGRLFIXED IND 2.2UH 2A 88.8MOHM SMD |
4,228 | - |
|
Datasheet | LQH44 | 1616 (4040 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 2 A | 1.6A | Shielded | 88.8mOhm Max | - | 45MHz | AEC-Q200 | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|
|
LQH44PZ6R8MGRLFIXED IND 6.8UH 1.4A 204MOHM SMD |
1,348 | - |
|
Datasheet | LQH44 | 1616 (4040 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.4 A | 850mA | Shielded | 204mOhm Max | - | 15MHz | AEC-Q200 | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|
|
FDSD0412-H-1R2M=P3FIXED IND |
4,744 | - |
|
Datasheet | * | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
