Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDRH4D22HPNP-560MCFIXED IND 56UH 480MA 810MOHM SMD |
1,975 | - |
|
Datasheet | CDRH4D22/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 56 µH | ±20% | 480 mA | 650mA | Shielded | 810mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.094" (2.40mm) |
|
CD75NP-150KCFIXED IND 15UH 1.8A 90 MOHM SMD |
1,575 | - |
|
Datasheet | CD75 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±10% | 1.8 A | - | Unshielded | 90mOhm Max | - | - | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
0518CDMCCDS-R68MCFIXED IND 680NH 9.5A 12.1MOHM SM |
1,496 | - |
|
Datasheet | 0518CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 680 nH | ±20% | 9.5 A | 11.5A | Shielded | 12.1mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.071" (1.80mm) |
|
CD54NP-390LCFIXED IND 39UH 800MA 320MOHM SMD |
18,685 | - |
|
Datasheet | CD54 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 39 µH | ±15% | 800 mA | - | Unshielded | 320mOhm Max | - | - | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|

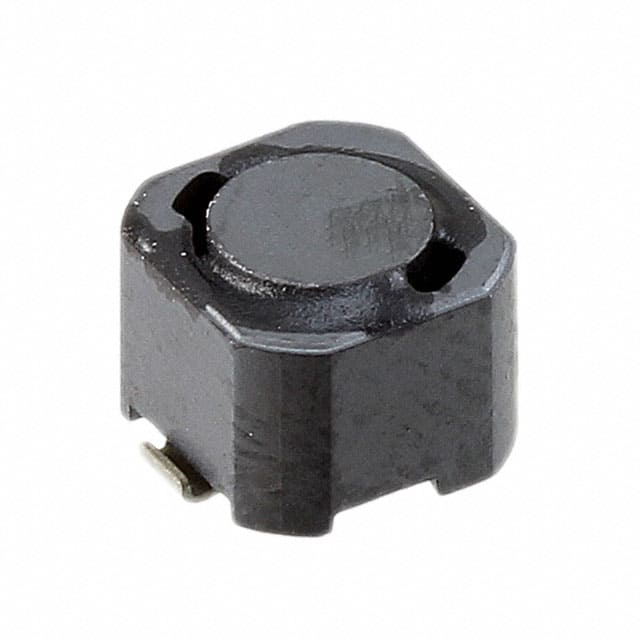

CDRH64BNP-471MC-BFIXED IND 470UH 200MA 3.93OHM SM |
3,175 | - |
|
Datasheet | CDRH64B | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 470 µH | ±20% | 200 mA | - | Shielded | 3.93Ohm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.244" L x 0.232" W (6.20mm x 5.90mm) | 0.197" (5.00mm) |
|

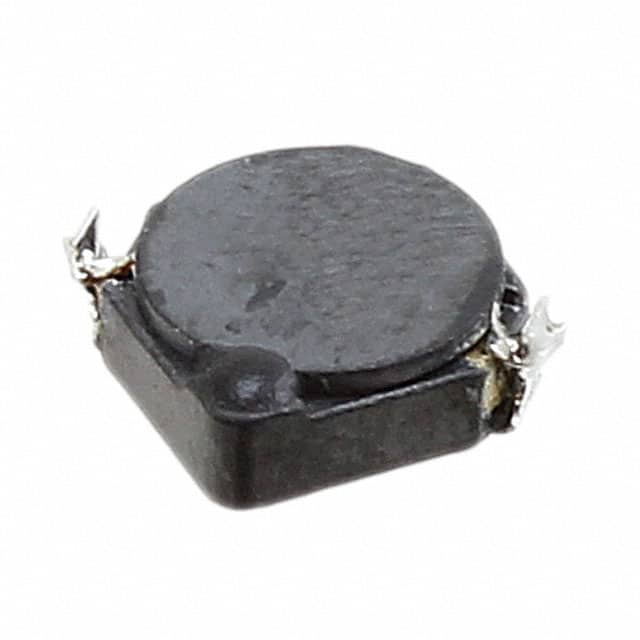

CDRH4D16NP-4R7NCFIXED IND 4.7UH 1.65A 75MOHM SMD |
2,733 | - |
|
Datasheet | CDRH4D16 | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±25% | 1.65 A | 1.4A | Shielded | 75mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.181" L x 0.181" W (4.60mm x 4.60mm) | 0.071" (1.80mm) |
|
CR43NP-150MCFIXED IND 15UH 850MA 235MOHM SMD |
2,175 | - |
|
Datasheet | CR43 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 850 mA | - | Unshielded | 235mOhm Max | - | 28MHz | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
0618CDMCCDS-R12MCFIXED IND 120NH 25A 2.4MOHM SMD |
1,450 | - |
|
Datasheet | 0618CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 120 nH | ±20% | 25 A | 30A | Shielded | 2.4mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.071" (1.80mm) |
|
0618CDMCCDS-R22MCFIXED IND 220NH 18A 3.6MOHM SMD |
1,435 | - |
|
Datasheet | 0618CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 220 nH | ±20% | 18 A | 23A | Shielded | 3.6mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.071" (1.80mm) |
|
0618CDMCCDS-R15MCFIXED IND 150NH 25A 2.4MOHM SMD |
1,358 | - |
|
Datasheet | 0618CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 150 nH | ±20% | 25 A | 27A | Shielded | 2.4mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.071" (1.80mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
