Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
104CDMCCDS-R36MCFIXED IND 360NH 32A 1.2MOHM SMD |
6,604 | - |
|
Datasheet | 104CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 360 nH | ±20% | 32 A | 52A | Shielded | 1.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
104CDMCCDS-R15MCFIXED IND 150NH 43A 0.65MOHM SMD |
1,990 | - |
|
Datasheet | 104CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 150 nH | ±20% | 43 A | 71A | Shielded | 0.65mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
CDRH50D28BT150NP-470MCFIXED IND 47UH 760MA 430MOHM SMD |
1,799 | - |
|
Datasheet | CDRH50D28B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±20% | 760 mA | 780mA | Shielded | 430mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.118" (3.00mm) |
|
CDRH50D28BT150NP-1R5NCFIXED IND 1.5UH 3.4A 20MOHM SMD |
1,918 | - |
|
Datasheet | CDRH50D28B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1.5 µH | ±30% | 3.4 A | 5.5A | Shielded | 20mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.118" (3.00mm) |
|
CDRH50D28BT150NP-6R8NCFIXED IND 6.8UH 1.92A 75MOHM SMD |
1,850 | - |
|
Datasheet | CDRH50D28B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±30% | 1.92 A | 2A | Shielded | 75mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.118" (3.00mm) |
|
CDRH50D28BT150NP-2R2NCFIXED IND 2.2UH 3.2A 26MOHM SMD |
1,767 | - |
|
Datasheet | CDRH50D28B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±30% | 3.2 A | 3.5A | Shielded | 26mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.118" (3.00mm) |
|
CDRH50D28BT150NP-330MCFIXED IND 33UH 900MA 280MOHM SMD |
1,489 | - |
|
Datasheet | CDRH50D28B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±20% | 900 mA | 930mA | Shielded | 280mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.118" (3.00mm) |
|
CDRH103RNP-100NC-BFIXED IND 10UH 2.8A 59 MOHM SMD |
2,580 | - |
|
Datasheet | CDRH103R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±30% | 2.8 A | 3.18A | Shielded | 59mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.122" (3.10mm) |
|

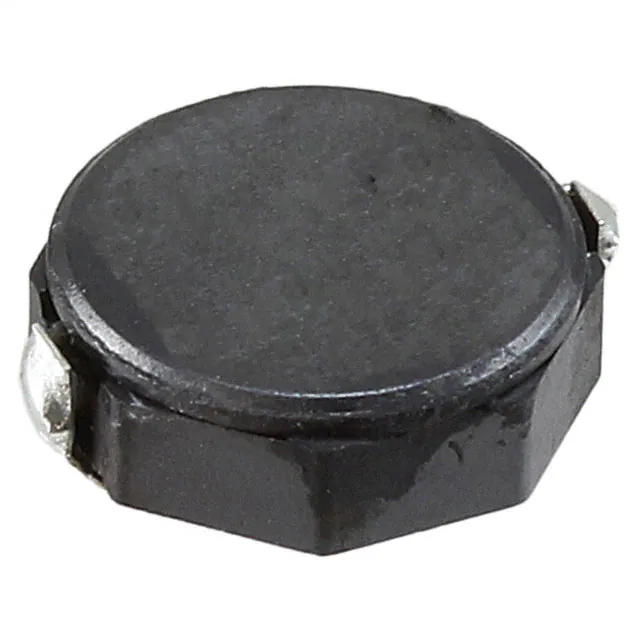

CDRH8D28HPNP-4R7NCFIXED IND 4.7UH 3.6A 40 MOHM SMD |
465 | - |
|
Datasheet | CDRH8D28/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±30% | 3.6 A | 4.5A | Shielded | 40mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.118" (3.00mm) |
|

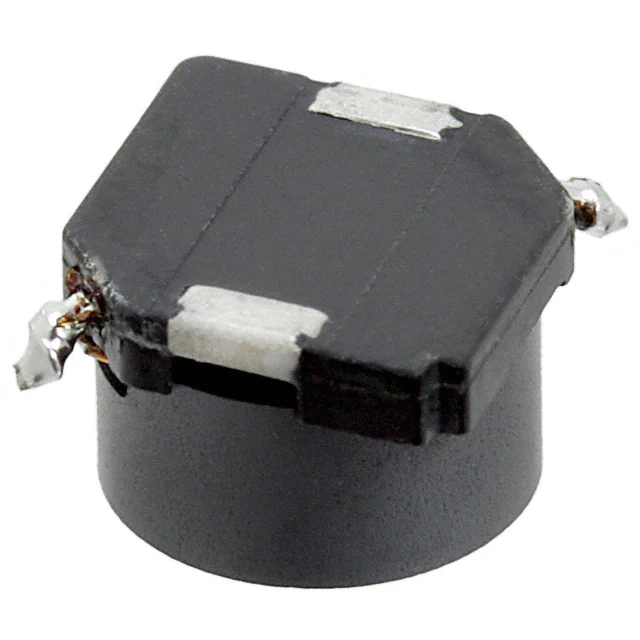

CDRR75NP-331MCFIXED IND 330UH 450MA 1.05OHM SM |
3,850 | - |
|
Datasheet | CDRR | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 330 µH | ±20% | 450 mA | 250mA | Shielded | 1.05Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.272" L x 0.272" W (6.90mm x 6.90mm) | 0.189" (4.80mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
