Fixed Inductors
Browse available Fixed Inductors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0630CDMCCDS-2R2MCFIXED IND 2.2UH 9.3A 15MOHM SMD |
43,824 | - |
|
Datasheet | 0630CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 2.2 µH | ±20% | 9.3 A | 12.3A | Shielded | 15mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|

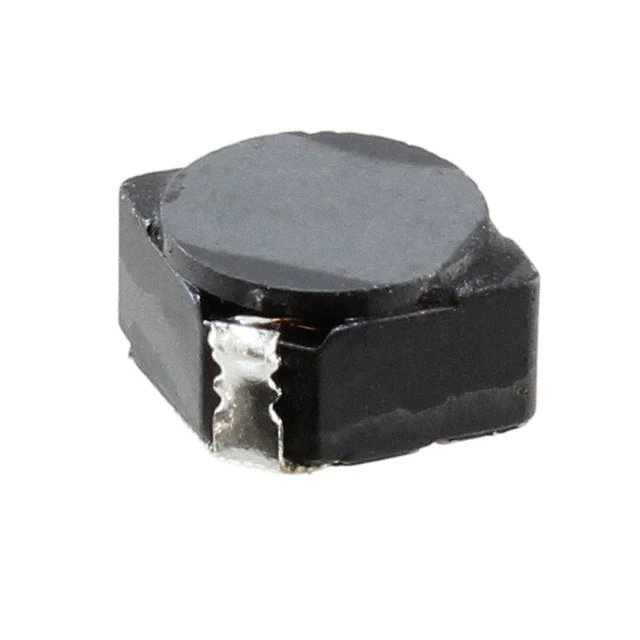

CDRH4D28NP-100NCFIXED IND 10UH 1A 128.3 MOHM SMD |
37,708 | - |
|
Datasheet | CDRH4D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±30% | 1 A | - | Shielded | 128.3mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.118" (3.00mm) |
|
CDRH6D38NP-100NCFIXED IND 10UH 2A 38 MOHM SMD |
23,512 | - |
|
Datasheet | CDRH6D38 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±30% | 2 A | - | Shielded | 38mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.157" (4.00mm) |
|
|
0630CDMCCDS-3R3MCFIXED IND 3.3UH 8.4A 22MOHM SMD |
20,180 | - |
|
Datasheet | 0630CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 3.3 µH | ±20% | 8.4 A | 11.4A | Shielded | 22mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
CLF5030NIT-220M-DFIXED IND 22UH 1.1A 240MOHM SMD |
16,914 | - |
|
Datasheet | CLF-NI-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.1 A | 1.1A | Shielded | 240mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.118" (3.00mm) |
|
|
CLF7045NIT-470M-DFIXED IND 47UH 1.26A 160MOHM SMD |
12,896 | - |
|
Datasheet | CLF-NI-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.26 A | 1.26A | Shielded | 160mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.291" L x 0.276" W (7.40mm x 7.00mm) | 0.189" (4.80mm) |
|
B82432C1104K000FIXED IND 100UH 145MA 4.7OHM SMD |
6,485 | - |
|
Datasheet | SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 145 mA | - | Unshielded | 4.7Ohm Max | 30 @ 796kHz | 8MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
0630CDMCCDS-4R7MCFIXED IND 4.7UH 6.3A 33MOHM SMD |
5,577 | - |
|
Datasheet | 0630CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 4.7 µH | ±20% | 6.3 A | 6.8A | Shielded | 33mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
|
B82432C1102K000FIXED IND 1UH 600MA 280 MOHM SMD |
4,914 | - |
|
Datasheet | SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±10% | 600 mA | - | Unshielded | 280mOhm Max | 40 @ 7.96MHz | 200MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
PA4342.682NLTFIXED IND 6.8UH 8.5A 23.3MOHM SM |
19,368 | - |
|
Datasheet | PA4342.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 8.5 A | 13.5A | Shielded | 23.3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.157" (4.00mm) |
|
ASPI-0630LR-220M-T15FIXED IND 22UH 2.5A 167 MOHM SMD |
9,725 | - |
|
Datasheet | ASPI-0630LR | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 22 µH | ±20% | 2.5 A | 2.5A | Shielded | 167mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.262" W (7.20mm x 6.65mm) | 0.118" (3.00mm) |
|

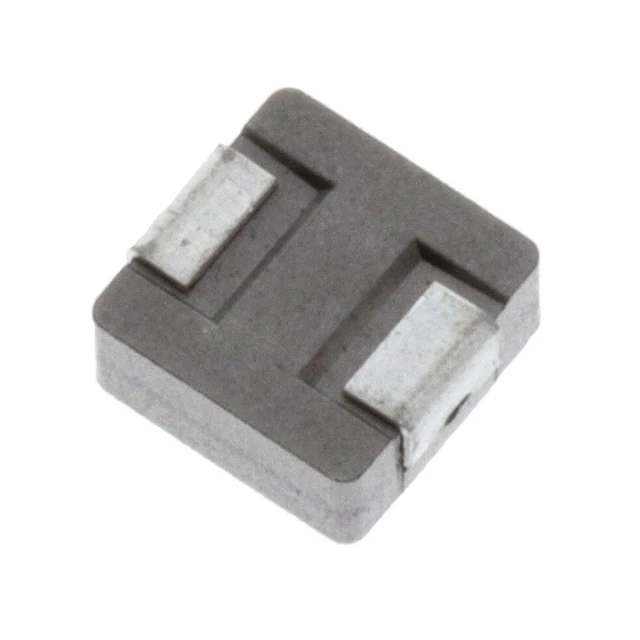

0630CDMCCDS-100MCFIXED IND 10UH 4A 67 MOHM SMD |
5,708 | - |
|
Datasheet | 0630CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 10 µH | ±20% | 4 A | 5.5A | Shielded | 67mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
TFM322512ALMA4R7MTAAFIXED IND 4.7UH 1.9A 151MOHM SMD |
3,794 | - |
|
Datasheet | TFM-ALMA | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 4.7 µH | ±20% | 1.9 A | 2.2A | Shielded | 151mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|

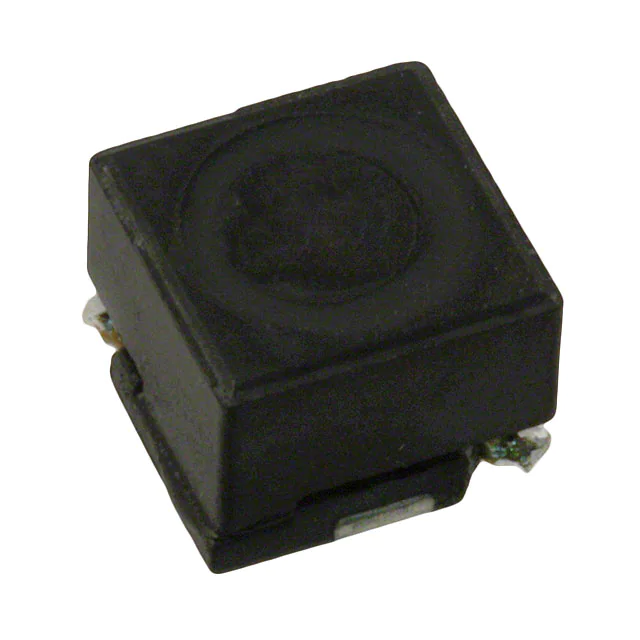

SRR0604-220MLFIXED IND 22UH 900MA 190MOHM SMD |
9,595 | - |
|
Datasheet | SRR0604 | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 900 mA | 1.2A | Shielded | 190mOhm Max | 16 @ 2.52MHz | 25MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.189" (4.80mm) |
|
B82432C1105J000FIXED IND 1MH 55MA 32 OHM SMD |
9,309 | - |
|
Datasheet | SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±5% | 55 mA | - | Unshielded | 32Ohm Max | 30 @ 796kHz | 2.8MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
SPM6530T-1R5M100FIXED IND 1.5UH 11A 10.67MOHM SM |
4,332 | - |
|
Datasheet | SPM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1.5 µH | ±20% | 11 A | 11.5A | Shielded | 10.67mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.256" W (7.10mm x 6.50mm) | 0.118" (3.00mm) |
|
SLF6028T-470MR59-PFFIXED IND 47UH 920MA 252MOHM SMD |
2,915 | - |
|
Datasheet | SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 920 mA | 590mA | Shielded | 252mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
TFM322512ALMAR22MTAAINDUCTORS FOR POWER CIRCUITS, AU |
1,855 | - |
|
Datasheet | TFM-ALMA | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 220 nH | ±20% | 7 A | 10A | Shielded | 11mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | Soft Termination | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
NS10165T220MNAFIXED IND 22UH 3.41A 37.2MOHM SM |
23,590 | - |
|
Datasheet | NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 3.41 A | 3.6A | Shielded | 37.2mOhm Max | - | 10.6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.270" (6.85mm) |
.jpg "DFE322520FD-1R0M=P2")
|
DFE322520FD-1R0M=P2FIXED IND 1UH 4.1A 22 MOHM SMD |
12,392 | - |
|
Datasheet | DFE322520FD | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1 µH | ±20% | 4.1 A | 7.5A | Shielded | 22mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.079" (2.00mm) |
Fixed Inductors FAQ
What Fixed Inductors components can I source from EGOO?
You can browse available Fixed Inductors product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Fixed Inductors parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
