Fixed Inductors
Browse available Fixed Inductors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SLF7045T-680MR60-PFFIXED IND 68UH 770MA 210MOHM SMD |
36,370 | - |
|
Datasheet | SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 770 mA | 600mA | Shielded | 210mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
SRU1038-470YFIXED IND 47UH 1.65A 121MOHM SMD |
17,492 | - |
|
Datasheet | SRU1038 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±30% | 1.65 A | 1.6A | Shielded | 121mOhm | 22 @ 2.52MHz | 8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.161" (4.10mm) |
|
IHLP1616ABER2R2M11FIXED IND 2.2UH 2.75A 83.5 MOHM |
31,466 | - |
|
Datasheet | IHLP-1616AB-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 2.75 A | 3A | Shielded | 83.5mOhm Max | - | 49MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.047" (1.20mm) |
|
PA4341.473NLTFIXED IND 47UH 1.75A 363MOHM SMD |
6,421 | - |
|
Datasheet | PA4341.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 47 µH | ±20% | 1.75 A | 2A | Shielded | 363mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.272" W (7.60mm x 6.90mm) | 0.118" (3.00mm) |
|
CDRH2D18/HPNP-4R7NCFIXED IND 4.7UH 1.2A 140MOHM SMD |
68,314 | - |
|
Datasheet | CDRH2D18/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±30% | 1.2 A | 1.2A | Shielded | 140mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.079" (2.00mm) |
|
SRU1048-100YFIXED IND 10UH 4.5A 18.5MOHM SMD |
43,202 | - |
|
Datasheet | SRU1048 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±30% | 4.5 A | 3.7A | Shielded | 18.5mOhm | 26 @ 7.96MHz | 16MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.201" (5.10mm) |
|
|
SRU1048-150YFIXED IND 15UH 3.2A 29 MOHM SMD |
30,570 | - |
|
Datasheet | SRU1048 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±30% | 3.2 A | 2.7A | Shielded | 29mOhm | 30 @ 2.52MHz | 14MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.201" (5.10mm) |
|

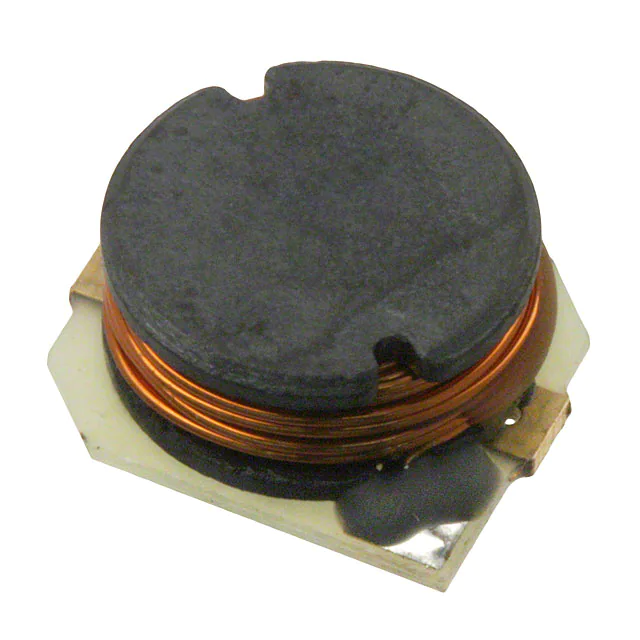

SDR1105-330KLFIXED IND 33UH 2.6A 100 MOHM SMD |
17,895 | - |
|
Datasheet | SDR1105 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 2.6 A | 5A | Unshielded | 100mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.437" L x 0.394" W (11.10mm x 10.00mm) | 0.197" (5.00mm) |
|
|
SRU1048-4R7YFIXED IND 4.7UH 5.5A 9.5MOHM SMD |
6,048 | - |
|
Datasheet | SRU1048 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 5.5 A | 4.75A | Shielded | 9.5mOhm | 12 @ 7.96MHz | 30MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.201" (5.10mm) |
|
|
SDR1105-220MLFIXED IND 22UH 3A 80 MOHM SMD |
3,752 | - |
|
Datasheet | SDR1105 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 3 A | 6.5A | Unshielded | 80mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.437" L x 0.394" W (11.10mm x 10.00mm) | 0.197" (5.00mm) |
|

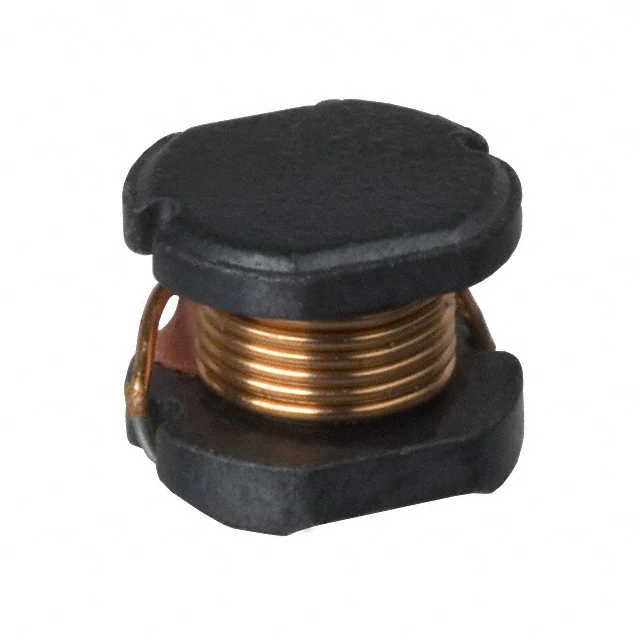

PM54-100M-RCFIXED IND 10UH 1.45A 100MOHM SMD |
36,580 | - |
|
Datasheet | PM54 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.45 A | 2A | Unshielded | 100mOhm | 30 @ 2.52MHz | 23MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.189" (4.80mm) |
|
CDRH2D18/HPNP-2R2NCFIXED IND 2.2UH 1.9A 60 MOHM SMD |
34,426 | - |
|
Datasheet | CDRH2D18/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±30% | 1.9 A | 1.6A | Shielded | 60mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.079" (2.00mm) |
|

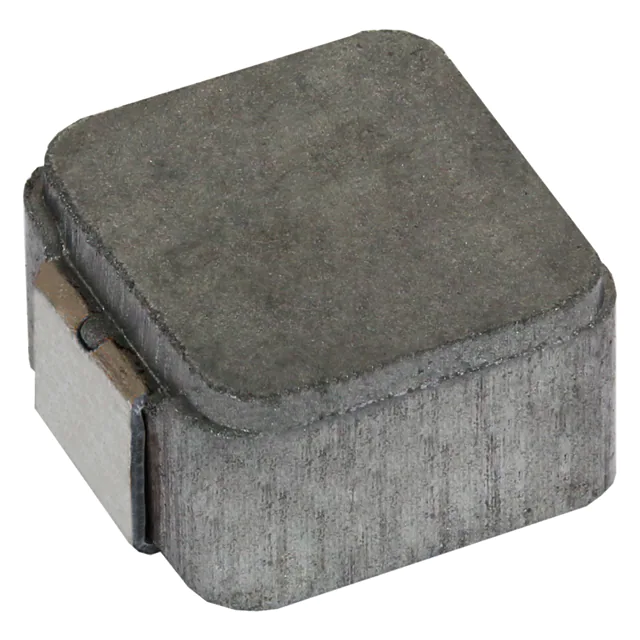

IHLP1212BZEVR10M5AFIXED IND 100NH 12.26A 6.95MOHM |
19,237 | - |
|
Datasheet | IHLP | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 100 nH | ±20% | 12.26 A | 13.46A | Shielded | 6.95mOhm Max | - | 380MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.140" L x 0.130" W (3.56mm x 3.30mm) | 0.079" (2.00mm) |
|
|
CDRH2D18/HPNP-100NCFIXED IND 10UH 900MA 245MOHM SMD |
15,932 | - |
|
Datasheet | CDRH2D18/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±30% | 900 mA | 850mA | Shielded | 245mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.079" (2.00mm) |
|
|
SRU1048-101YFIXED IND 100UH 1.2A 160MOHM SMD |
10,546 | - |
|
Datasheet | SRU1048 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±30% | 1.2 A | 1A | Shielded | 160mOhm | 26 @ 796kHz | 5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.201" (5.10mm) |
|
MPI4020V2-2R2-RFIXED IND 2.2UH 3.8A 48 OHM SMD |
5,865 | - |
|
Datasheet | MPI40-V2 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 2.2 µH | ±20% | 3.8 A | 5.5A | Shielded | 48Ohm Max | - | 33MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.160" L x 0.171" W (4.06mm x 4.35mm) | 0.079" (2.00mm) |
|

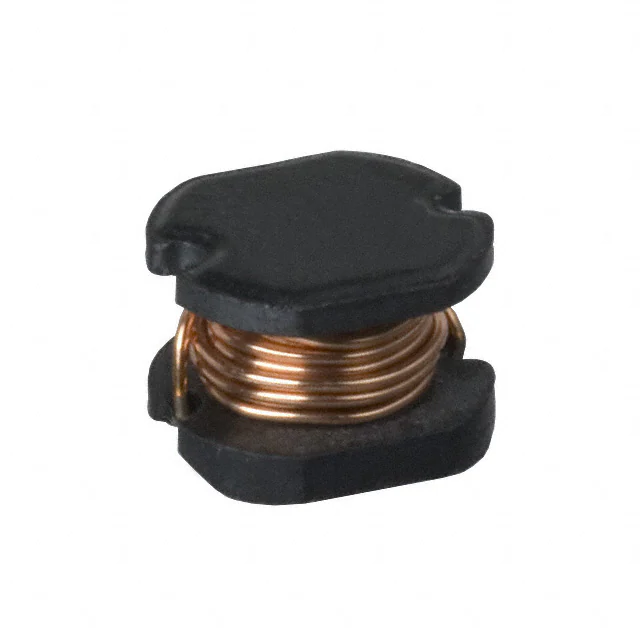

PM43-100M-RCFIXED IND 10UH 1.15A 180MOHM SMD |
1,448 | - |
|
Datasheet | PM43 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.15 A | 1.7A | Unshielded | 180mOhm Max | 28 @ 2.52MHz | 33MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
|
CDRH2D14NP-2R2NCFIXED IND 2.2UH 1.6A 94 MOHM SMD |
92,358 | - |
|
Datasheet | CDRH2D14 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±30% | 1.6 A | 1.5A | Shielded | 94mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.061" (1.55mm) |
|

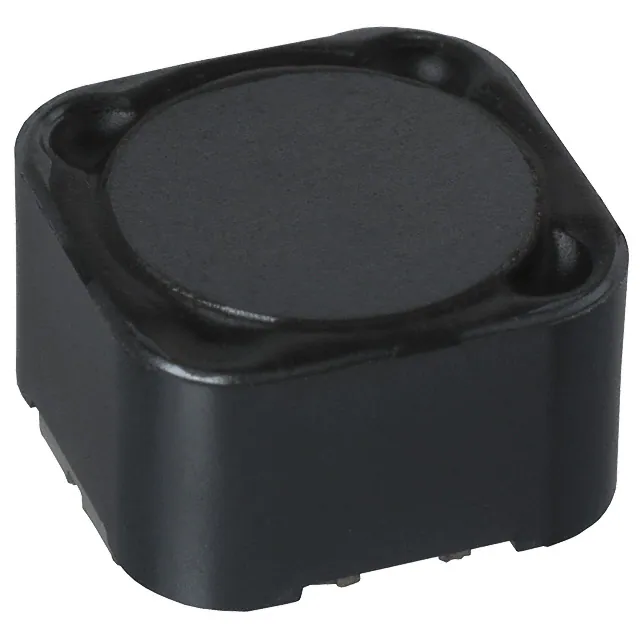

CDRH127/LDNP-220MCFIXED IND 22UH 4.7A 36.4MOHM SMD |
63,137 | - |
|
Datasheet | CDRH127/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±20% | 4.7 A | - | Shielded | 36.4mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|

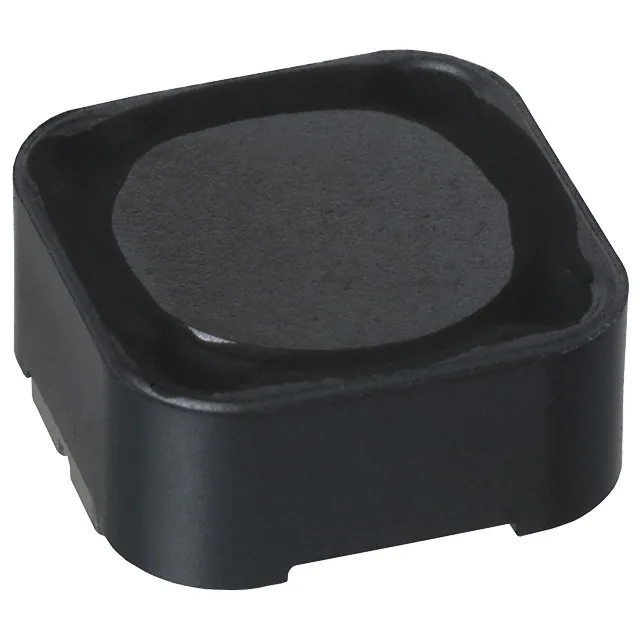

CDRH125NP-470MCFIXED IND 47UH 1.8A 75 MOHM SMD |
63,094 | - |
|
Datasheet | CDRH125 | Nonstandard | Tape & Reel (TR) | Active | - | - | 47 µH | ±20% | 1.8 A | - | Shielded | 75mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
