Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LSQNA201616T1R5MFIXED IND 1.5UH 1A 143 MOHM SMD |
1,018 | - |
|
Datasheet | LSQN | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.5 µH | ±20% | 550 mA | 550mA | Unshielded | 143mOhm Max | - | 80MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LLQNA201616T1R0MFIXED IND 1UH 1.1A 117 MOHM SMD |
2,458 | - |
|
Datasheet | LLQN | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±20% | 1.1 A | 600mA | Unshielded | 90mOhm | - | 100MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|

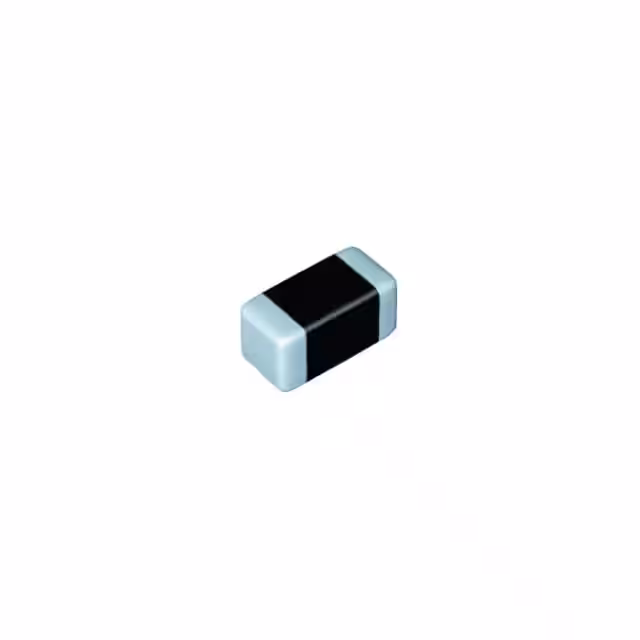

LLQNA201616T101MFIXED IND 100UH 170MA 4.5OHM SMD |
4,236 | - |
|
Datasheet | LLQN | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 100 µH | ±20% | 170 mA | 70mA | Unshielded | 4.5Ohm | - | 8MHz | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LLQNA201616T150KFIXED IND 15UH 440MA 910MOHM SMD |
4,806 | - |
|
Datasheet | LLQN | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±10% | 440 mA | 210mA | Unshielded | 700mOhm | - | 28MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LLQNA201616T220MFIXED IND 22UH 370MA 1.3 OHM SMD |
2,324 | - |
|
Datasheet | LLQN | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 370 mA | 165mA | Unshielded | 1Ohm | - | 16MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LLQNA201616T220KFIXED IND 22UH 370MA 1.3 OHM SMD |
4,200 | - |
|
Datasheet | LLQN | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±10% | 370 mA | 165mA | Unshielded | 1Ohm | - | 16MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LLQNA201616T680KFIXED IND 68UH 210MA 3.9 OHM SMD |
1,032 | - |
|
Datasheet | LLQN | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 68 µH | ±10% | 210 mA | 90mA | Unshielded | 3Ohm | - | 10MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LLQNA201616T470MFIXED IND 47UH 240MA 3.12OHM SMD |
3,558 | - |
|
Datasheet | LLQN | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±20% | 240 mA | 110mA | Unshielded | 2.4Ohm | - | 11MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LLQNA201616T3R3MFIXED IND 3.3UH 800MA 260MOHM SM |
1,697 | - |
|
Datasheet | LLQN | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±20% | 800 mA | 400mA | Unshielded | 200mOhm | - | 55MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LLQNA201616T4R7MFIXED IND 4.7UH 740MA 325MOHM SM |
4,810 | - |
|
Datasheet | LLQN | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 740 mA | 340mA | Unshielded | 250mOhm | - | 45MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
