Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

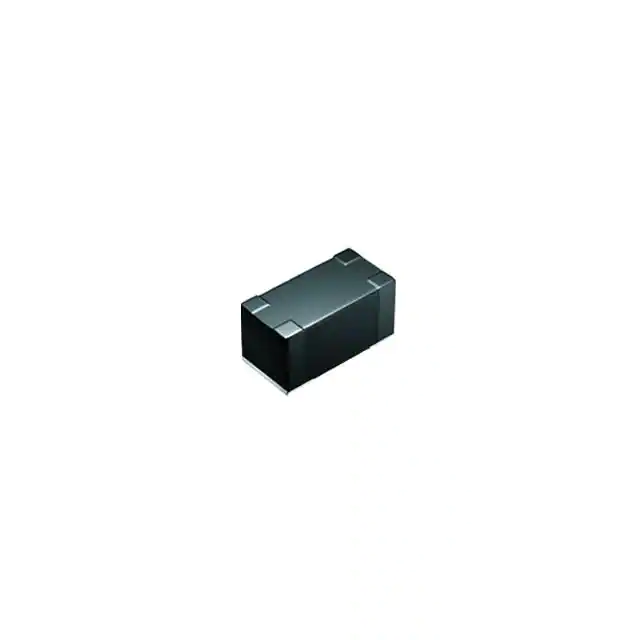

LLQNB160808T470KFIXED IND 47UH 140MA 3.25OHM SMD |
2,580 | - |
|
Datasheet | LLQN | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±10% | 140 mA | 50mA | Unshielded | 2.5Ohm | - | 11MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
LLQNB160808T1R0MFIXED IND 1UH 770MA 117 MOHM SMD |
3,004 | - |
|
Datasheet | LLQN | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±20% | 770 mA | 290mA | Unshielded | 90mOhm | - | 100MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
LLQNB160808T3R3MFIXED IND 3.3UH 500MA 286MOHM SM |
2,281 | - |
|
Datasheet | LLQN | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±20% | 500 mA | 170mA | Unshielded | 220mOhm | - | 60MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
LLQNB160808T2R2MFIXED IND 2.2UH 560MA 221MOHM SM |
1,394 | - |
|
Datasheet | LLQN | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±20% | 560 mA | 190mA | Unshielded | 170mOhm | - | 80MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|

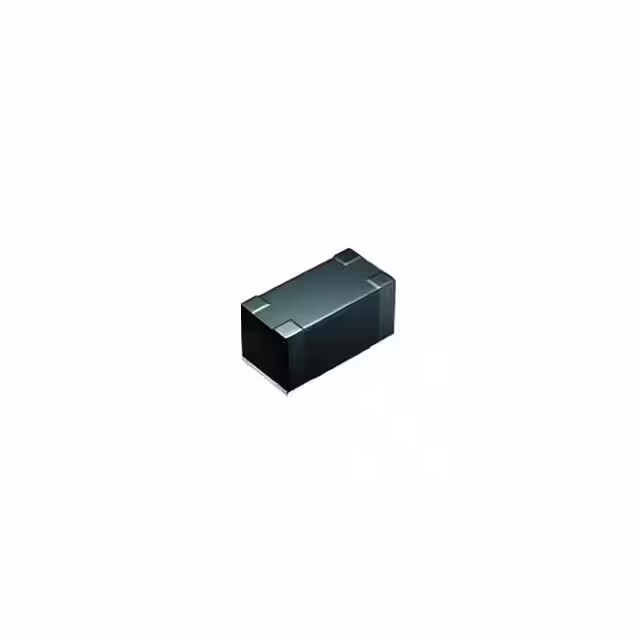

LLQNB160808T220KFIXED IND 22UH 230MA 1.3 OHM SMD |
3,127 | - |
|
Datasheet | LLQN | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±10% | 230 mA | 70mA | Unshielded | 1Ohm | - | 16MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
LSQNB160808T3R3MFIXED IND 3.3UH 500MA 286MOHM SM |
2,453 | - |
|
Datasheet | LSQN | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±20% | 170 mA | 170mA | Unshielded | 286mOhm Max | - | 60MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
LSQCA251818T1R0MRFIXED IND 1.0 UH 0.89A 0.0845 OH |
1,874 | - |
|
Datasheet | LSQC | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±20% | 890 mA | - | Unshielded | 84.5mOhm Max | - | 100MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1007 | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 0.079" (2.00mm) |
|
|
LLQCA251818T1R0MRFIXED IND 1.0 UH 0.89A 0.0845 OH |
3,958 | - |
|
Datasheet | LLQC | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±20% | 890 mA | - | Unshielded | 84.5mOhm Max | - | 100MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1007 | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 0.079" (2.00mm) |
|
LSBHB2520MKTR68NGFIXED IND 680NH 2.15A 58MOHM SMD |
1,805 | - |
|
Datasheet | LSBH | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 680 nH | ±30% | 2.15 A | 3.15A | Unshielded | 58mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|

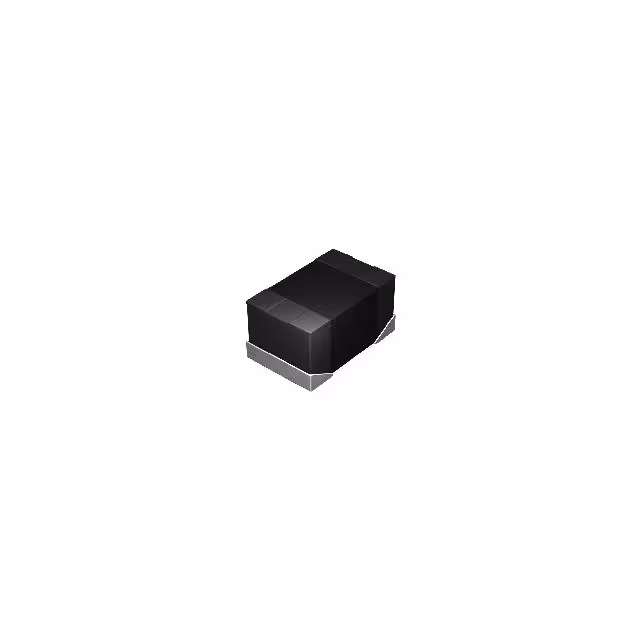

LSBHB2520MKTR47NGFIXED IND 470NH 2.6A 42 MOHM SMD |
3,023 | - |
|
Datasheet | LSBH | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 470 nH | ±30% | 2.6 A | 3.9A | Unshielded | 42mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
