Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

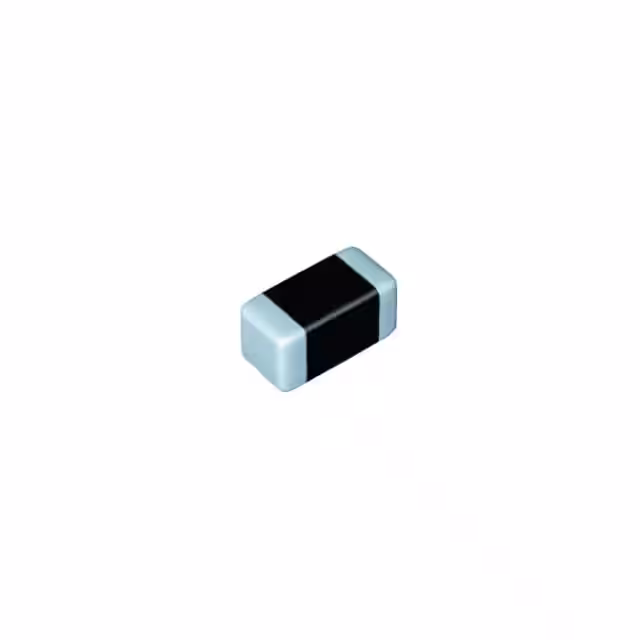

LSQBA160808T8R2MFIXED IND 8.2UH 60MA 0.7 OHM SMD |
1,192 | - |
|
Datasheet | LSQB | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 8.2 µH | ±20% | 60 mA | - | Unshielded | 700mOhm | - | 32MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.035" (0.90mm) |
|

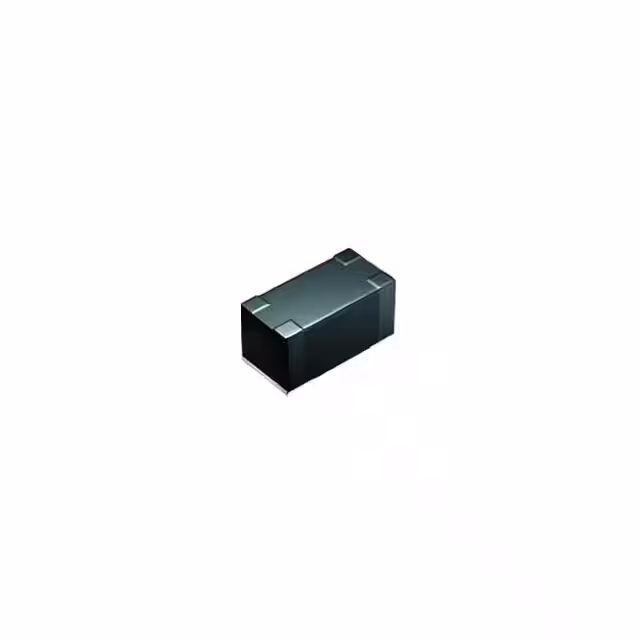

LLQNB160808T4R7MFIXED IND 4.7UH 470MA 312MOHM SM |
1,845 | - |
|
Datasheet | LLQN | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 470 mA | 145mA | Unshielded | 240mOhm | - | 45MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
LEM2520T56NKFIXED IND 56NH 340MA 650MOHM SMD |
3,533 | - |
|
Datasheet | LE, M Type | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 56 nH | ±10% | 340 mA | - | Unshielded | 650mOhm Max | 20 @ 100MHz | 1.6GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.079" (2.00mm) |
|
LLQNA201209T220MFIXED IND 22UH 250MA 2.73OHM SMD |
1,782 | - |
|
Datasheet | LLQN | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 250 mA | 150mA | Unshielded | 2.1Ohm | - | 23MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|

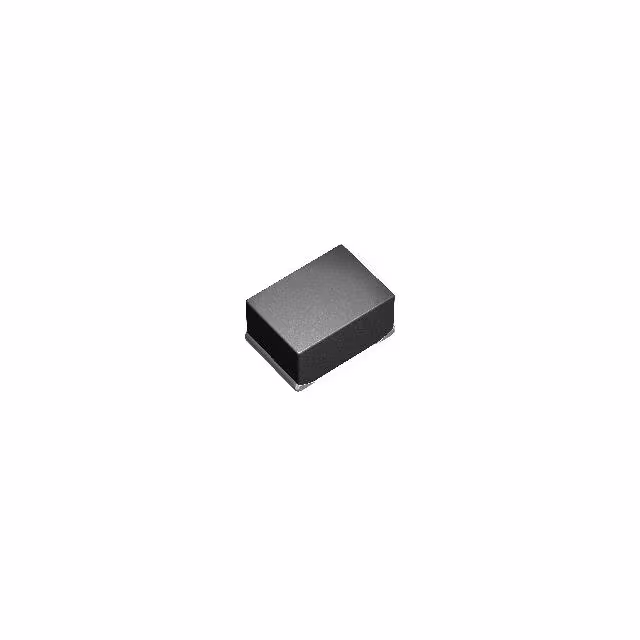

LLAPB2016KKTR47MFIXED IND 470NH 3.3A 36 MOHM SMD |
2,241 | - |
|
Datasheet | LLAP | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 470 nH | ±20% | 3.3 A | 4.3A | Unshielded | 36mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
MBPK3225H2R2MFIXED IND 2.2UH 2.15A 69MOHM SMD |
2,339 | - |
|
Datasheet | MCOIL™, MB, H Type | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 2.15 A | 1.65A | Shielded | 69mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.055" (1.40mm) |
|
LLXND4040TKL6R8MDGFIXED IND 6.8UH 1.45A 117.6 MOHM |
2,547 | - |
|
Datasheet | LLXN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 1.45 A | 1.6A | Shielded | 98mOhm | - | 30MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
LLXND4040TKL680MDGFIXED IND 68UH 320MA 1.2 OHM SMD |
4,719 | - |
|
Datasheet | LLXN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 68 µH | ±20% | 320 mA | 520mA | Shielded | 1Ohm | - | 8.3MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
LLXND4040TKL1R0NDGFIXED IND 1UH 3.2A 32.4 MOHM SMD |
2,956 | - |
|
Datasheet | LLXN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±30% | 3.2 A | 4A | Shielded | 27mOhm | - | 90MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
LLXND4040TKL330MDGFIXED IND 33UH 550MA 552MOHM SMD |
3,624 | - |
|
Datasheet | LLXN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 33 µH | ±20% | 550 mA | 700mA | Shielded | 460mOhm | - | 12MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
