Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LLXND4040TKL470MDGFIXED IND 47UH 440MA 780MOHM SMD |
4,253 | - |
|
Datasheet | LLXN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±20% | 440 mA | 600mA | Shielded | 650mOhm | - | 10MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
LLXND4040TKL101MDGFIXED IND 100UH 280MA 1.74OHM SM |
1,391 | - |
|
Datasheet | LLXN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 100 µH | ±20% | 280 mA | 420mA | Shielded | 1.45Ohm | - | 6.5MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
LLXND4040TKL221MDGFIXED IND 220UH 170MA 4.56OHM SM |
1,198 | - |
|
Datasheet | LLXN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 220 µH | ±20% | 170 mA | 275mA | Shielded | 3.8Ohm | - | 4MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
LLXND4040TKL220MDGFIXED IND 22UH 720MA 348MOHM SMD |
4,815 | - |
|
Datasheet | LLXN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 720 mA | 900mA | Shielded | 290mOhm | - | 15MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
LLXND4040TKL151MDGFIXED IND 150UH 220MA 2.76OHM SM |
3,485 | - |
|
Datasheet | LLXN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 150 µH | ±20% | 220 mA | 340mA | Shielded | 2.3Ohm | - | 5.5MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
LLXND4040TKL1R5NDGFIXED IND 1.5UH 2.4A 44.4MOHM SM |
1,978 | - |
|
Datasheet | LLXN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.5 µH | ±30% | 2.4 A | 3.3A | Shielded | 37mOhm | - | 75MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
LLXND4040TKL150MDGFIXED IND 15UH 850MA 252MOHM SMD |
2,436 | - |
|
Datasheet | LLXN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 850 mA | 1.1A | Shielded | 210mOhm | - | 18MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|

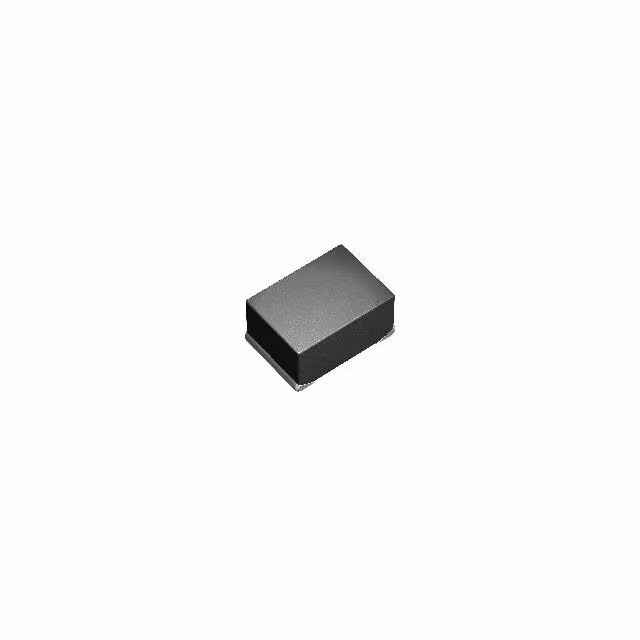

LLAPB2520MKTR22MFIXED IND 220NH 5A 21 MOHM SMD |
1,249 | - |
|
Datasheet | LLAP | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 220 nH | ±20% | 5 A | 7.5A | Unshielded | 21mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
LLAPB2520MKTR33MFIXED IND 330NH 4.4A 23 MOHM SMD |
1,934 | - |
|
Datasheet | LLAP | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 330 nH | ±20% | 4.4 A | 6.6A | Unshielded | 23mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
LSAPB2520KKT2R2MFIXED IND 2.2UH 1.8A 120MOHM SMD |
4,925 | - |
|
Datasheet | LSAP | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 2.2 µH | ±20% | 1.8 A | 2.5A | Unshielded | 120mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
