Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LLXNH8080XKL2R2NJGFIXED IND 2.2UH 4.8A 19.5MOHM SM |
4,232 | - |
|
Datasheet | LLXN | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±30% | 4.8 A | 4.9A | Shielded | 15mOhm | - | 60MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.118" (3.00mm) |
|
LLXNH8080XKL470MJGFIXED IND 47UH 1.3A 221 MOHM SMD |
2,359 | - |
|
Datasheet | LLXN | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±20% | 1.3 A | 1.1A | Shielded | 170mOhm | - | 11MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.118" (3.00mm) |
|

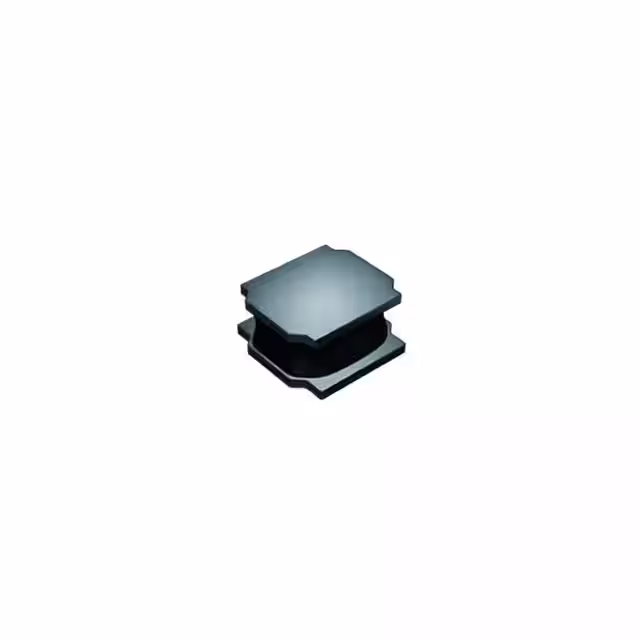

LLXNH8080XKL4R7MJGFIXED IND 4.7UH 4A 28.6 MOHM SMD |
2,101 | - |
|
Datasheet | LLXN | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 4 A | 3.6A | Shielded | 22mOhm | - | 40MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.118" (3.00mm) |
|
LLXNH8080XKL220MJGFIXED IND 22UH 1.9A 91 MOHM SMD |
2,426 | - |
|
Datasheet | LLXN | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 1.9 A | 1.75A | Shielded | 70mOhm | - | 16MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.118" (3.00mm) |
|
LLXNH8080XKL330MJGFIXED IND 33UH 1.5A 156 MOHM SMD |
4,828 | - |
|
Datasheet | LLXN | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 33 µH | ±20% | 1.5 A | 1.3A | Shielded | 120mOhm | - | 13MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.118" (3.00mm) |
|
LLXNH8080XKL1R5NJGFIXED IND 1.5UH 5.3A 15.6MOHM SM |
3,862 | - |
|
Datasheet | LLXN | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.5 µH | ±30% | 5.3 A | 6.2A | Shielded | 12mOhm | - | 80MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.118" (3.00mm) |
|
LLXNH8080XKL150MJGFIXED IND 15UH 2.2A 78 MOHM SMD |
3,827 | - |
|
Datasheet | LLXN | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 2.2 A | 2A | Shielded | 60mOhm | - | 20MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.118" (3.00mm) |
|
LLXNH8080XKL100MJGFIXED IND 10UH 3A 42.9 MOHM SMD |
2,551 | - |
|
Datasheet | LLXN | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 3 A | 2.4A | Shielded | 33mOhm | - | 27MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.118" (3.00mm) |
|

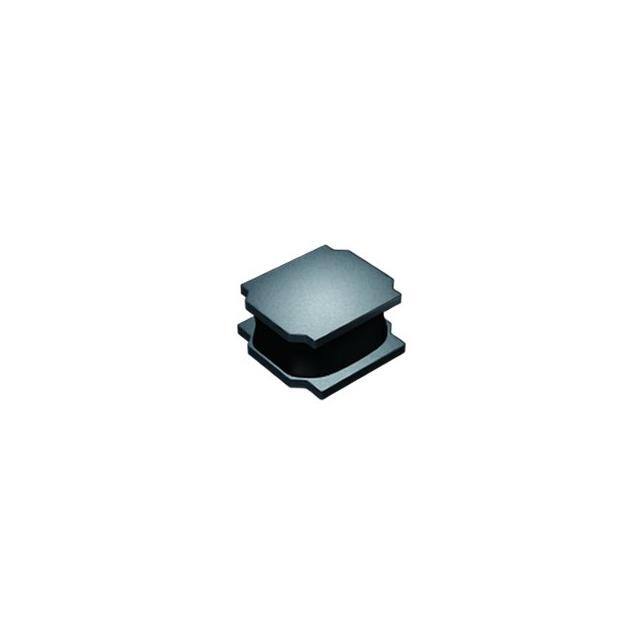

LLXNH8080XKL1R0NJGFIXED IND 1UH 6.2A 11.7 MOHM SMD |
4,273 | - |
|
Datasheet | LLXN | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±30% | 6.2 A | 7.8A | Shielded | 9mOhm | - | 120MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.118" (3.00mm) |
|
LSXNH8080XKL1R5NJGFIXED IND 1.5UH 5.3A 15.6MOHM SM |
4,712 | - |
|
Datasheet | LSXN | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.5 µH | ±30% | 5.3 A | 6.2A | Shielded | 15.6mOhm Max | - | 80MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.118" (3.00mm) |
