Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

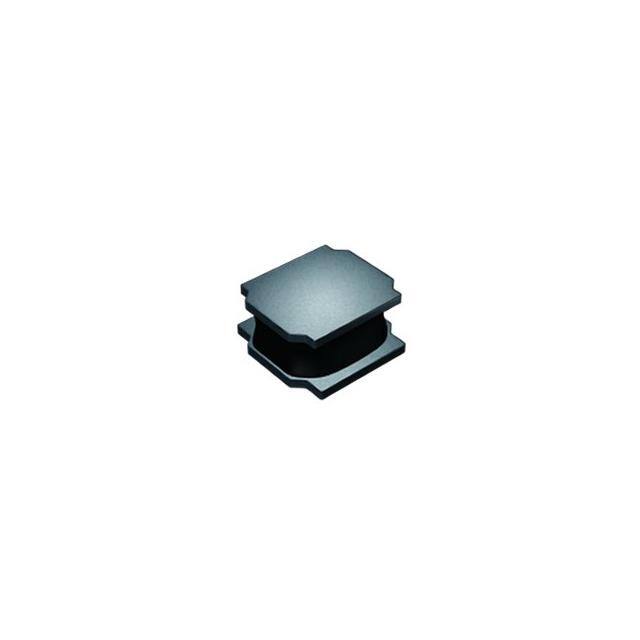

LLXNH8080XKL6R8MJGFIXED IND 6.8UH 3A 37.7 MOHM SMD |
1,744 | - |
|
Datasheet | LLXN | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 3.4 A | 3A | Shielded | 29mOhm | - | 32MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.118" (3.00mm) |
|
LCXPD2020KKT3R3M0GFIXED IND 3.3UH 1A 250 MOHM SMD |
3,307 | - |
|
Datasheet | LCXP | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±20% | 1 A | 880mA | Unshielded | 250mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
LCXPD2020KKT2R2M0GFIXED IND 2.2UH 1.1A 175MOHM SMD |
1,169 | - |
|
Datasheet | LCXP | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±20% | 1.1 A | 1.1A | Unshielded | 175mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
LCXPD2020KKTR47N0GFIXED IND 470NH 2A 52 MOHM SMD |
2,922 | - |
|
Datasheet | LCXP | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 470 nH | ±30% | 2 A | 2.1A | Unshielded | 52mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
LCXPD2020KKT4R7M0GFIXED IND 4.7UH 820MA 320MOHM SM |
2,105 | - |
|
Datasheet | LCXP | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 820 mA | 760mA | Unshielded | 320mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
LCXPD2020KKT1R5M0GFIXED IND 1.5UH 1.45A 100MOHM SM |
4,761 | - |
|
Datasheet | LCXP | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.5 µH | ±20% | 1.45 A | 1.35A | Unshielded | 100mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|

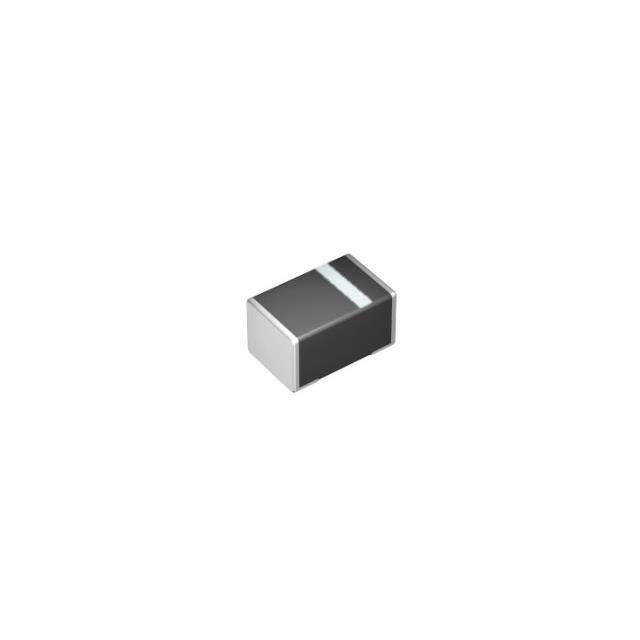

LLCNB1005EETR22MBFIXED IND 220NH 1.6A 80 MOHM SMD |
2,052 | - |
|
Datasheet | LLCN | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal | 220 nH | ±20% | 1.6 A | 1.6A | Unshielded | 80mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
LLCNB1005EETR10MBFIXED IND 100NH 2A 50 MOHM SMD |
2,904 | - |
|
Datasheet | LLCN | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal | 100 nH | ±20% | 2 A | 2A | Unshielded | 50mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
LLCNB1005EETR47MBFIXED IND 470NH 1.2A 140MOHM SMD |
3,365 | - |
|
Datasheet | LLCN | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal | 470 nH | ±20% | 1.2 A | 1.2A | Unshielded | 140mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
NP05DB100MFIXED IND 10UH 1.6A 100 MOHM SMD |
3,025 | - |
|
Datasheet | N, P Type | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 10 µH | ±20% | 1.6 A | - | Shielded | 100mOhm Max | - | 25MHz | - | -25°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.240" L x 0.232" W (6.10mm x 5.90mm) | 0.110" (2.80mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
