Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

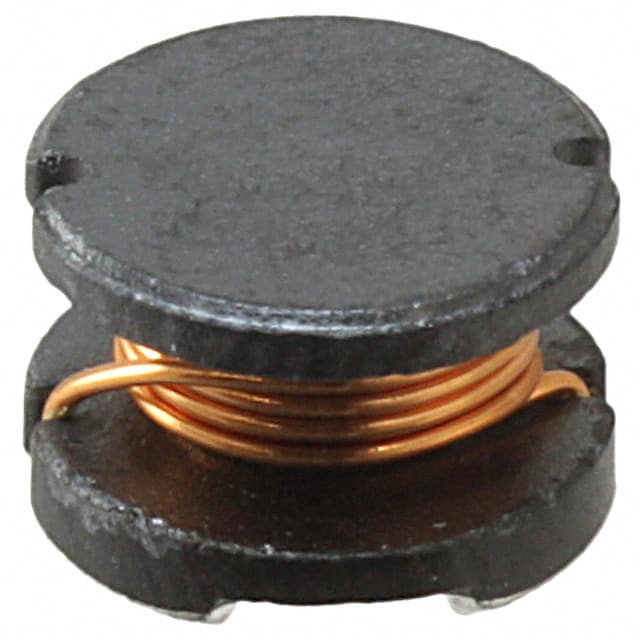

HM66-60120LFTR13FIXED IND 12UH 1.55A 70 MOHM SMD |
5,776 | - |
|
Datasheet | HM66 | Nonstandard | Tape & Reel (TR) | Discontinued at Digi-Key | Wirewound | - | 12 µH | ±20% | 1.55 A | - | Shielded | 70mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.118" (3.00mm) |
|

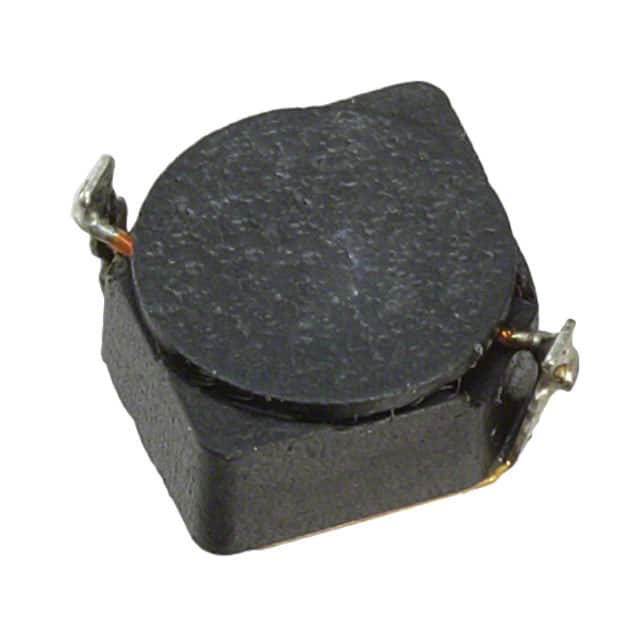

HM66-50680LFTR13FIXED IND 68UH 520MA 355MOHM SMD |
3,984 | - |
|
Datasheet | HM66 | Nonstandard | Tape & Reel (TR) | Discontinued at Digi-Key | Wirewound | - | 68 µH | ±20% | 520 mA | - | Shielded | 355mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.224" L x 0.224" W (5.70mm x 5.70mm) | 0.118" (3.00mm) |
|
|
HM66-50100LFTR13FIXED IND 10UH 1.3A 65 MOHM SMD |
1,064 | - |
|
Datasheet | HM66 | Nonstandard | Cut Tape (CT) | Discontinued at Digi-Key | Wirewound | - | 10 µH | ±20% | 1.3 A | - | Shielded | 65mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.224" L x 0.224" W (5.70mm x 5.70mm) | 0.118" (3.00mm) |
|
HM72E-121R5HLFTR13FIXED IND 1.5UH 27A 3 MOHM SMD |
800 | - |
|
Datasheet | HM72E-12 | Nonstandard | Tape & Reel (TR) | Discontinued at Digi-Key | Molded | - | 1.5 µH | ±20% | 27 A | 27A | Unshielded | 3mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.549" L x 0.512" W (13.95mm x 13.00mm) | 0.256" (6.50mm) |
|
HA72E-06R47LFTR13FIXED IND 470NH 16.1A 4.2MOHM SM |
3,680 | - |
|
Datasheet | HA72E-06 | 2-SMD | Tape & Reel (TR) | Discontinued at Digi-Key | Molded | - | 470 nH | ±20% | 16.1 A | 19A | Unshielded | 4.2mOhm Max | - | - | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.285" L x 0.268" W (7.23mm x 6.80mm) | 0.118" (3.00mm) |
|
|
HA72E-06R10LFTR13FIXED IND 100NH 26.2A 1.7 MOHM |
1,925 | - |
|
Datasheet | HA72E-06 | 2-SMD | Cut Tape (CT) | Discontinued at Digi-Key | Molded | - | 100 nH | ±20% | 26.2 A | 45A | Unshielded | 1.7mOhm Max | - | - | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.285" L x 0.268" W (7.23mm x 6.80mm) | 0.118" (3.00mm) |
|
|
HA72E-061R5LFTR13FIXED IND 1.5UH 8.4A 14 MOHM SMD |
1,915 | - |
|
Datasheet | HA72E-06 | 2-SMD | Cut Tape (CT) | Discontinued at Digi-Key | Molded | - | 1.5 µH | ±20% | 8.4 A | 10A | Unshielded | 14mOhm Max | - | - | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.285" L x 0.268" W (7.23mm x 6.80mm) | 0.118" (3.00mm) |
|
|
HA72E-061R0LFTR13FIXED IND 1UH 10.3A 10 MOHM SMD |
1,099 | - |
|
Datasheet | HA72E-06 | 2-SMD | Cut Tape (CT) | Discontinued at Digi-Key | Molded | - | 1 µH | ±20% | 10.3 A | 15A | Unshielded | 10mOhm Max | - | - | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.285" L x 0.268" W (7.23mm x 6.80mm) | 0.118" (3.00mm) |
|
HM72B-066R8LFTR13FIXED IND 6.8UH 4.1A 68 MOHM SMD |
2,395 | - |
|
Datasheet | HM72B | Nonstandard | Cut Tape (CT) | Discontinued at Digi-Key | Molded | - | 6.8 µH | ±20% | 4.1 A | 8A | Unshielded | 68mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.285" L x 0.268" W (7.23mm x 6.80mm) | 0.118" (3.00mm) |
|
|
HM72B-06R15LFTR13FIXED IND 150NH 23.3A 2.5 MOHM |
1,822 | - |
|
Datasheet | HM72B | Nonstandard | Cut Tape (CT) | Discontinued at Digi-Key | Molded | - | 150 nH | ±20% | 23.3 A | 52A | Unshielded | 2.5mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.285" L x 0.268" W (7.23mm x 6.80mm) | 0.118" (3.00mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
