Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HA65A-25156R8LFFIXED IND 6.8UH 2.6 MOHM SMD |
135 | - |
|
Datasheet | HA65A | Nonstandard | Tray | Discontinued at Digi-Key | Wirewound | - | 6.8 µH | ±10% | - | 46A | Unshielded | 2.6mOhm Max | - | 17MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 1.043" L x 1.043" W (26.50mm x 26.50mm) | 0.610" (15.50mm) |
|
HM79-10100LFTR13FIXED IND 10UH 1.04A 182 MOHM |
188 | - |
|
Datasheet | HM79 | Nonstandard | Cut Tape (CT) | Discontinued at Digi-Key | Wirewound | - | 10 µH | ±20% | 1.04 A | - | Unshielded | 182mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.126" (3.20mm) |
|
|
HM79-40330LFTR13FIXED IND 33UH 1.2A 130 MOHM SMD |
995 | - |
|
Datasheet | HM79 | Nonstandard | Cut Tape (CT) | Discontinued at Digi-Key | Wirewound | - | 33 µH | ±20% | 1.2 A | - | Unshielded | 130mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
|
HM79-20220LFTR13FIXED IND 22UH 1.11A 180 MOHM |
968 | - |
|
Datasheet | HM79 | Nonstandard | Cut Tape (CT) | Discontinued at Digi-Key | Wirewound | - | 22 µH | ±20% | 1.11 A | - | Unshielded | 180mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.177" (4.50mm) |
|
|
HM79-30181LFTR13FIXED IND 180UH 360MA 1.022 OHM |
961 | - |
|
Datasheet | HM79 | Nonstandard | Cut Tape (CT) | Discontinued at Digi-Key | Wirewound | - | 180 µH | ±20% | 360 mA | - | Unshielded | 1.022Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.138" (3.50mm) |
|
HA72E-062R2LFTR13FIXED IND 2.2UH 8.3A 20 MOHM SMD |
3,979 | - |
|
Datasheet | HA72E-06 | 2-SMD | Cut Tape (CT) | Discontinued at Digi-Key | Molded | - | 2.2 µH | ±20% | 8.3 A | 8.5A | Unshielded | 20mOhm Max | - | - | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.285" L x 0.268" W (7.23mm x 6.80mm) | 0.118" (3.00mm) |
|
HM73-40R50LFTR13FIXED IND 500NH 40A 1 MOHM SMD |
2,997 | - |
|
Datasheet | HM73 | Nonstandard | Cut Tape (CT) | Discontinued at Digi-Key | - | - | 500 nH | ±20% | 40 A | 49A | Shielded | 1mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.555" L x 0.512" W (14.10mm x 13.00mm) | 0.256" (6.50mm) |
|
|
HM73-31100LFTR13FIXED IND 10UH 6A 26 MOHM SMD |
4,984 | - |
|
Datasheet | HM73 | Nonstandard | Cut Tape (CT) | Discontinued at Digi-Key | - | - | 10 µH | ±20% | 6 A | 10A | Shielded | 26mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.512" W (13.00mm x 13.00mm) | 0.197" (5.00mm) |
|

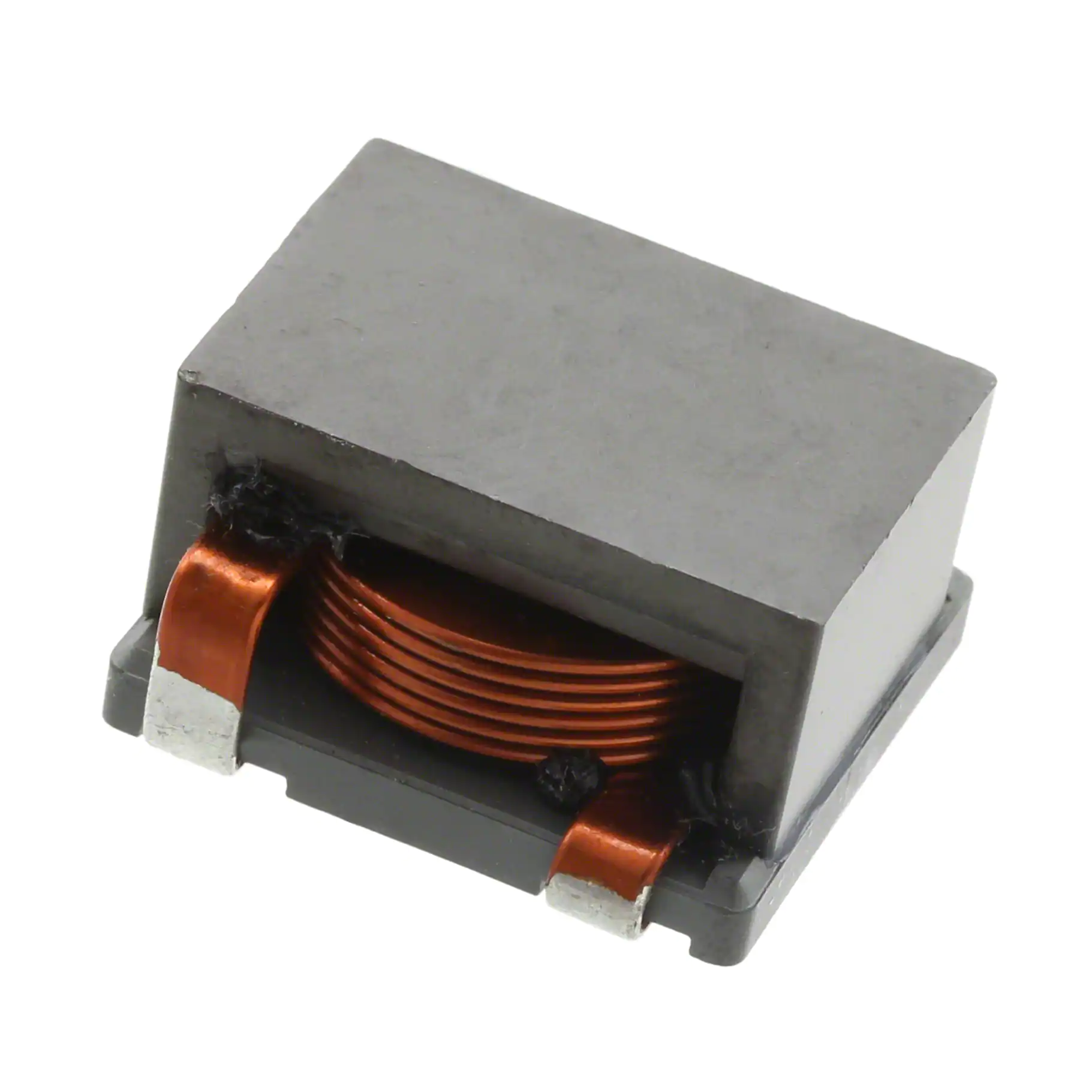

HA65A-251522RLFFIXED IND 22UH 2.6 MOHM SMD |
2,635 | - |
|
Datasheet | HA65A | Nonstandard | Tray | Discontinued at Digi-Key | Wirewound | - | 22 µH | ±10% | - | 22A | Unshielded | 2.6mOhm Max | - | 9MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 1.043" L x 1.043" W (26.50mm x 26.50mm) | 0.610" (15.50mm) |
|
HM72E-064R7LFTR13FIXED IND 4.7UH 5.4A 42 MOHM SMD |
2,860 | - |
|
Datasheet | HM72E-06 | 2-SMD | Cut Tape (CT) | Discontinued at Digi-Key | Molded | - | 4.7 µH | ±20% | 5.4 A | 6.5A | Unshielded | 42mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.285" L x 0.268" W (7.23mm x 6.80mm) | 0.118" (3.00mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
