Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
784771470FIXED IND 47UH 2.3A 77 MOHM SMD |
1,670 | - |
|
Datasheet | WE-PDA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 47 µH | ±20% | 2.3 A | 2.5A | Shielded | 77mOhm Max | - | 10.1MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1260 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.248" (6.30mm) |
|
|
784771220FIXED IND 22UH 3.2A 40 MOHM SMD |
1,420 | - |
|
Datasheet | WE-PDA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 22 µH | ±20% | 3.2 A | 3.5A | Shielded | 40mOhm Max | - | 14.9MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1260 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.248" (6.30mm) |
|
7445520FIXED IND 100UH 300MA 1.27OHM SM |
1,359 | - |
|
Datasheet | WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 300 mA | 310mA | Unshielded | 1.27Ohm Max | - | 8MHz | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|

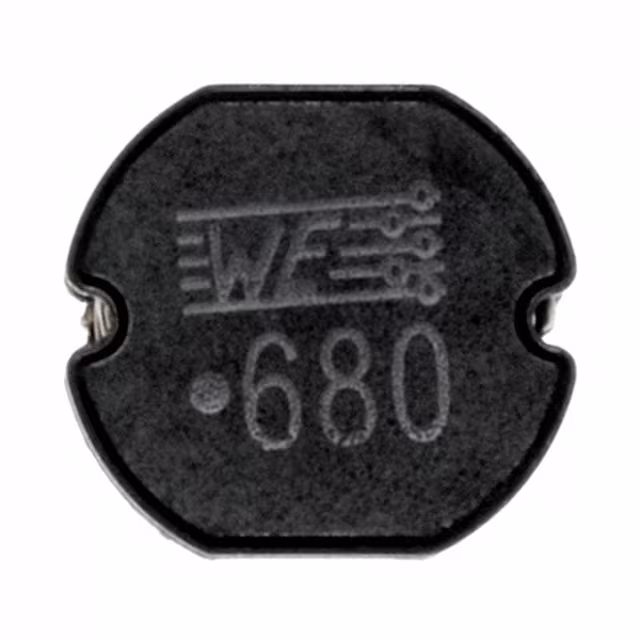

744776168FIXED IND 68UH 1.19A 220MOHM SMD |
1,239 | - |
|
Datasheet | WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 1.19 A | 1.49A | Unshielded | 220mOhm Max | - | 9MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.232" (5.90mm) |
|
74455233330UH INDUCTOR 20% |
1,220 | - |
|
Datasheet | WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 µH | ±20% | 160 mA | 180mA | Unshielded | 5Ohm Max | - | 4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
784771101FIXED IND 100UH 1.5A 174MOHM SMD |
1,178 | - |
|
Datasheet | WE-PDA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 100 µH | ±20% | 1.5 A | 1.7A | Shielded | 174mOhm Max | - | 6.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1260 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.248" (6.30mm) |
|
78438367047WE-MAIA SMT POWER INDUCTOR |
1,148 | - |
|
Datasheet | WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 4.7 µH | ±20% | 5.5 A | 5.4A | Shielded | 34.5mOhm Max | - | 18.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.213" W (5.40mm x 5.40mm) | 0.122" (3.10mm) |
|
|
74456025IND CHOKE 2.5UH 100KHZ |
1,133 | - |
|
Datasheet | WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.5 µH | ±20% | 5.8 A | 10A | Unshielded | 12mOhm Max | - | 65MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.209" (5.30mm) |
|

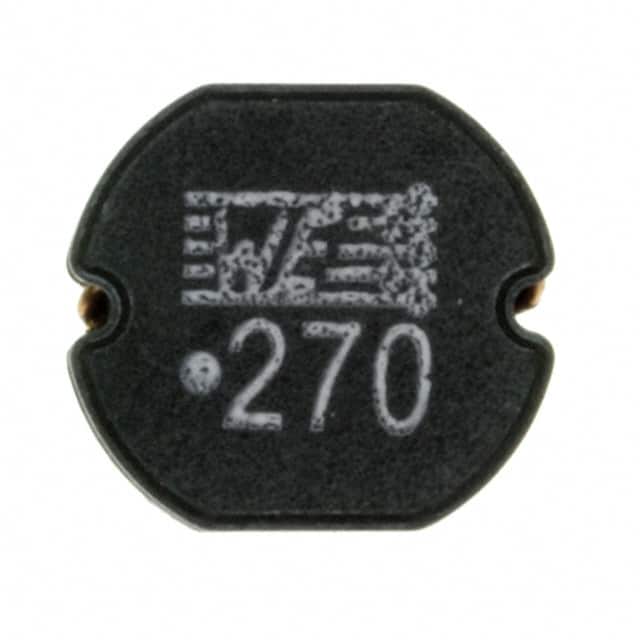

744776127FIXED IND 27UH 1.95A 110MOHM SMD |
951 | - |
|
Datasheet | WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 1.95 A | 1.98A | Unshielded | 110mOhm Max | - | 15MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.232" (5.90mm) |
|
|
78438367022WE-MAIA SMT POWER INDUCTOR |
949 | - |
|
Datasheet | WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 2.2 µH | ±20% | 7.5 A | 7.5A | Shielded | 16.1mOhm Max | - | 28MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.213" W (5.40mm x 5.40mm) | 0.122" (3.10mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
