Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
784771100FIXED IND 10UH 5A 26.5 MOHM SMD |
915 | - |
|
Datasheet | WE-PDA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 10 µH | ±20% | 5 A | 5.25A | Shielded | 26.5mOhm Max | - | 22.3MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1260 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.248" (6.30mm) |
|

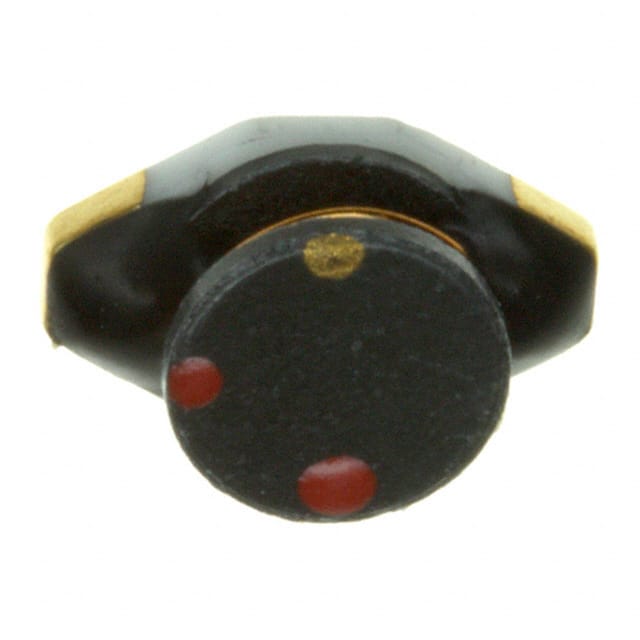

74455022FIXED IND 2.2UH 2.4A 70 MOHM SMD |
849 | - |
|
Datasheet | WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 2.4 A | 2.3A | Unshielded | 70mOhm Max | - | 50MHz | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|

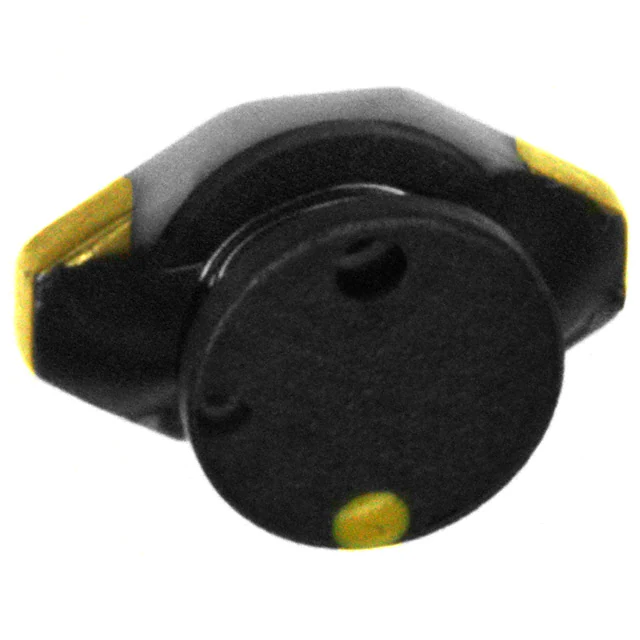

74455147FIXED IND 47UH 500MA 640MOHM SMD |
835 | - |
|
Datasheet | WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 500 mA | 500mA | Unshielded | 640mOhm Max | - | 12MHz | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|

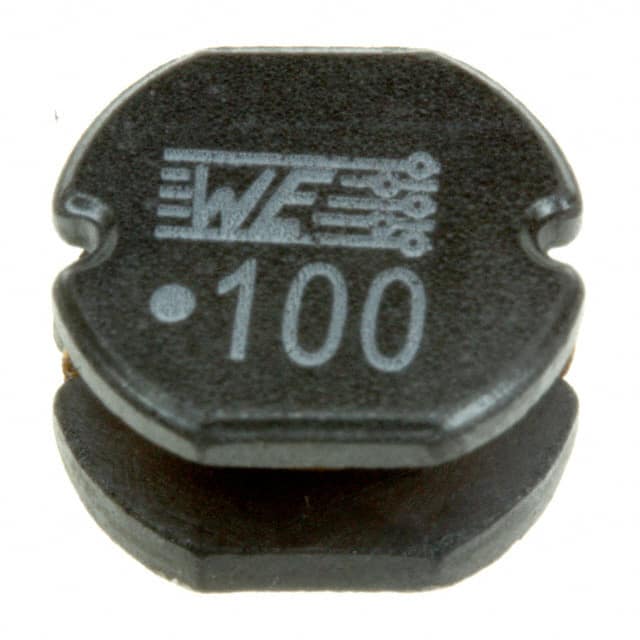

74477610FIXED IND 10UH 2.98A 60 MOHM SMD |
637 | - |
|
Datasheet | WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2.98 A | 3.24A | Unshielded | 60mOhm Max | - | 24MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.232" (5.90mm) |
|
|
784771047FIXED IND 4.7UH 6.2A 17.5MOHM SM |
565 | - |
|
Datasheet | WE-PDA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 4.7 µH | ±20% | 6.2 A | 8A | Shielded | 17.5mOhm Max | - | 49.8MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1260 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.248" (6.30mm) |
|
744776233FIXED IND 330UH 520MA 1.15OHM SM |
489 | - |
|
Datasheet | WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 520 mA | 590mA | Unshielded | 1.15Ohm Max | - | 4.1MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.232" (5.90mm) |
|
74455033FIXED IND 3.3UH 2A 80 MOHM SMD |
478 | - |
|
Datasheet | WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 2 A | 2A | Unshielded | 80mOhm Max | - | 39MHz | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|

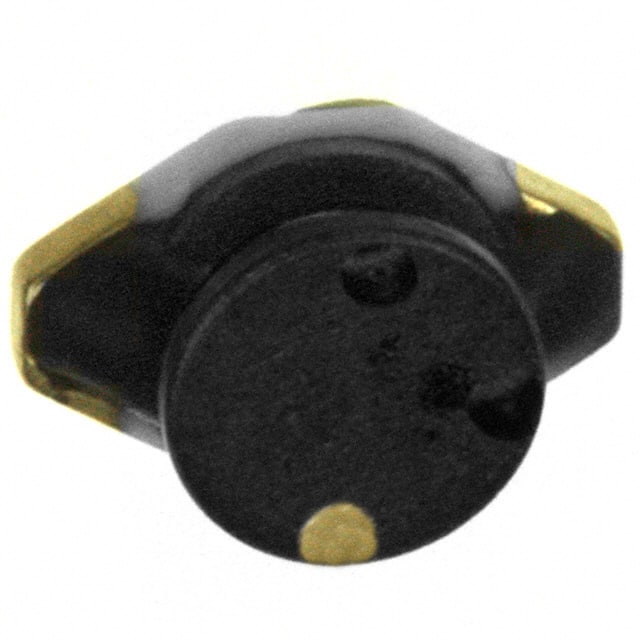

74455015FIXED IND 1.5UH 2.8A 50 MOHM SMD |
477 | - |
|
Datasheet | WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 2.8 A | 2.6A | Unshielded | 50mOhm Max | - | 62MHz | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
74458147FIXED IND 47UH 2.6A 86 MOHM SMD |
422 | - |
|
Datasheet | WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 2.6 A | 4.5A | Unshielded | 86mOhm Max | - | 8.4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.280" (7.11mm) |
|
78438367033WE-MAIA SMT POWER INDUCTOR |
379 | - |
|
Datasheet | WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 3.3 µH | ±20% | 6.2 A | 7.3A | Shielded | 23mOhm Max | - | 22MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.213" W (5.40mm x 5.40mm) | 0.122" (3.10mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
