Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7843322000WE-CHSA SMT HIGH CURRENT INDUCTO |
1,314 | - |
|
Datasheet | WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | - | - | 20 µH | ±20% | 5.4 A | 7A | Shielded | 43.1mOhm Max | - | 19MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.474" (12.05mm) |
|
744323120FIXED IND 1.2UH 12A 6.6 MOHM SMD |
3,079 | - |
|
Datasheet | WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.2 µH | ±20% | 12 A | 15A | Shielded | 6.6mOhm | - | 59MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 1030 | 0.417" L x 0.417" W (10.60mm x 10.60mm) | 0.122" (3.10mm) |
|

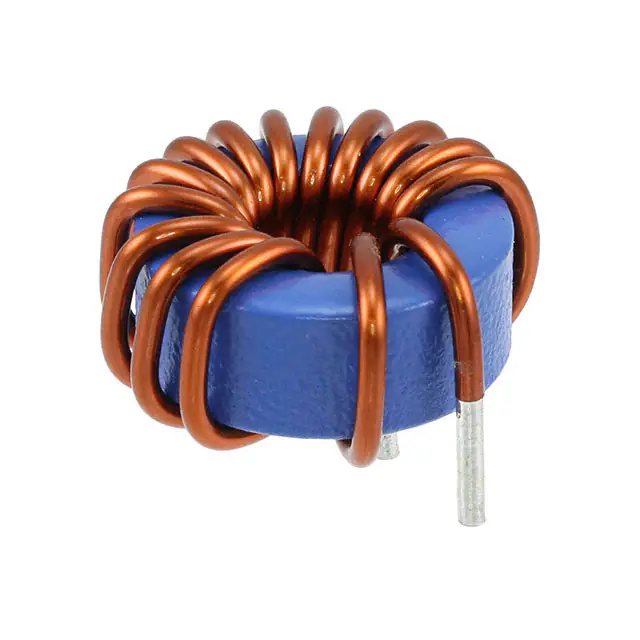

S14100034FIXED IND 22UH 18A 4.5 MOHM TH |
2,596 | - |
|
Datasheet | WE-FI | Radial, Horizontal (Open) | Tray | Active | Toroidal | Ferrite | 22 µH | ±20% | 18 A | - | Unshielded | 4.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.378" Dia (35.00mm) | 0.689" (17.50mm) |
|

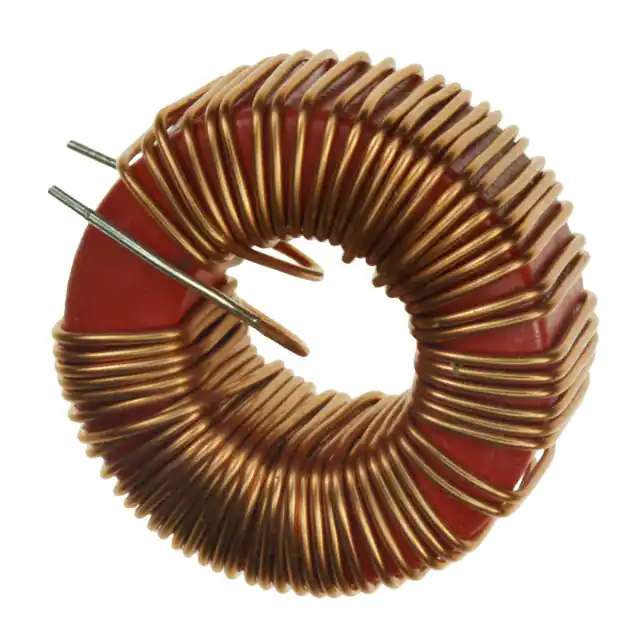

744136FIXED IND 346UH 3.8A 140 MOHM TH |
3,220 | - |
|
Datasheet | WE-SI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 346 µH | ±20% | 3.8 A | 1.5A | Unshielded | 140mOhm Max | - | 3.3MHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 1.220" Dia x 0.591" W (31.00mm x 15.00mm) | - |
|
744137FIXED IND 630UH 3.1A 175 MOHM TH |
1,446 | - |
|
Datasheet | WE-SI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 630 µH | ±20% | 3.1 A | 1A | Unshielded | 175mOhm Max | - | 1.5MHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 1.220" Dia x 0.591" W (31.00mm x 15.00mm) | - |
|
|
744118FIXED IND 600UH 2.2A 330 MOHM TH |
3,167 | - |
|
Datasheet | WE-SI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 600 µH | ±20% | 2.2 A | 1.1A | Unshielded | 330mOhm Max | - | 1.3MHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 1.181" Dia x 0.551" W (30.00mm x 14.00mm) | - |
|
7443782012100FIXED IND 10UH 20.6A 5 MOHM TH |
2,196 | - |
|
Datasheet | WE-HCFT | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 10 µH | ±20% | 20.6 A | 20.6A | Shielded | 5mOhm Max | - | 17MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.866" L x 0.669" W (22.00mm x 17.00mm) | 0.531" (13.50mm) |
|

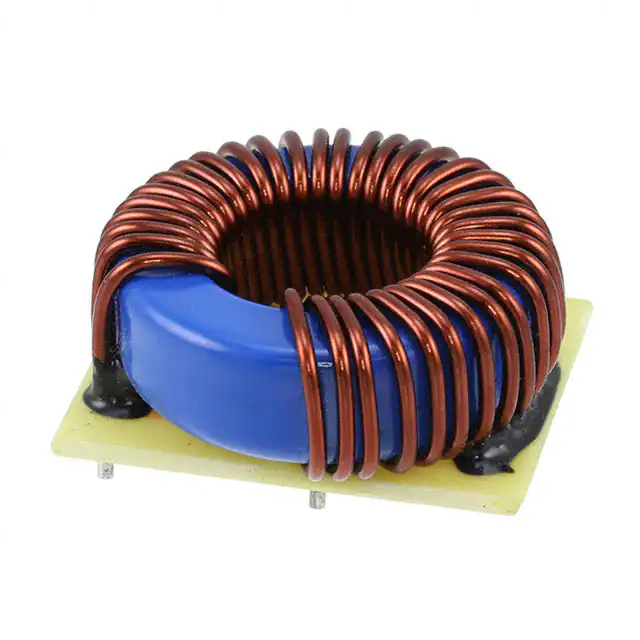

S14100032FIXED IND 150UH 10A 21 MOHM TH |
3,467 | - |
|
Datasheet | WE-LCB | Radial, Horizontal (Open) | Tray | Active | Toroidal | Iron Powder | 150 µH | ±20% | 10 A | - | Unshielded | 21mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.516" L x 1.496" W (38.50mm x 38.00mm) | 0.709" (18.00mm) |
|
7444013119220FIXED IND 22UH 10A 5.3 MOHM TH |
3,904 | - |
|
Datasheet | WE-HIDA | Nonstandard | Tray | Active | - | - | 22 µH | ±20% | 10 A | 33A | Unshielded | 5.3mOhm | - | 9MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.220" L x 0.748" W (31.00mm x 19.00mm) | 1.378" (35.00mm) |
|
|
7444013119082FIXED IND 8.2UH 19A 2.5 MOHM TH |
2,825 | - |
|
Datasheet | WE-HIDA | Nonstandard | Tray | Active | - | - | 8.2 µH | ±20% | 19 A | 52A | Unshielded | 2.5mOhm | - | 16MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.220" L x 0.748" W (31.00mm x 19.00mm) | 1.378" (35.00mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
