Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744153FIXED IND 137UH 7A 50 MOHM TH |
1,551 | - |
|
Datasheet | WE-SI | Radial | Bulk | Active | Toroidal | Iron Powder | 137 µH | ±20% | 7 A | 2A | Unshielded | 50mOhm Max | - | 6.4MHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 1.260" Dia x 0.610" W (32.00mm x 15.50mm) | - |
|
744156FIXED IND 380UH 6.2A 70 MOHM TH |
3,106 | - |
|
Datasheet | WE-SI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 380 µH | ±20% | 6.2 A | 2A | Unshielded | 70mOhm Max | - | 1.5MHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 1.732" Dia x 0.610" W (44.00mm x 15.50mm) | - |
|
|
744155FIXED IND 220UH 7.1A 60 MOHM TH |
1,460 | - |
|
Datasheet | WE-SI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 220 µH | ±20% | 7.1 A | 2A | Unshielded | 60mOhm Max | - | 4.7MHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 1.693" Dia x 0.591" W (43.00mm x 15.00mm) | - |
|
74436411500FIXED IND 15UH 36A 1.441MOHM SMD |
3,083 | - |
|
Datasheet | WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 15 µH | ±15% | 36 A | 14.3A | Shielded | 1.441mOhm Max | - | 10.73MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2815 | 1.102" L x 0.764" W (28.00mm x 19.40mm) | 0.606" (15.40mm) |
|
|
744154FIXED IND 172UH 6.5A 55 MOHM TH |
3,994 | - |
|
Datasheet | WE-SI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 172 µH | ±20% | 6.5 A | 2A | Unshielded | 55mOhm Max | - | 3.1MHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 1.260" Dia x 0.610" W (32.00mm x 15.50mm) | - |
|

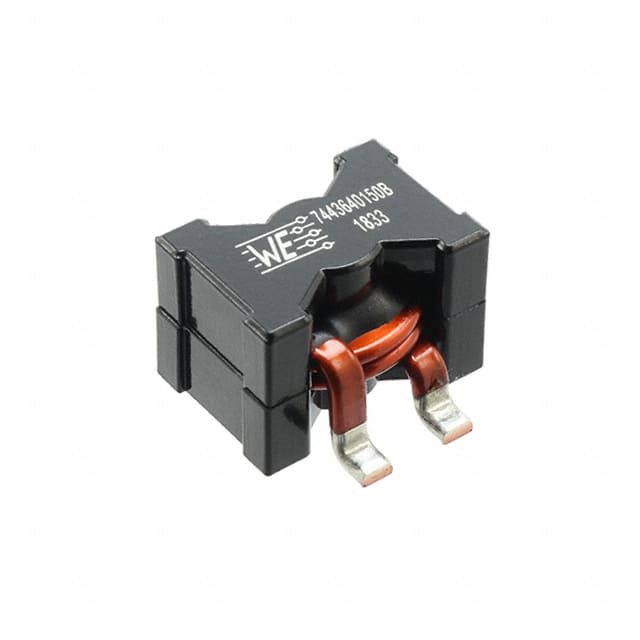

7443640150BFIXED IND 1.5UH 56A 0.484MOHM SM |
1,051 | - |
|
Datasheet | WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 1.5 µH | ±20% | 56 A | 91.8A | Shielded | 0.484mOhm Max | - | 37.6MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 1.102" L x 0.764" W (28.00mm x 19.40mm) | 0.728" (18.50mm) |
|
7443783533220FIXED IND 22UH 23.2A 8.8 MOHM TH |
2,106 | - |
|
Datasheet | WE-HCFT | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 22 µH | ±20% | 23.2 A | 49.4A | Shielded | 8.8mOhm Max | - | 8.15MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.417" L x 1.358" W (36.00mm x 34.50mm) | 1.378" (35.00mm) |
|
7447840075FIXED IND 7.5NH 300MA 310MOHM SM |
4,394 | - |
|
Datasheet | WE-MK | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 7.5 nH | ±5% | 300 mA | - | Unshielded | 310mOhm Max | 8 @ 100MHz | 4.2GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
7847806101WE-MCI MULTILAYER CERAMIC SMD IN |
1,959 | - |
|
Datasheet | WE-MCI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 100 nH | ±5% | 300 mA | - | Unshielded | 1Ohm Max | 12 @ 100MHz | 600MHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
7847805220WE-MCI MULTILAYER CERAMIC SMD IN |
1,828 | - |
|
Datasheet | WE-MCI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 2.2 nH | ±0.3nH | 300 mA | - | Unshielded | 100mOhm Max | 8 @ 100MHz | 6GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
